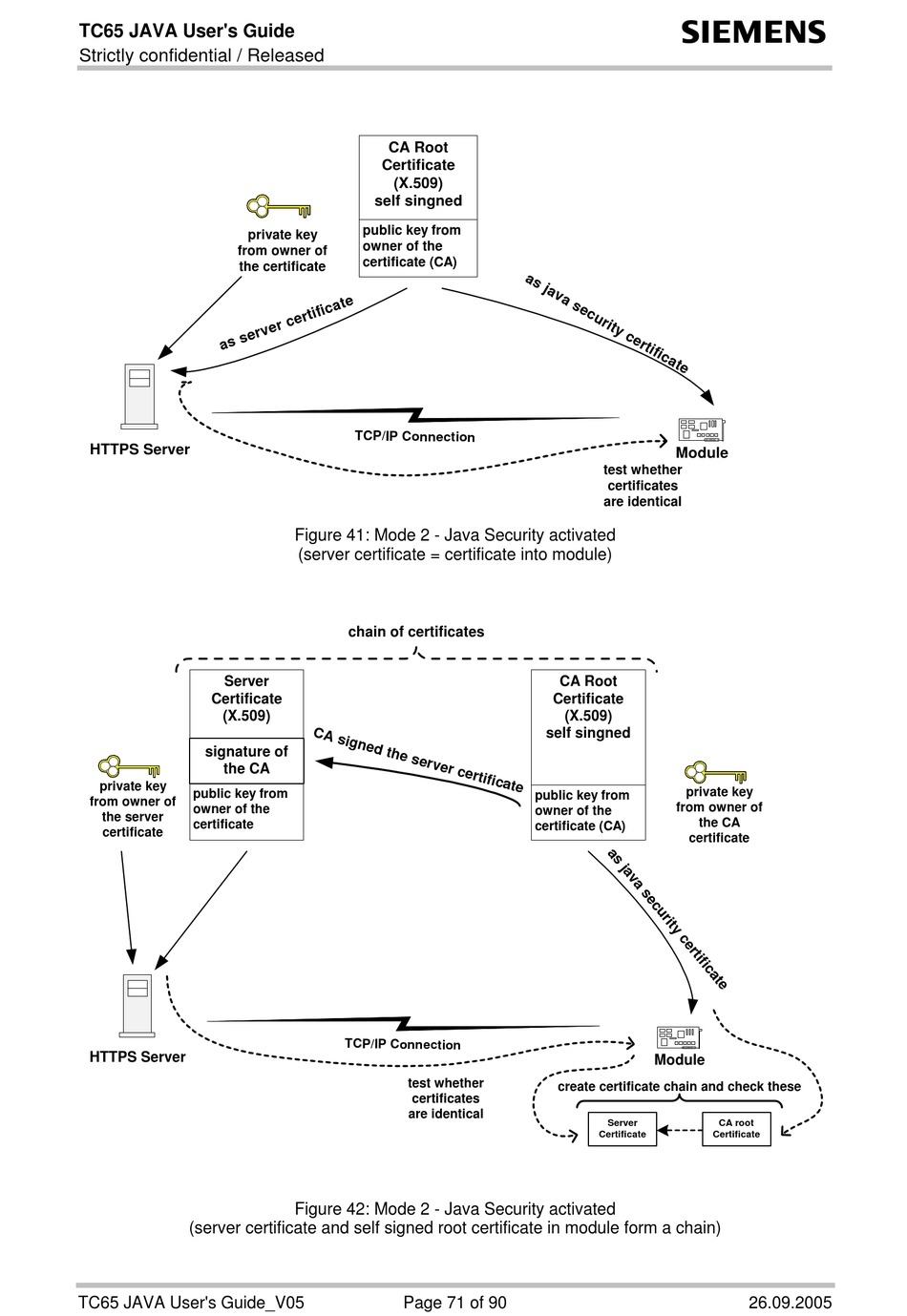

Figure 41: Mode 2 - Java Security Activated (Server Certificate = Certificate Into Module) - Siemens Java TC65 User Manual

TC65 JAVA User's Guide
Strictly confidential / Released
private key
from owner of
the certificate
HTTPS Server
Server
Certificate
(X.509)
signature of
the CA
private key
public key from
from owner of
owner of the
the server
certificate
certificate
HTTPS Server
(server certificate and self signed root certificate in module form a chain)
TC65 JAVA User's Guide_V05
CA Root
Certificate
(X.509)
self singned
public key from
owner of the
certificate (CA)
Figure 41: Mode 2 - Java Security activated
(server certificate = certificate into module)
chain of certificates
test whether
certificates
are identical
Figure 42: Mode 2 - Java Security activated
Page 71 of 90
s
Module
test whether
certificates
are identical
CA Root
Certificate
(X.509)
self singned
private key
public key from
from owner of
owner of the
the CA
certificate (CA)
certificate
Module
create certificate chain and check these
Server
Certificate
CA root
Certificate
26.09.2005
