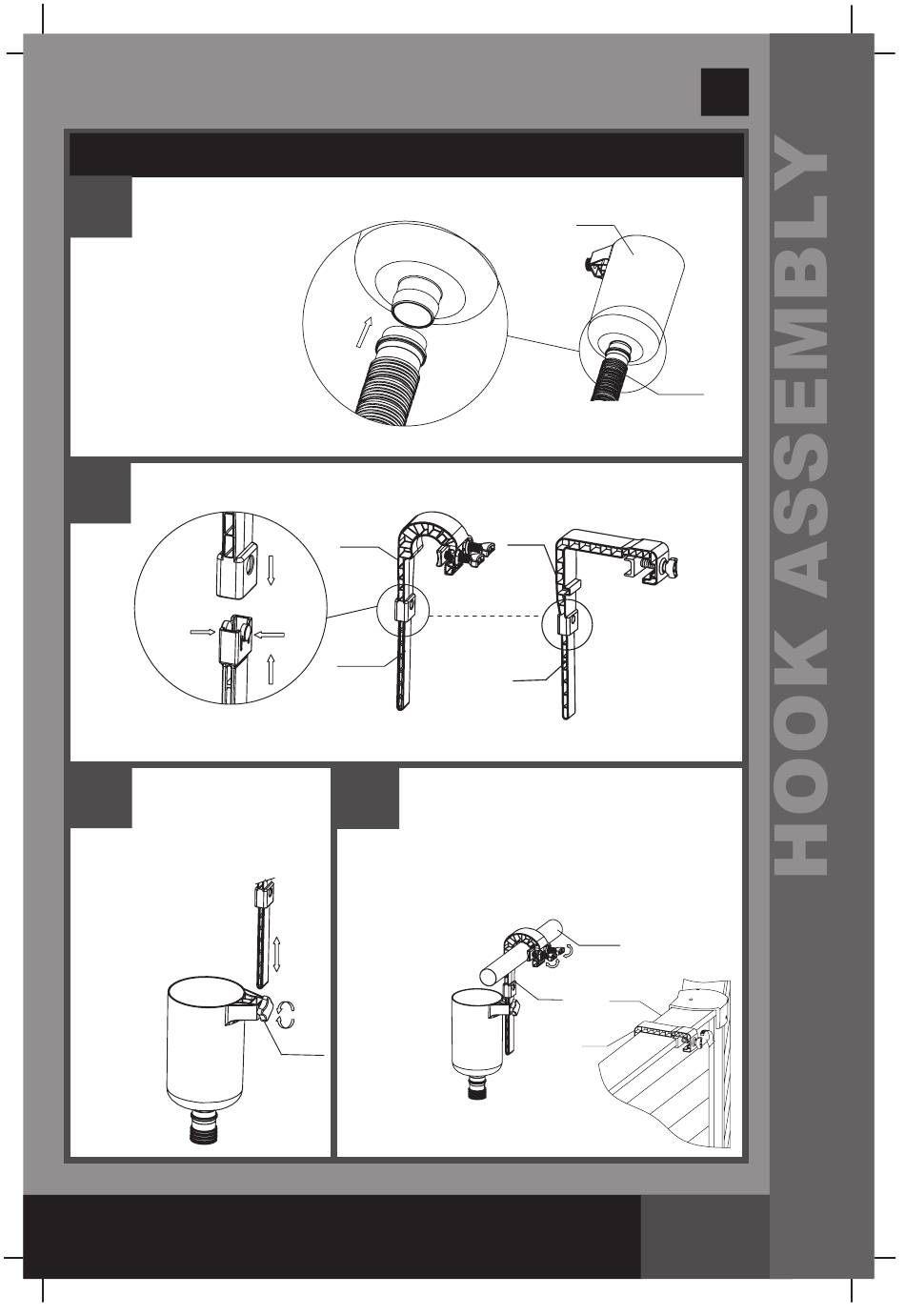

HOOK ASSEMBLY FOR METAL FRAME POOLS AND SEQUOIA SPIRIT
5
Connect the Skimmer
Hose (10) to the
Skimmer (4)
bottom connector.
6
Assemble the hook as shown.
Press
7
Loosen the Skimmer
Screw (5), attach the
assembled hook and hand
tighten the Screw.
NOTE: Do not over
tighten or use tools
such as pliers.
S AVE THESE INSTRUCTIONS
(80PO) FLOATING SURFACE SKIMMER ENGLISH SIZE: 4.875" X 7.25" PANTONE 295U 05/23/2012
9
Insert
Press
6
Insert
METAL FRAME POOL
8
Place the whole assembled hook unit
over the top of a FRAME Pool Top
Beam near the water inlet connector (lower
hose connection). Adjust the hook by
adjusting the two dove-tail screws, to be tight
on the top beam.
Ensure the
hook is
Slide
securely
tightened
over the
pool top
5
beam.
English
® POOL SETS
4
10
12
6
SEQUOIA SPIRIT ® POOL SET
Top Beam
9
Top Board
12
