Hook Assembly For Easy-Set ® Pools With Inflatable Top Rings - Intex 80PO Owner's Manual

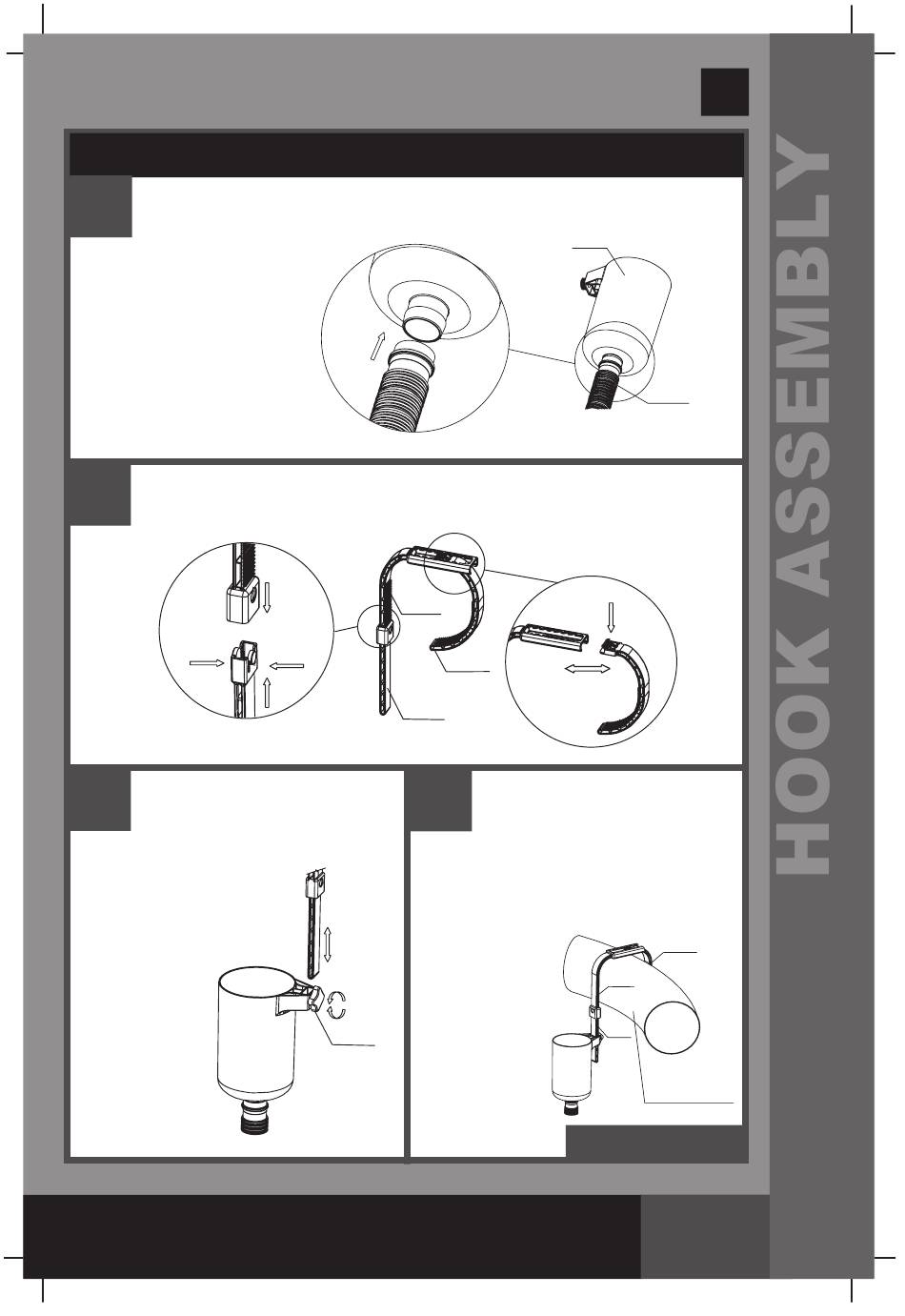

HOOK ASSEMBLY FOR EASY SET
1
NOTE: If you are using METAL FRAME POOL or SEQUOIA SPIRIT
POOL SET, go to Step #5.
Connect the Skimmer
Hose (10) to the
Skimmer (4)
bottom connector.
2
Assemble the hook as shown. Adjust the opening of the Hook (7) by
pressing and sliding the Arm (8) at the same time.
Press
3
Loosen the Skimmer
Screw (5), attach the
assembled hook and hand
tighten the Screw.
NOTE: Do not over
tighten or use tools
such as pliers.
S AVE THESE INSTRUCTIONS
(80PO) FLOATING SURFACE SKIMMER ENGLISH SIZE: 4.875" X 7.25" PANTONE 295U 05/23/2012
® POOLS WITH INFLATABLE TOP RINGS
Insert
7
Press
Insert
6
4
Place the whole assembled
hook unit over the top of an
EASY-SET ® Pool Top Ring near the
water inlet connector (lower hose
connection). Adjust the hook (8) to
be snug around the
inflated ring
Slide
(see step #2).
Ensure
the hook is
securely
5
tightened
over the
pool.
English
4
Press
8
Slide
7
6
SKIP TO STEP 9
80PO
®
10
8
Inflatable
Top Ring
Page 5
