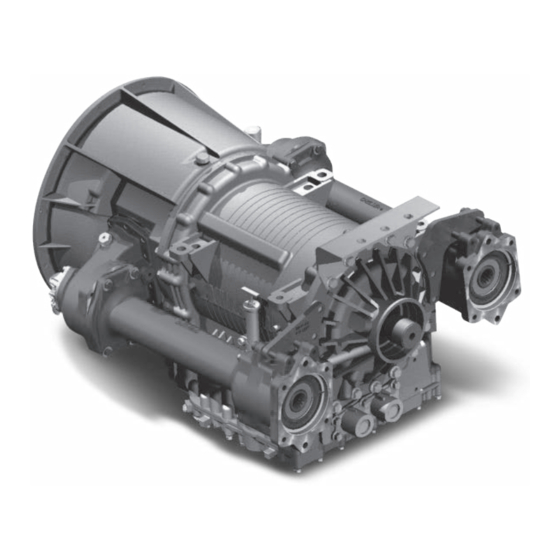

Power Take-Offs Owner's Manual
890, 892, 897, 899 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 892 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Parker 892 Series

Summary of Contents for Parker 892 Series

  • Page 1 Effective: May 2018 Supercedes: HY25-1890-M1/US January 2018 Power Take-Offs Owner’s Manual 890, 892, 897, 899 Series...
  • Page 2 Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.

  • Page 3: Table Of Contents

    Elec/Hyd Shift Option K (12V) & L (24V) – w/ EOC 890/892 Series (SK-475 Rev B) .......18 Remote Elec/Hyd Shift Option G (12V) & H (24V) – w/o EOC 890/892 Series (SK-503 Rev A) ..19 Shift/Lube Hose Installation 890/892 Series (SK-504) ..............20...
  • Page 4 Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 5: General Information Foreword

    ■ Always match the Power Take-Off’s specified output capabilities to the requirements of the equipment to be powered. ■ Never use a Power Take-Off whose range of speed could exceed the maximum. This symbol warns of possible personal injury. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 6: Safety Information

    PTO Always install the safety information decals according to the instructions provided. Place the owner’s manual in the vehicle glove compartment. This symbol warns of possible personal injury. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 7: Chelsea Pto Safety Label Instructions

    For example, try to place this card on top of whatever may be in the glove box. If you require labels, please order part number 328946X at no charge from your local Chelsea Warehouse or send request direct to: Parker Hannifin Corporation Chelsea Products Division 8225 Hacks Cross Road Olive Branch, MS 38654...

  • Page 8: Direct Mount Pump Requirements

    Example 2: 120 lbs x 17.9" = 2148 lbs-in (no supplemental bracket required) Example 3: 90 lbs x 25" = 2250 lbs-in (supplemental bracket required) CG = Center of Gravity Supplemental bracket is to be provided and designed by the customer/installer. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 9: Function Of Auxiliary Power Shafts

    Operating Angle Operating Angle 3000 5° 50' 1500 11° 30' 2500 7° 00' 1000 11° 30' 2000 8° 40' 11° 30' Above based on angular acceleration of 100 RAD/SEC Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 10: Spicer ® Universal Joint Engineering Data

    60" 42" 35" 30" 27" .812" 62" 44" 36" 31" 28" .875" 65" 46" 37" 32" 29" 1.000" 69" 49" 40" 35" 31" 1.250" 77" 55" 45" 39" 35" Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 11: 890 Family Overview

    890/897K 5 890/897P 5 4700/4800 series ALL-19 Side/Top Openings 892/899H 5 892/899U 5 ALL-19C Side/Top Openings 892/899C 3 892/899U 5 892/899J 3 ALL-19R Side/Top Openings 892/899K 5 892/899P 5 Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 12: Pto Pre Installation

    (890 Series Only) (2) into the port in the valve cap as shown and torque to 120-140 lbs-in [14-16 Nm] (Fig. 3, 3a, & 3b). NOTe: See Hose Installation Sketch SK-504 890/892 Series (890/892 Series) on page 20 or SK492/SK-599 (897/899 Fig. 3 Series) on...

  • Page 13: Pto Installation

    5. Begin by draining the oil from the transmission. Use caution, since the oil may be hot (Fig. 5 ). Fig. 5 6. Remove the PTO aperture plate with a 15mm socket (Fig. 6). Fig. 6 Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...
  • Page 14 PTO. Fig. 9 10. Install the remaining capscrews. Torque all to 40-50 lbs-ft (54-68 Nm or 5.5-6.9 Kg.m) (Fig. 10). 890/892 Series Fig. 10 Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...
  • Page 15 PTO Installation (Continued) 11. Securely attach the high pressure line to the PTO valve fitting (1), torque to 11-12 lbs-ft [15-16 Nm] (Fig. 11, 11a, & 11b). NOTe: See SK-504 (890/892 Series) on page 20 SK492/SK-599 (897/899 Series) on page 21 complete plumbing installation of the transmission pressure hose and the wet spline hose.
  • Page 16 For customers that would like an extra level of protection from pump seal leaks, there are double sealed pumps available from Parker to satisfy your needs. Please verify your requirements with your Parker/Chelsea PTO and Pump experts.

  • Page 17: Installation Mounting Kit Instructions

    175 to 255 PSI .438"-20UNF-2A [618.0] Both Sides 175 to 255 PSI Both Sides Allison10-Bolt Pad 13.61" Top/Left [345.7] Allison10-Bolt Pad Main Pressure Port 97-Teeth .438"-20UNF-2A Left Side Only Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 18: Bracket Installation For 890/892 And 897/899 Series

    380075 (3) w/RETARDER L = Left R = Right T = Top WeT SPLINe HOSe KIT SeRIeS elbow Orifice Hose Number 329899-1X 500841 379964 329130-11X 329899-2X 500841 379964 329075-2X Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 19: Wet Spline Output Cover Plate

    Capscrew XS, CS ....................4 or 378433-10 Capscrew XK, AF, AZ, CK, CF, CZ ..............4 or 379579-4 Capscrew XY, CY ....................4 or 500403-7 Hex Capscrew DA ..................... Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 20: Installation Sketches

    10-Bolt Extended Shaft PTOs Installation Sketches Outputs XV, AB, AC (SK-493) 890/897 & 892/899 Series O-Ring Install O-Ring into grove in Flange Capscrew Torque to 70-80 lbs-ft [95-108 Nm] Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 21: Elec/Hyd Shift Option B (12V) & D (24V) - W/O Eoc 890/892 Series (Sk-459 Rev C)

    Owner’s Manual Bulletin HY25-1890-M1/US Installation sketches 10-Bolt Extended Shaft PTOs elec/Hyd shift Option B (12V) & D (24V) – w/o eOC 890/892 series Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 22: Elec/Hyd Shift Option K (12V) & L (24V) - W/ Eoc 890/892 Series (Sk-475 Rev B)

    Owner’s Manual Bulletin HY25-1890-M1/US 10-Bolt Extended Shaft PTOs Installation Sketches elec/Hyd Shift Option K (12V) & L (24V) – w/ eOC 890/892 Series Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 23: Remote Elec/Hyd Shift Option G (12V) & H (24V) - W/O Eoc 890/892 Series (Sk-503 Rev A)

    Owner’s Manual Bulletin HY25-1890-M1/US 10-Bolt Extended Shaft PTOs Installation Sketches Remote elec/Hyd Shift Option G (12V) & H (24V) – w/o eOC 890/892 Series Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 24: Shift/Lube Hose Installation 890/892 Series (Sk-504)

    Owner’s Manual Bulletin HY25-1890-M1/US Installation Sketches 10-Bolt Extended Shaft PTOs Shift/Lube Hose Installation (SK-504) 890/892 Series 379659 379964 Adapter w/Restriction Torque to 8-12 lbs-ft 500841-1 90° Elbow Torque to 8-12 lbs-ft WARNING: Restriction Fitting Required to Prevent Damage to PTO, Transmission and Hydraulic Pump Transmission Pressure Hose Included in Hose &...

  • Page 25: Lube Hose Installation 897/899 Series (Sk-492 Rev C)

    379486 90° Elbow Install in Transmission High Pressure Port MD: Left or Right Side HD: Left Side Only Torque Nut to 13-15 lbs-ft This symbol warns of possible personal injury. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 26: Pto Shifting Procedure & Precautions

    ■ Driven equipment must be left in the disengaged position when not in operation. ■ Driven equipment must not be operated until the vehicle is allowed to warm up. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 27: Pto Maintenance

    Perform maintenance as required. Warranty: Failure to comply entirely with the provisions set forth in the appropriate Owner’s Manual will result in voiding of ALL Warranty consideration. Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...
  • Page 28 Notes Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...
  • Page 29 Notes Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...
  • Page 30 Notes Parker Hannifin Corporation Chelsea Products Division Olive Branch, MS 38654 USA...

  • Page 31: Offer Of Sale

    Offer of Sale The items described in this document and other documents and descriptions provided by Parker Hannifin Corporation, its subsidiaries and its authorized distributors (“Seller”) are hereby offered for sale at prices to be established by Seller. This offer and its acceptance by any customer (“Buyer”) shall be governed by all of the following Terms and Conditions.
  • Page 32 Tel: +30 210 933 6450 Tel: +27 (0)11 961 0700 parker.greece@parker.com parker.southafrica@parker.com HU – Hungary, Budaoers Tel: +36 23 885 470 parker.hungary@parker.com Parker Hannifin Corporation Chelsea Products Division 8225 Hacks Cross Road Olive Branch, Mississippi 38654 USA www.parker.com/chelsea HW 5/18 3M...
