PolluFlow can be installed horizontally or vertically
(in rising or down pipes).
PolluFlow is delivered with the integrator mounted
on the flow meter. Depending on the flow meter's
installation position, the integrator can be turned
through steps of 90 degrees. Lift the red spring
catch at the bottom side of the casing using a
slotted screw driver and take the integrator from
the C-rail. Then turn the integrator to the required
position by transposing the C-rail and fasten it
again.
If required, the PolluFlow integrator can be
removed from the flow meter and mounted
separately at a suitable place. The connection
cable can be delivered optionally with a length of
1.5 m or 3 m. Precede as before in order to
remove the integrator. Then unscrew the C-rail
from the bottom and use it as a wall adapter.
Observe following
horizontal installation of meters of qp 15 and
more:
Both ultrasonic transducers inside of the
measuring tube have to be in horizontal
position. Therefore the PolluFlow has to be
installed with the integrator turned upwards
(see fig. 1).
Removed and
integrators have to be installed accordingly
(see fig. 2).

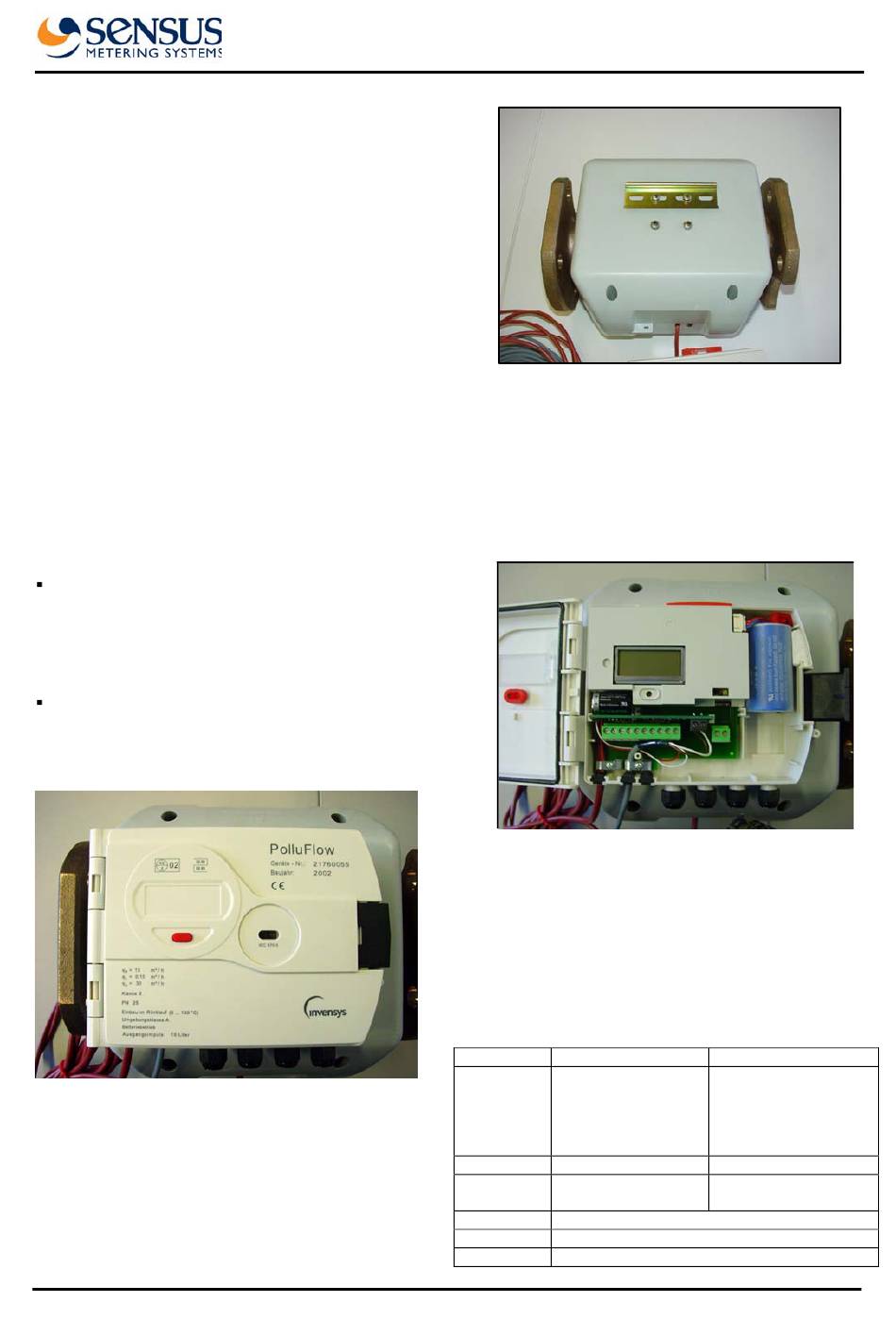

Fig. 1: PolluFlow – horizontally mounted
M H 7400 INT PolluFlow, page 2
special directions
separately mounted
Ultrasonic flow meter PolluFlow
Installation and Operating Instructions
PolluFlow – integrator removed
2.2Connection of the pulse transmission cable
Connect the enclosed two-wire pulse transmission
for cable to the two-pole terminal box in accordance
with fig.3.
Connection of pulse transmission cable

2.3 Specification of volumetric pulse

Pulser: open collector, physically separated
Left terminal:
Right terminal:
Standard mode
Pulse value qp 0,6 to 6:
qp 10 to 60: 10 liter
Closing time
Max. output
frequency
Bouncetime
U-Max.
I-Max.
Fig. 2:
Fig. 3:
18 (brown)
19 (white)
High-speed mode
1 liter qp 0,6:
qp 1,5 to 3,5: 0,1 Liter
qp 6 to 10: 0,25 Liter
qp 15 to 40:
qp 60:
125 ms 16 ms
4 Hz 32 Hz
none
28 V DC
30 mA
positive
negative
0,025 Liter
1 Liter
2,5 Liter
