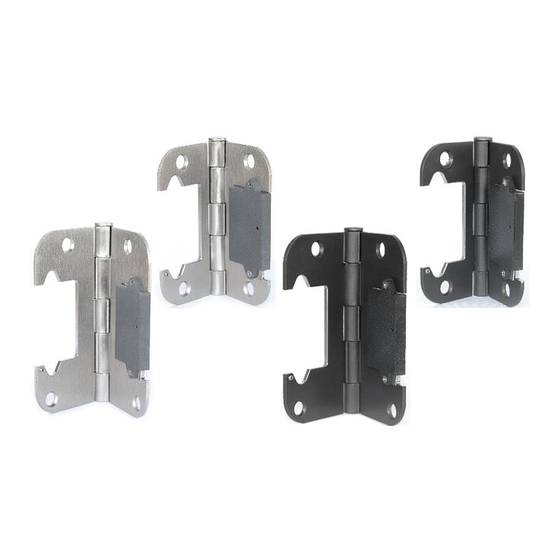

Nyce NCZ-3010 User Manual

USER'S MANUAL
Model # NCZ-3010
FCC ID: Y8R-Z30101

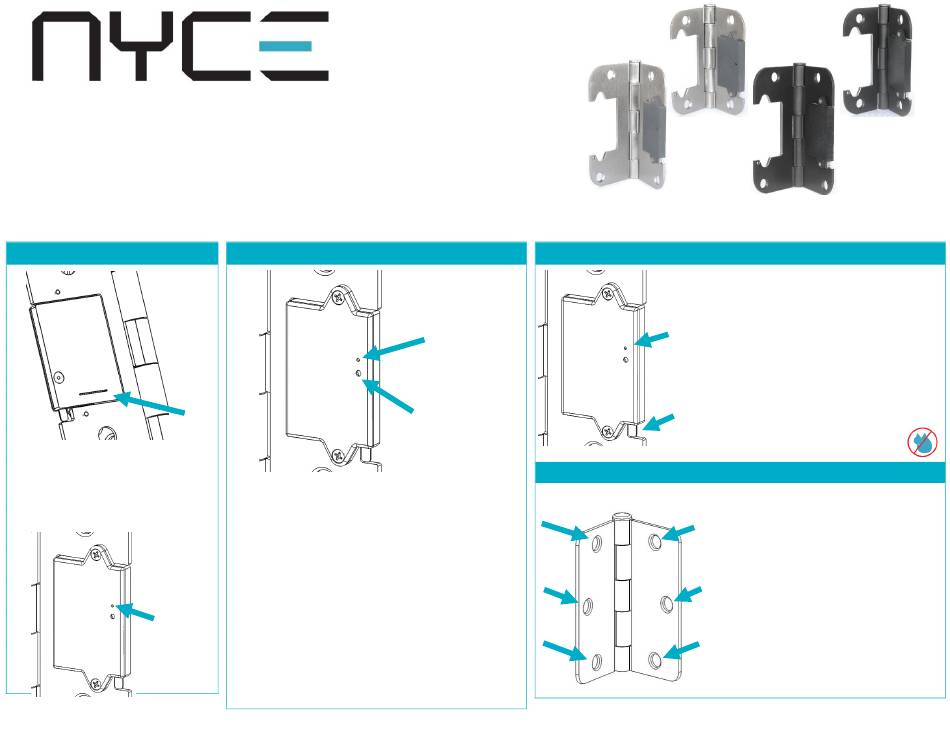

STEP 1: PULL BATTERY TAB

Pull the plastic tab from the back-
side slot in the Door Hinge Sensor's
wireless module. The LED Power Up
sequence should be visible on the
front-side of the wireless module.
LED
IC ID: 9488A-Z30101

STEP 2: JOIN THE NETWORK

USERS
Refer to the instructions on your system's computer
software, web portal or smart phone application for
the proper method to join and configure the Door
Hinge Sensor. The button may be pressed with the
end of the supplied hex key, paper clip or a pencil.
Do not use a sharp object like a tack or pin.
DEVELOPERS
Contact NYCE for our "ZigBee Device Messaging
Specification" document with details on how to
integrate the Door Hinge Sensor and other NYCE
products to your ZigBee compliant network.
LED
BUTTON

STEP 4: REMOVE THE EXISTING DOOR HINGE

STEP 3: TEST THE INSTALL LOCATION

Test the Sensor from desired location
before installation. Push and release
the Contact Lever gently and insure that
LED
the icon on your web portal or smart
phone application updates with a
"Closed" and "Open" status.
Installation on metal can reduce
transmission range. Ensure that the
LEVER
device is installed in a dry location away
from water, moisture, and rain.
For best aesthetics, install the Door Hinge
Sensor in the lowest door hinge position.
- If your existing hinge has been painted,
use a utility knife to score the edges of
the screws and the hinge body before
removal.
- Remove the existing screws from your
door hinge.
- To ensure that you do not damage your
door or door frame, gently remove the
existing hinge from its recesses on both
door edge and door frame.
