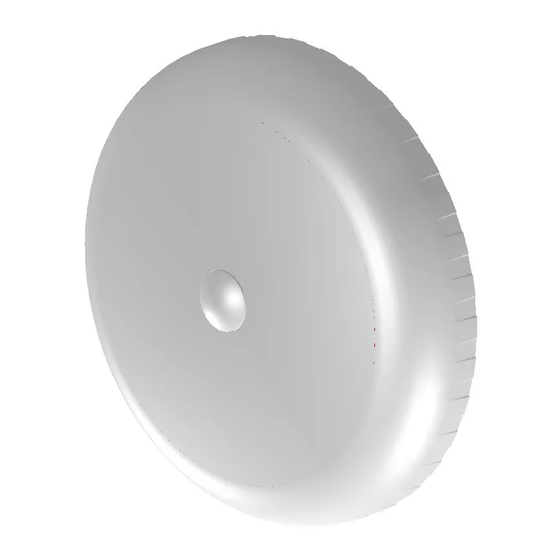

CEILING MOTION SENSOR
INSTALLATION GUIDE
STEP 1: INSTALL BATTERIES
Remove the Mounting Plate by rotating
the Housing counter-clockwise as
shown.
Install the two AAA batteries in the
Sensor Housing with polarity as shown.
STEP 2: JOIN THE NETWORK
BUTTON
USERS
Refer to the instructions on your system's computer software, web
portal or smart phone application for the proper method to join and
configure the Ceiling Motion Sensor. The button may be pressed with
the end of a paper clip or a pencil. Do not use a sharp object like a tack
or pin.
ECOSYSTEM DEVELOPERS
Contact NYCE for our "ZigBee Device Messaging Specification"
document with details on how to integrate the Ceiling Motion Sensor
and other NYCE products into your ZigBee compliant network.
STEP 3: TEST THE SENSOR
LED
BUTTON
Test the Ceiling Motion Sensor from the desired
location before permanently installing it by
pressing the button twice to check network
status.
Check that the Ceiling Motion Sensor's LED
blinks green three times to indicate it is joined
and is communicating with the system
controller.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nyce NCZ-3043
Summary of Contents for Nyce NCZ-3043

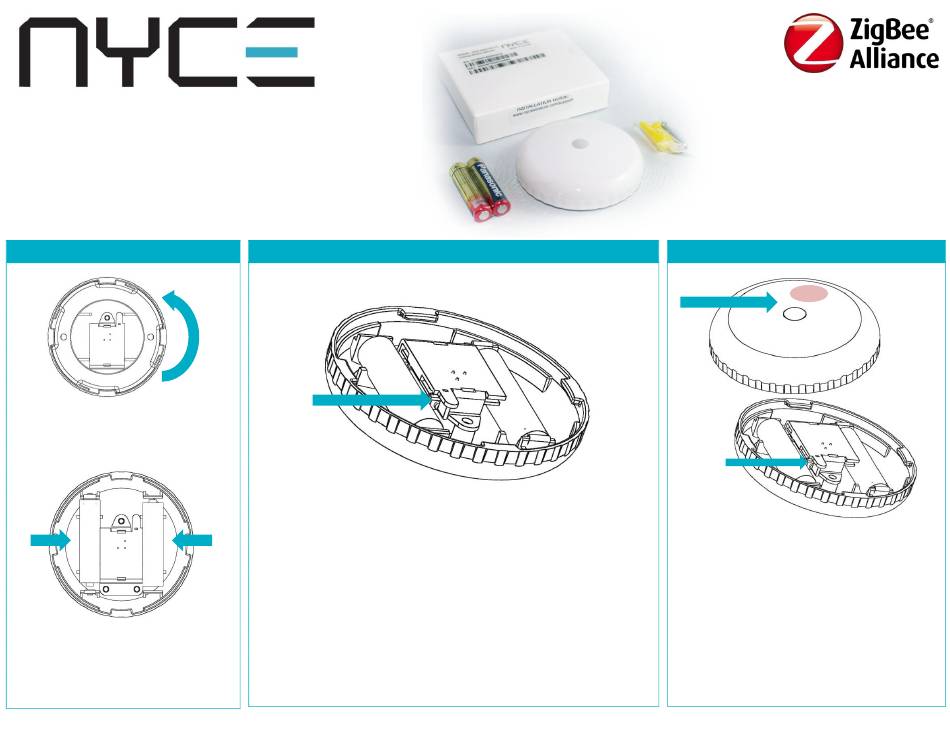

- Page 1 Ceiling Motion Sensor and is communicating with the system Install the two AAA batteries in the and other NYCE products into your ZigBee compliant network. controller. Sensor Housing with polarity as shown.
- Page 2 STEP 4: VERIFY DEVICE STEP 5: PLACEMENT GUIDELINES STEP 6: INSTALL THE SENSOR 45° Ceiling Height Coverage 8’ Radius 8’ 10’ 10’ Install the Mounting Plate on an overhead surface using Verify that the device is sensing motion. The the two #6 screws provided. Place the Sensor Housing sensor requires a 3 minute “warm-up”...
