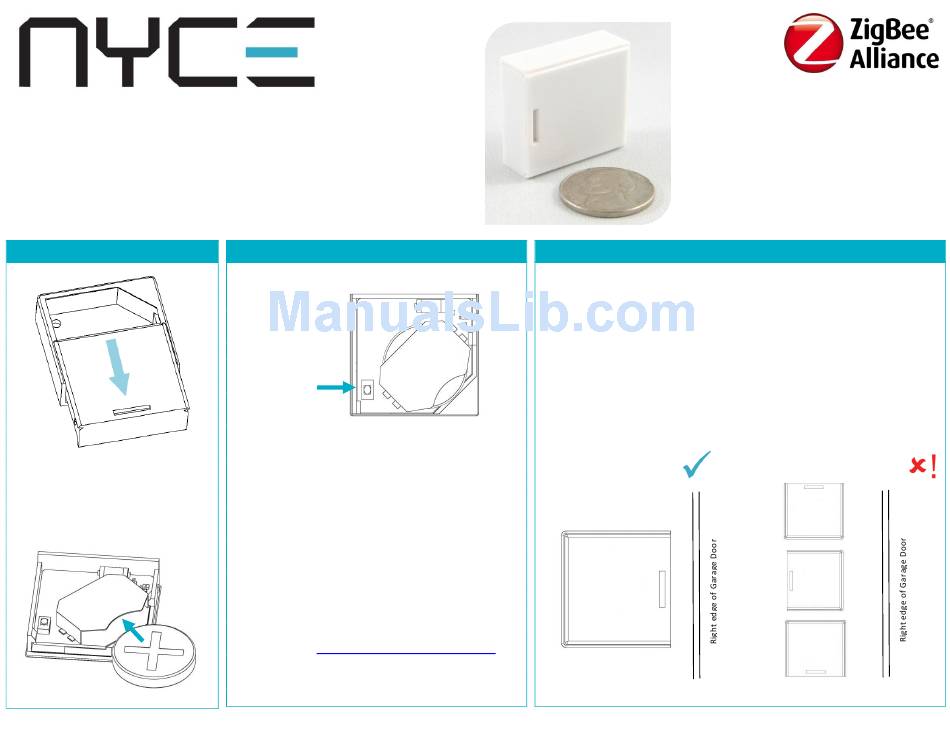

Nyce NCZ-3014-HA Installation Manual

GARAGE DOOR (TILT) SENSOR
INSTALLATION GUIDE

STEP 1: INSTALL BATTERY

Slide open the Garage Door
Sensor's top housing. Install the
CR2032 battery in the housing top
as shown below.

STEP 2: JOIN THE NETWORK

Button
Users:
Refer to the instructions on your web portal or
smart phone application to join and configure the
Garage Door (Tilt) Sensor.
Developers:
Refer to NYCE'S "ZigBee Device Messaging
Specification" document for details on how to join
the Garage Door (Tilt) Sensor to the ZigBee
network.
This document can be found on NYCE's Website
Support page: www.nycesensors.com/support/

STEP 3: PROPER DEVICE ORIENTATION

Mount the Garage Door Sensor on a horizontal pane of the garage door.
The Sensor should be mounted on the top pane (fully closed) or bottom
pane (fully open), depending on the desired operation. A pair of
sensors can be used on both bottom and top panes for full garage door
reporting, if desired.
Ensure that the Garage Door Sensor is oriented with the bar symbol
vertical, parallel to the edge of the garage door, as shown in the
diagram below on the left.
CORRECT ALIGNMENT
Garage Door Sensor
INCORRECT ALIGNMENT
