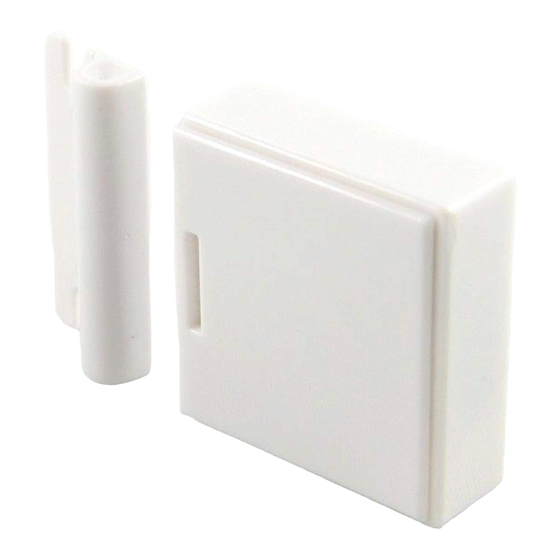

DOOR/WINDOW SENSOR
INSTALLATION GUIDE

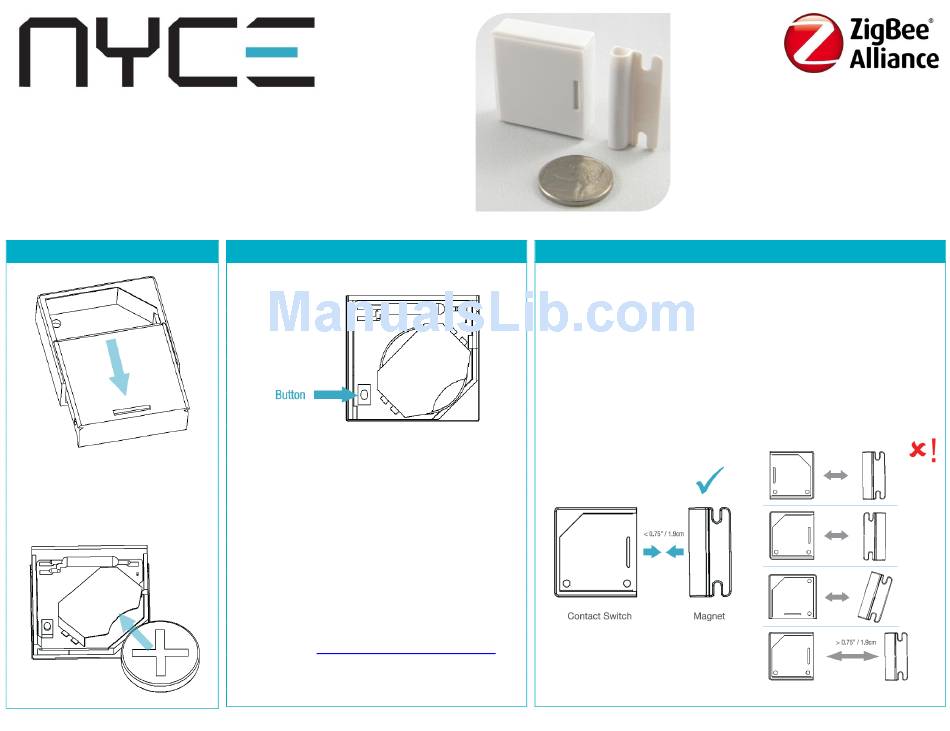

STEP 1: INSTALL BATTERY
Slide open the Door/Window
Sensor's top housing. Install the
CR2032 battery in the housing top
as shown below.
STEP 2: JOIN THE NETWORK
Users:
Refer to the instructions on your web portal or
smart phone application to join and configure the
Door/Window Sensor.
Developers:
Refer to NYCE'S "ZigBee Device Messaging
Specification" document for details on how to join
the Door/Window Sensor to the ZigBee network.
This document can be found on NYCE's Website
Support page:
www.nycesensors.com/support/
STEP 3: PROPER DEVICE ORIENTATION
Ensure that the Door/Window Sensor and the Magnet are facing each
other as shown in the diagram below on the left.
The Magnet and Sensor can be a maximum of 0.75" (1.9 cm) apart. If
aligned properly, you will be able to hear a 'click' when they approach.
Check that the icon on your web portal or smart phone application
updates with a "Closed" and "Open" icon as the magnet is moved to
and from the device.
CORRECT ALIGNMENT
INCORRECT ALIGNMENT
Advertisement
Table of Contents
Related Manuals for Nyce NCZ-3011-HA
Summary of Contents for Nyce NCZ-3011-HA
- Page 1 CR2032 battery in the housing top Door/Window Sensor. as shown below. Developers: Refer to NYCE’S “ZigBee Device Messaging Specification” document for details on how to join the Door/Window Sensor to the ZigBee network. This document can be found on NYCE’s Website Support page: www.nycesensors.com/support/...
- Page 2 STEP 4: INSTALL THE SENSOR HOUSING STEP 5: INSTALL THE MAGNET STEP 6: INSTALL THE SENSOR Using the methods shown below, install the Sensor bottom housing on a clean surface. OPTION 1: 2-SIDED TAPE OPTION 2: SCREWS Install the magnet in the proper orientation using 2-sided tape or screws.
