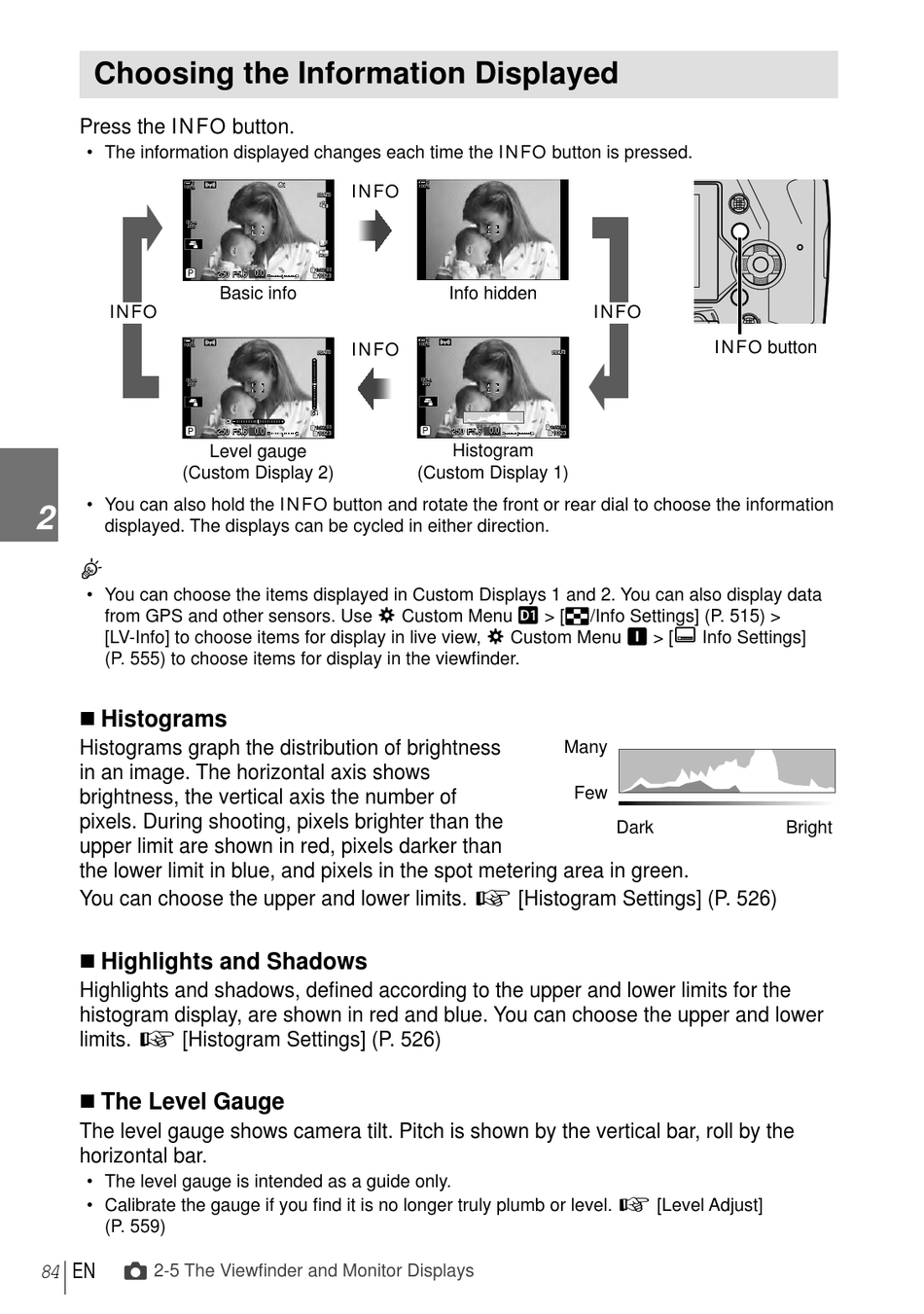

Choosing the Information Displayed

Press the INFO button.
• The information displayed changes each time the INFO button is pressed.
1
100
%
ISO-A
200
P
INFO
1
100
%
ISO-A
200
P
Level gauge
(Custom Display 2)
• You can also hold the INFO button and rotate the front or rear dial to choose the information
2
displayed. The displays can be cycled in either direction.
%
• You can choose the items displayed in Custom Displays 1 and 2. You can also display data
from GPS and other sensors. Use G Custom Menu P > [G/Info Settings] (P. 515) >
[LV-Info] to choose items for display in live view, G Custom Menu a > [V Info Settings]
(P. 555) to choose items for display in the viewfi nder.
 Histograms 
Histograms graph the distribution of brightness
in an image. The horizontal axis shows
brightness, the vertical axis the number of
pixels. During shooting, pixels brighter than the
upper limit are shown in red, pixels darker than
the lower limit in blue, and pixels in the spot metering area in green.
You can choose the upper and lower limits. g [Histogram Settings] (P. 526)
 Highlights and Shadows 
Highlights and shadows, defi ned according to the upper and lower limits for the
histogram display, are shown in red and blue. You can choose the upper and lower
limits. g [Histogram Settings] (P. 526)
 The Level Gauge 
The level gauge shows camera tilt. Pitch is shown by the vertical bar, roll by the
horizontal bar.
• The level gauge is intended as a guide only.
• Calibrate the gauge if you fi nd it is no longer truly plumb or level. g [Level Adjust]
(P. 559)
84 EN
K 2-5 The Viewfi nder and Monitor Displays
INFO
S-IS AUTO S-IS AUTO
YF YF
4K
30p 30p
1:02:03
250 F5.6 0.0
1023
Basic info
INFO
S-IS AUTO S-IS AUTO
1:02:03
250 F5.6 0.0
1023
1
100
%
Info hidden
1
100
%
S-IS AUTO S-IS AUTO
ISO-A
200
1:02:03
P
250 F5.6 0.0
1023
Histogram
(Custom Display 1)
Many
Few
INFO
INFO button
Dark Bright
