Operating instructions
Royal
Refrigerator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Royal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for V-ZUG Royal

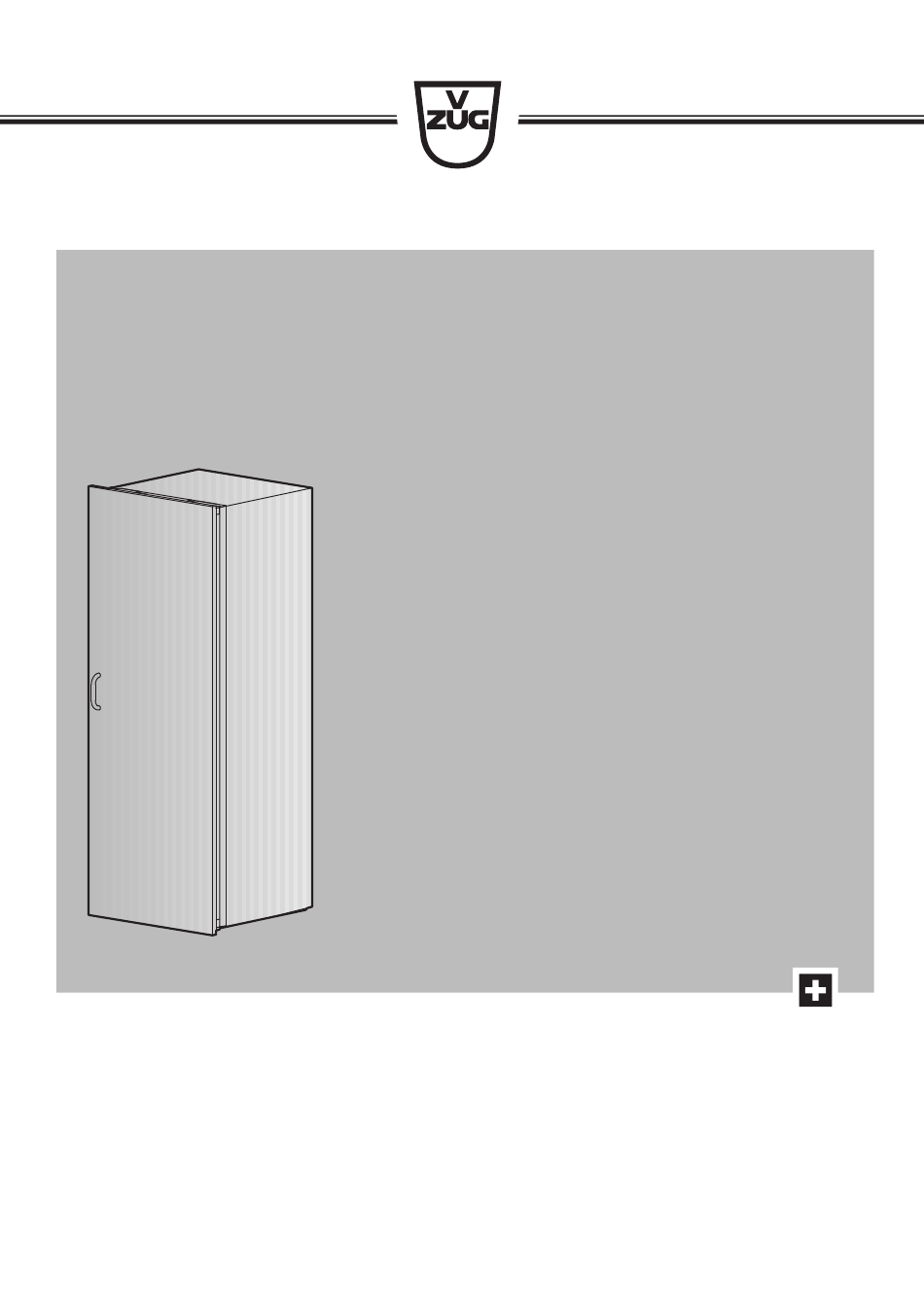

  • Page 1 Operating instructions Royal Refrigerator...
  • Page 2 The product family (model number) corresponds to the first alphanumerics on the identification plate. These operating instructions apply to: Model Product family Size system Royal 51018 SMS 55 / Euro 60 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6301 Zug, 2016...
  • Page 3: Table Of Contents

    Contents 1 Safety precautions  5 Symbols used ...................... 5 General safety precautions .................  6 Instructions for use .................... 7 2 Disposal  9 3 Using for the first time  10 4 Appliance description  11 Structure ....................... 11 Operating and display elements .............. 12 5 Operation  13 Switching the appliance on................ 13...
  • Page 4 11 Noises and alarms  26 11.1 Operating noise.................... 26 11.2 Warning and alarm signals ................ 27 12 Trouble-shooting  28 12.1 What to do if ....................... 28 13 Technical data  31 13.1 Note for testing institutes................... 31 13.2 Temperature measurement................ 31 13.3 Product fiche...................... 32 14 Index  33 15 Service &...
  • Page 5: Safety Precautions

    Safety precautions Symbols used Denotes important safety precautions. Failure to observe said precautions can result in injury or in damage to the appliance or fittings! Information and precautions that should be observed. Information on disposal Information about the operating instructions ▸...
  • Page 6: General Safety Precautions

    1 Safety precautions General safety precautions ▪ Read the operating instructions before using the appliance for the first time! ▪ This appliance can be used by children aged 8 and above and by persons with reduced physical, sensory or mental cap- abilities, or lack of experience and/or knowledge, provided they are supervised or have been instructed on the safe use of the appliance and have understood the hazards involved.
  • Page 7: Instructions For Use

    1 Safety precautions Instructions for use Before using for the first time ▪ The appliance must be installed and connected to the electricity supply in accordance with the separate installation instructions. Have a qualified fitter/ electrician carry out the necessary work. ▪...
  • Page 8 1 Safety precautions Note on use ▪ Do not use any electrical appliances inside the cooling and/or freezer com- partment. ▪ Strong alcohol should only be stored tightly sealed and standing upright. Do not store explosive materials in the appliance. Danger of explosion! ▪...
  • Page 9: Disposal

    Disposal Packaging ▪ All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way. Disconnection ▪ Disconnect the appliance from the mains. With a fixed appliance, this is to be carried out by a qualified electrician! Safety ▪...
  • Page 10: Using For The First Time

    Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport material, as well as protective film, if any, from the interior. ▸ Clean the interior and accessories with lukewarm water or a mild alkaline solution, and dry completely.
  • Page 11: Appliance Description

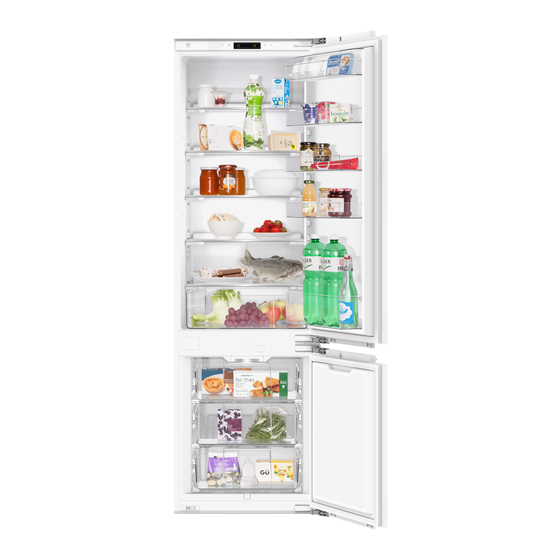

    Appliance description Structure The appliance door can be set to open to the left or to the right. Our Customer Services can make the necessary adjustments to the appli- ance. Door tray with cover Door trays Door tray with bottle holder (bottles up to max.
  • Page 12: Operating And Display Elements

    4 Appliance description Operating and display elements Displays Fast cooling Refrigerator compartment temperature display Appliance switched off Chill compartment Buttons ON/OFF Temperature setting Cancel alarm Fast cooling...
  • Page 13: Operation

    Operation Switching the appliance on ▸ Plug in the appliance at the mains. – «off» is shown in the digital display. ▸ Depress the button for 3 seconds. – The appliance is switched on. An appliance that has been started up for the first time takes around 15 hours (with food inside) to reach its normal operating temperat- ures.
  • Page 14: Fast Cooling

    5 Operation Fast cooling The Fast cooling function allows large quantities of food, e.g. after a shop- ping trip, to be cooled more quickly. The function lowers the target temperat- ure of the refrigerator compartment to the coldest target temperature (3 °C) for 24 hours.
  • Page 15: Glass Shelves And Door Trays

    Glass shelves and door trays The height of the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment can be adjusted. Positioning door trays ▸ Push the door tray up and remove ▸...
  • Page 16: Cold Storage Compartment

    Cold storage compartment Suitable foods can be stored in the chill compartment (temperature between 1 °C and 2 °C) for up to three times longer than in a conventional refrigerator compartment. To ensure optimum storage conditions in the chill compartment, the temperat- ure in the refrigerator compartment must be set between 4 °C and 6 °C.
  • Page 17: Removing The Chill Compartment Drawer

    7 Cold storage compartment Removing the chill compartment drawer ▸ Pull the drawer out as far as it will ▸ Tip the drawer upwards slightly. ▸ Swing the drawer horizontally to- wards the appliance door and re- move it. Inserting the chill compartment drawer ▸...
  • Page 18: Bottle Drawer

    Bottle drawer The temperature in the bottle drawer is 4–5 °C higher than in the rest of the refrigerator compartment. Beverages and perishable vegetables, for instance, can be cooled to 10 °C in the bottle drawer. Removing the bottle drawer ▸ Pull the bottle drawer out as far as it will go.
  • Page 19: Tips And Tricks

    Tips and tricks General information on using the appliance ▪ When closing the appliance door make sure that it forms a seal all the way round. This is supported by the self-closing hinges, as the appliance doors shut themselves if the opening angle is between 20–30°. ▪...
  • Page 20: Notes On Storing Food

    9 Tips and tricks Notes on storing food ▪ Store oils and fats in closed containers. They must not come into contact with the plastic parts or the door seal. ▪ The coldest areas of the cooling compartment are the rear wall and the space above the bottom shelf, regardless of the temperature setting.
  • Page 21: Notes On Freezing

    9 Tips and tricks Notes on freezing ▪ Check the packaging for damage. Damp patches or swollen packaging may indicate that the contents have defrosted. ▪ Food to be frozen should not come into contact with goods that are already frozen or it may cause them to defrost.
  • Page 22: Care And Maintenance

    Care and maintenance 10.1 Cleaning For hygienic food storage, the interior should be kept clean. Do not use any abrasive cleaning agents or scouring cloths. This may damage the appliance. ▸ Every so often, use a mild soapy solution to wipe the interior and dry thor- oughly.
  • Page 23 10 Care and maintenance ▸ Clean the defrost drainage channel with the green cleaner that is in it with an up-and-down and circular motion. If milk has been spilt accidentally and has ended up in the defrost drainage channel: ► Push some kitchen towel into the drain hole and try to absorb as much liquid as possible.
  • Page 24: Changing The Led Lighting

    10 Care and maintenance 10.3 Changing the LED lighting Only use original LED lighting from the manufacturer. ▸ Disconnect the power supply: by pulling out the mains plug or switching off the fuse. ▸ Remove the LED lighting. ▸ Disconnect the plug and socket connection 1 for the LED lighting.
  • Page 25 10 Care and maintenance Chill compartment and bottle drawer ▸ Loosen the locking device on the underside on both sides with your index fingers and pull the top edge of the transparent cover down at the same time. ▸ Push the locking device on the un- derside of the LED lighting back- wards and remove.
  • Page 26: Noises And Alarms

    Noises and alarms 11.1 Operating noise The compressor and the cooling circuit make various noises while the appli- ance is running. Although the appliance is fitted with a quiet compressor and a noise-optimized cooling circuit, some noises cannot be completely avoided. The volume of these noises depends on the size of the appliance, how it is installed and the cooling requirement (e.g.
  • Page 27: Warning And Alarm Signals

    11 Noises and alarms Unusual noises caused by improper installation Unusual noises are often caused by improper installation. The appliance must be installed on a level and stable surface. The pipework on the back of the ap- pliance must never be routed across the wall or other furniture. The pipes must not touch each other.
  • Page 28: Trouble-Shooting

    Trouble-shooting This section lists faults that can be solved simply by following the instructions given. If another fault is displayed or the fault cannot be remedied, please call Customer Services. Before calling Customer Services, ▸ please note down the serial number (FN; see identification plate in «Tech- nical data») and the malfunction message in full, e.g.
  • Page 29 12 Trouble-shooting ...the following appears in the temperature display Cause Solution ▪ The temperature in the re- ▸ Cancel by touching the button. frigerator compartment is – The current average temperature is below -5 °C. shown in the temperature display..the following appears in the temperature display Cause Solution ▪...
  • Page 30 12 Trouble-shooting the chill compartment display is flashing display symbol: Chill compartment Cause Solution ▪ The temperature in the ▸ If necessary: put fewer items that are «still chill compartment is too warm» or «very cold» into the chill compart- warm or too cold.
  • Page 31: Technical Data

    Technical data External dimensions ▸ See installation instructions Electrical connection ▸ See identification plate 1 13.1 Note for testing institutes The maximum quantity (see identification plate or product fiche) must be frozen on the rack. In order to freeze the maximum quantity, the Fast cooling button must be activated 12 hours before placing the food to be frozen in- side.
  • Page 32: Product Fiche

    13 Technical data 13.3 Product fiche In accordance with EU Regulation No. 1060/2010 Brand – V-ZUG Ltd Model name – Royal – 7 (refrigerator/ Category freezer) Energy Efficiency Class – Annual Energy Consumption (AEC) kWh per year Storage volume, refrigerator compartment...
  • Page 33: Index

    Index Alarm ............12, 27 Noises ............. 26 Bottle drawer ..........18 ON/OFF ............12 Button lock ............. 14 Operating and display elements....12 Operation............13 Care..............22 Chill compartment ........16 Packaging ............9 Cleaning............22 Power failure ..........29 Construction...........
  • Page 34 Validity............... 2 Warning signal..........27...
  • Page 35: Service & Support

    Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an onsite visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our progress- ive service agreements.
  • Page 36 1022490-R02 V-ZUG Ltd, Industriestrasse 66, CH-6301 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
