Summary of Contents for V-ZUG Ideal

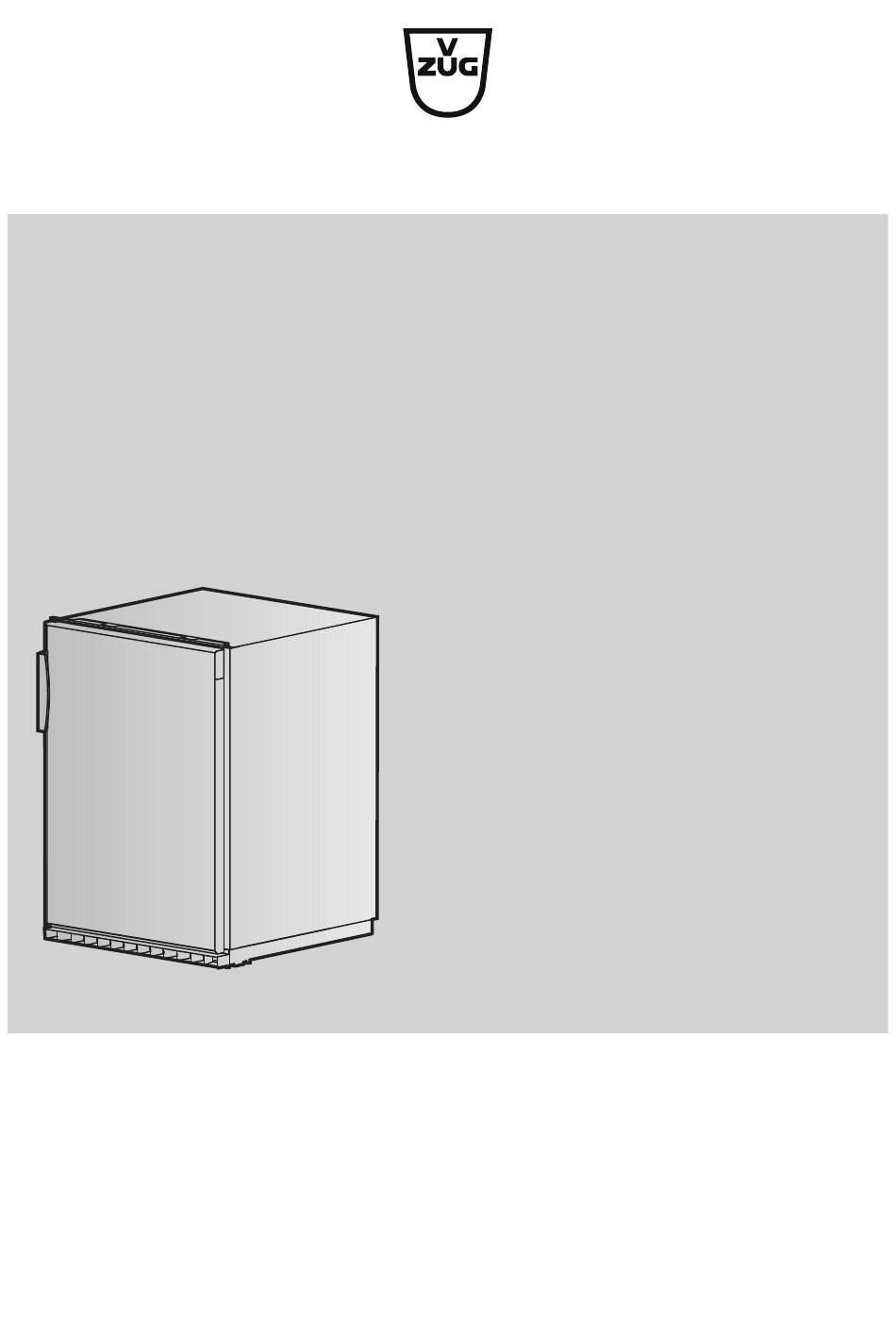

- Page 1 Operating instructions Ideal | Komfort Refrigerator/freezer...
- Page 2 These operating instructions apply to: Model designation Type Model number Size system Komfort EK0612-E 51001 SMS 55 Ideal EK0712-E 51003 SMS 55 Ideal EK0712-E 51004 SMS 55 Variations depending on the model are noted in the text. © V-ZUG Ltd, CH-6302 Zug, 2022...
-
Page 3: Table Of Contents
Contents Safety precautions 4 Symbols used............ 4 General safety precautions........ 4 Appliance-specific safety precautions .... 5 Appliance installation .......... 5 Instructions for use.......... 5 Using for the first time 8 Appliance description 8 Structure .............. 8 Operating and display elements...... 9 Operation 9 Switching the appliance on ......... -
Page 4: Safety Precautions
Safety precautions Symbols used Denotes important safety precau- ▪ This appliance can be used tions. Failure to observe said precautions by children aged 8 and above can result in injury or in damage to and by persons with reduced the appliance or fittings! physical, sensory or mental Information and precautions that capabilities, or lack of experi-... -
Page 5: Appliance-Specific Safety Precautions
▪ Thickness of wood of door leaf: 16– ances. 20 mm. Use the hinge bolts supplied if the door leaf thickness >19 mm. This Appliance installation restricts the opening angle to 90°. - Page 6 1 Safety precautions ▪ When installed, it is important to ensure fect the functioning of the appliance. If that the air inlets and vent openings are the appliance is not working properly or not covered or blocked. in case a repair is needed, follow the in- ▪...
- Page 7 1 Safety precautions ▪ Store oils and fats upright in closed Caution: Risk of injury! containers. They must not come into ▪ Be careful not to put fingers in the door contact with the plastic parts or the hinges. as there is otherwise a risk of door seal.
-
Page 8: Using For The First Time
Using for the first time Before operating the newly installed appliance for the first time, the following steps should be taken: ▸ Remove packaging and transport materials as well as any protective film from the in- terior. ▸ Clean the interior and accessories with lukewarm water or a mild soapy solution (wa- ter and washing-up liquid) and dry thoroughly. -
Page 9: Operating And Display Elements
4 Operation Operating and display elements off Display Fast cooling/freezing Refrigerator compartment temperature display Appliance switched off Buttons ON/OFF Temperature setting Acknowledge alarm Select fast cooling/freezing Operation Switching the appliance on ▸ Plug in the appliance at the mains. – «off» is shown in the digital display. ▸... -
Page 10: Fast Cooling/Freezing
4 Operation The effective temperature may at times be different from the selected set value if the door is open for an extended period of time or if warm foods have been placed inside. If the temperature is below -5 °C, is shown in the temperature display;... -
Page 11: Glass Shelves And Door Trays
5 Glass shelves and door trays Glass shelves and door trays The height of the glass shelves in the refrigerator compartment and the door trays on the inside of the refrigerator compartment door can be adjusted. Positioning door trays ▸ Push the door tray up and remove it. ▸... -
Page 12: Tips And Tricks
6 Tips and tricks Tips and tricks General information on using the appliance ▪ When closing an appliance door make sure that it forms a proper seal all the way round. The self-closing hinges help keep it closed: as the appliance doors close auto- matically if the opening angle is between 20–30°. -
Page 13: Storing Food
▪ Produce can generally be stored for longer at low temperature settings. A temperature of 5 °C in the refrigerator compartment and -18 °C in the freezer compartment provide a balanced setting in terms of food quality and energy consumption – ideal if storing a large variety of products. -
Page 14: Notes On Saving Energy
Moisture can cause the rear wall of the refrigerator to ice up more quickly and reduce its cooling capacity. ▪ For ideal air circulation: Do not store food and food items too close to each other. Care and maintenance Cleaning For the hygienic storage of foodstuffs, the interior should always be kept clean. -
Page 15: Defrosting
7 Care and maintenance Defrosting Defrosting the refrigerator compartment The refrigerator compartment defrosts once a day automatically. During defrosting, the temperature inside the refrigerator compartment increases so that the ice on the rear wall melts. The wa- ter created when the ice melts collects in the defrost channel, flows through the drain hole and evaporates outside the appliance in the evaporation tray. -
Page 16: Noises And Alarms
8 Noises and alarms Defrosting the freezer compartment A thick layer of ice will prevent the cold from being transferred to the frozen food. There- fore, the freezer compartment should be defrosted if a lot of ice has formed. When de- frosting, keep frozen food as cold and insulated as possible, e.g. -
Page 17: Warning And Alarm Signals
9 Trouble-shooting Warning and alarm signals Warnings when the appliance doors are open If the cooling compartment door is open for several minutes, the following alarm signals occur: After 2 minutes LEDs flash every 15 seconds. After 3 minutes LEDs flash every 5 seconds. After 4 minutes LEDs flash rhythmically every second. - Page 18 9 Trouble-shooting Malfunction Possible cause Solution ▪ Various situations can lead ▸ Contact Customer Services. Error display to an «F» message. Error display ▪ Temperature sensor in the ▸ Contact Customer Services. refrigerator compartment is – The appliance enters the emer- defective.
-
Page 19: Technical Data
▸ See identification plate Spare parts V-ZUG Ltd provides spare parts for 15 years after the making available on the market of the last appliance with this type designation. Deviations from this are subject to consider- ation of and compliance with the applicable ecodesign regulations on the availability of spare parts. - Page 20 11 Disposal Disposal 11.1 Packaging Never allow children to play with packaging material due to the danger of injury or suffocation. Store the packaging material in a safe location or dispose of it in an environmentally-friendly way. 11.2 Safety Render the appliance unusable to prevent accidents caused by improper use (e.g. through children playing): ▸...
-
Page 21: Index
Index Alarm ............9, 17, 24 ON/OFF ............9, 24 Appliance Operating and display elements...... 9 Disposal............ 20 Operation.............. 9 Appliance installation ......... 5 Power failure ............. 19 Product data ............. 19 Care..............14 Cleaning............. 14 Climate class ............6 Construction............ - Page 22 Notes...
-
Page 23: Service & Support
Your repair order Call the free service number 0800 850 850 to contact your nearest V-ZUG service centre. You can arrange an on-site visit by us by phone if you wish. General queries, accessories and service agreement V-ZUG will be happy to help you with any general administrative or technical queries, to accept your orders for accessories and spare parts and to inform you about our pro- gressive service agreements. - Page 24 Refrigerator compartment temperature display Appliance switched off Buttons ON/OFF Temperature setting Acknowledge alarm Select fast cooling/freezing 1022492-05 V-ZUG Ltd, Industriestrasse 66, CH-6302 Zug Tel. +41 58 767 67 67, Fax +41 58 767 61 61 info@vzug.com, www.vzug.com Service Centre: Tel. 0800 850 850...
