Quick Start Guide: Rotary Laser 40-6535 • 40-6541
Thank you for purchasing this high-accuracy dual-slope horizontal
rotary laser. This laser is ideal for critical level measurements, where
accuracy can't be compromised.
This tool features:
• Class IIIa long-range laser
• Dual-slope for grading
• Tilt indicator
• Remote control
Typical Applications Include:
• Setting and leveling concrete
formwork
• Grading
• Concrete flatwork

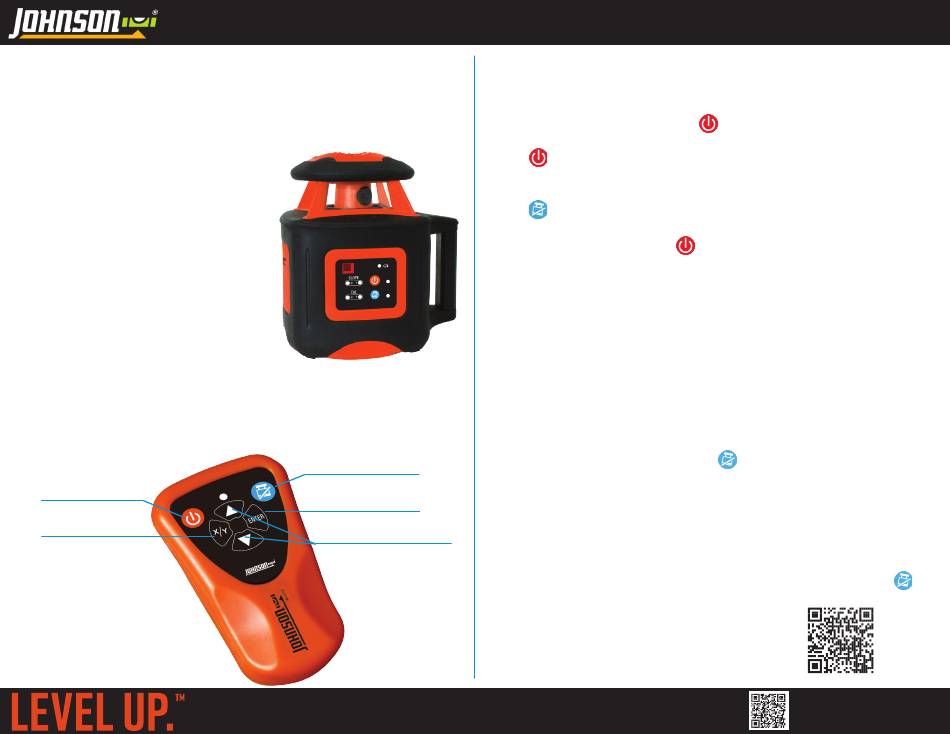

BUTTON GUIDE
Most functions of this laser are accessed via the remote control - this
minimizes disturbances to the laser during operation.
The power and tilt indicator buttons can be accessed from the laser.
POWER
SLOPE AXIS
TILT INDICATOR
ENTER BUTTON
SLOPE UP/DOWN
We want to get you up and running as quickly as possible - but this quick start guide is not a replacement for reading and understanding your
operator's manual! For complete safety & operating instructions, refer to the operator's manual included with your rotary laser, or scan the QR code.

GETTING STARTED

1. Insert batteries into the laser and the remote control.
2. Most functions of the laser require the remote control for
operation. Note: The laser will stop receiving remote signals after
30 minutes of inactivity. Press
munication with the remote.
3. Tap to power on the laser. The laser will self-level and rotate.
The laser will flash if out of its self-leveling range. If this occurs,
bring the laser within 5° of level and restart it.
4. Tap to disable or enable the tilt indicator. See the Tilt Indicator
section for more information.
5. To power off the laser, tap
sleep mode for 30 minutes. It can be woken with the remote
control or the laser keypad. After 30 minutes, it will stop receiving
remote control signals.
TILT INDICATOR
The tilt indicator disables the laser if it's bumped while operating,
preventing you from taking inaccurate measurements.
To enable the tilt indicator:
1. With the laser powered on, press
2. The Tilt Mode LED will flash for 30 seconds. During this time, the
laser will automatically re-level and restart if bumped. This gives
you time to make any necessary final adjustments to the laser.
3. After 30 seconds, the Tilt Mode LED will remain on, indicating Tilt
Mode is active. Any disturbance to the laser will cause it to stop
spinning and flash to alert you.
4. Reset the laser after a tilt event or exit tilt mode by pressing
For a video quick start guide,
scan the QR code to the right:
on the laser to re-enable com-
. The laser will turn off and enter
.
