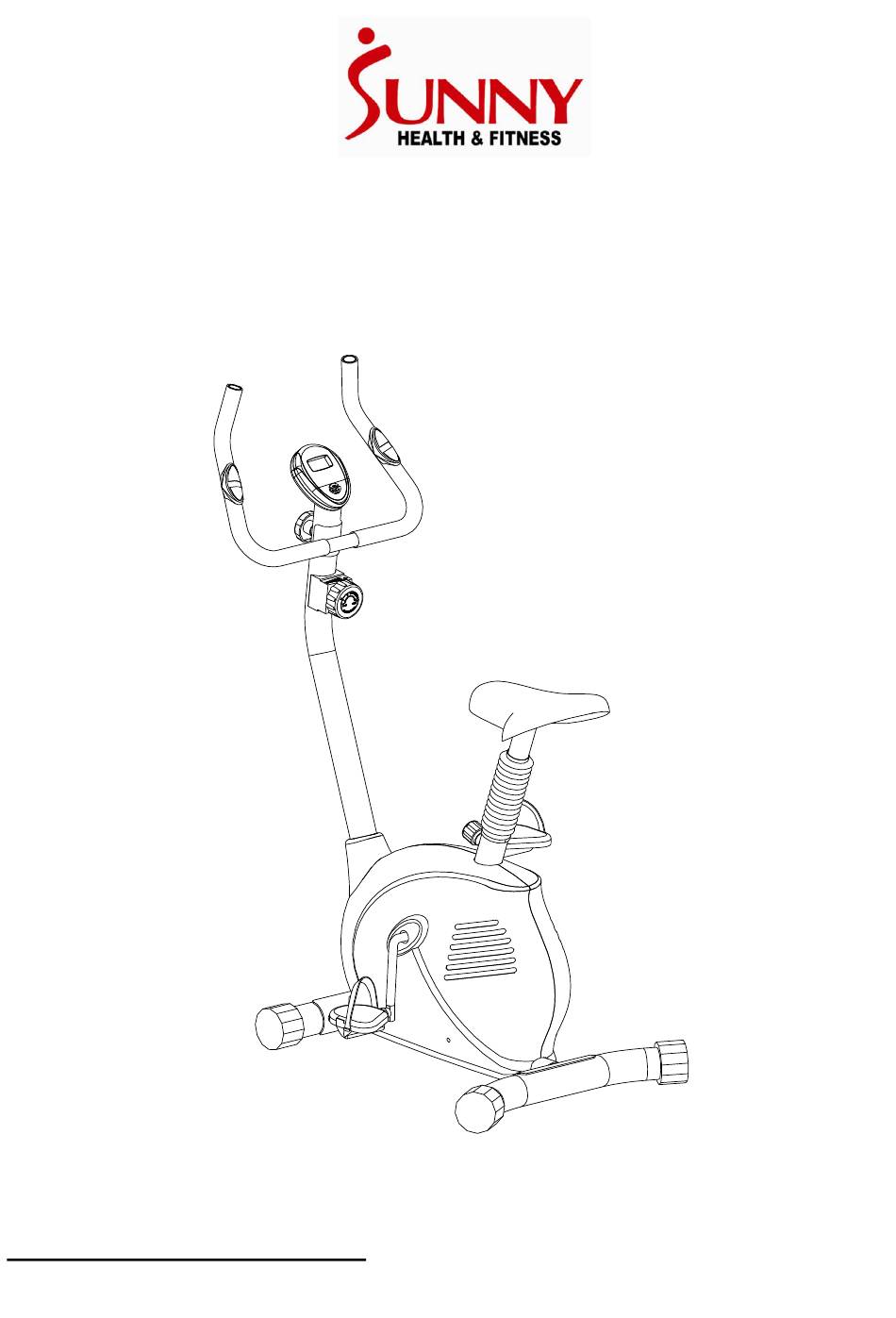

- Page 1 SUNNY MAGNETIC EXERCISE BIKE SF-B910 IMPORTANT: Please read this manual carefully before using the product. Retain owner’s manual for future reference. For Customer Service, please contact: support@sunnyhealthfitness.com...
- Page 2 IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.
- Page 3 EXPLODED DRAWING 23 19 21...
- Page 4 PARTS LIST Description Description Bolt M8*73 Upper sensor wire Cap nut M8 Tension control knob Arc washer ID8.5*D25 Handlebar post Bolt M8*15 Arc washer Arc washer ID8.5*D19 Screw M5*45 Knob M16 Computer Screw M5*15 Handle pulse wire Knob M8 Screw Bolt M8*94 Handlebar Main frame...
- Page 5 HARDWARE PACKAGE...
-
Page 6: Main Frame (
ASSEMBLY INSTRUCTIONS STEP 1: Secure the Front and Rear Stabilizers (No. 2 and No. 4) to the Main Frame (No. 1) using 4 Bolts (No. A), 4 Arc Washers (No. C) and 4 Cap Nuts (No. B). -
Page 7: Saddle Post (
STEP 2: Remove the 3 Nylon Lock Nuts (No. 28) and 3 Washers (No. 29) from the Saddle (No. 9). Then secure the Saddle (No. 9) to the Saddle Post (No. 8) using 3 Nylon Lock Nuts (No. 28) and 3 Washers (No. -
Page 8: Lower Tension Wire
FIG. 1 FIG.2 STEP 3: IMPORTANT: Before attempting to connect the link wire of Tension Control Knob (No. 14), ensure that the Tension Control Knob (No. 14) is turned all the way to the left (the lowest level of resistance), this will provide the tension wire with the necessary length required to connect it. Connect the Upper Sensor Wire (No. -
Page 9: Computer
FIG.1 STEP 4: Connect the Upper Sensor Wire (No. 13) to the Computer Wire (No. 27) as shown above in Fig. 1. Ensure that the connection is properly secured before continuing. Secure the Computer (No. 18) onto the mount at the top of the Handlebar Post (No. 15) using 2 Screws (No. -
Page 10: Handle Pulse Wire
STEP 5: Attach the Handlebar (No. 21) to the Handlebar Post (No. 15) using 1 Knob (No. H), 1 Arc Washer (No. E), and 1 Bolt (No. I). Tighten and secure with Allen Wrench. Insert the Handle Pulse Wire (No. 19) into the socket on the back of the Computer (No. 18). -
Page 11: Crank
-10- STEP 6: NOTE: The Left and Right Pedals (No. 25L and No. 25R) are marked L for the left pedal and R for the right pedal. Left Pedal: Align the Left Pedal (No. 25L) with the Left crank arm at 90 degrees. Gently insert the pedal into the crank arm, turn the pedal counter-clockwise as tightly as you can with your hand. - Page 12 Notice: The lowest magnetic force setting is on level 1 The highest magnetic force setting is on level 8 How to adjust the seat’s height： a. Turn knob rotations to the left to loosen the knob. b. With one hand pull the knob out;...
- Page 13 EXERCISE COMPUTER INSTRUCTION MANUAL FUNCTIONAL BUTTONS: MODE - Press to select functions. – Press and hold the MODE button for 3 seconds to reset time, distance and calories. – Press to set values of time, pulse, distance and calories when not in scan mode. RESET - Press to reset values.
- Page 14 SPECIFICATIONS Auto Scan Every 6 seconds Running Time 00:00 ~ 99:59(Minute: Second) Current Speed The max pick-up signal is 999.9 MILE/HR FUNCTION Trip Distance 0.0 ~ 999.9 MILE Calories 0 ~ 9999 Kcal Total Distance 0 ~ 9999 MILE Pulse Rate 40-240BPM Battery Type 2 pcs of SIZE- AAA (included)
