Zodiac T5 Quick Start Manual

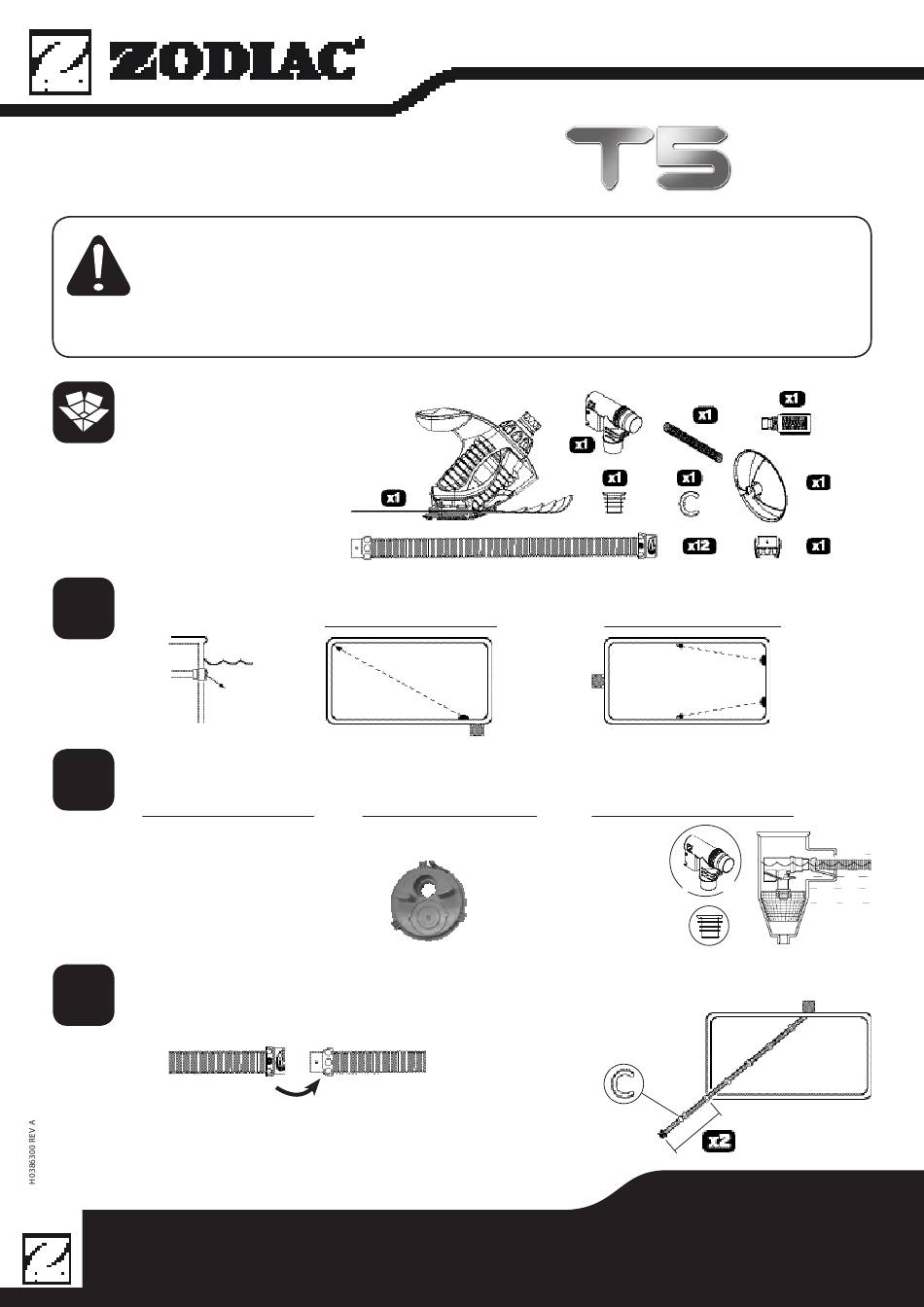

QUICK START GUIDE
RISK OF SUCTION HAZARD, WHICH IF NOT AVOIDED, CAN RESULT IN SERIOUS INJURY OR DEATH.
READ THIS GUIDE IN ITS ENTIRETY BEFORE INSTALLING AND OPERATING THE CLEANER. Do not block
the suction fittings in the pool, the suction opening on the cleaner, or the cleaner hoses with any part of your body.
Do not expose your hair, loose clothing, jewellery, etc, to any suction outlet fittings in the pool/ spa or on the cleaner.
For complete installation instructions, download the owner's manual from the website www.zodiac.com.au or
call the Customer Service Centre 1800 688 562.

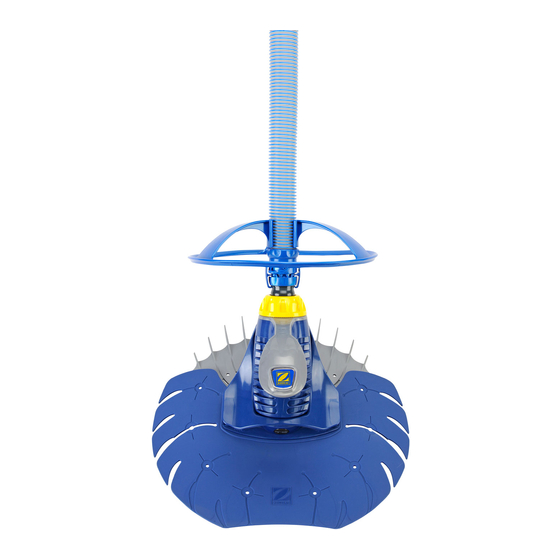

 Cleaner Body
 AD Flow Valve
 Universal Weir Cuff
 Hose mesh
 Hose Weight
 Pool Pulse™
 Hose Section
 Wheel Deflector
 Quick Connector
Start to orientate the return line (s) down towards the walls so the water is divided.
1
Install the AD Flow valve into the skimmer box. The way you connect the AD flow valve varies depending on the type
2
of skimmer you have.
1st case: with Waterco skimmer box
Screw the AD Flow Valve connector
into the top of the Vac Plate.
Assemble the hose sections, starting from the skimmer box until you reach the furthest point of your pool and add
3
2 extra sections. Add the hose weight on the last hose section as per the drawing below.
Connect the hose to the valve in the skimmer box.
Submerge the whole hose under water until there is no air left in the hose.
Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd
ABN 87 002 641 965
219 Woodpark Rd, Smithfield, NSW 2164 Australia

Example of a pool with 1 return line
2nd case: with Poolrite skimmer box
Screw the AD Flow Valve connector
into the bottom of the Vac plate.


 

Example of a pool with 2 return lines
3rd case: with other types of skimmer box
AD Flow valve
Universal Weir Cuff
For more information visit www.zodiac.com.au
or call Customer Care 1800 688 552
