6-2 Configuring the Rover

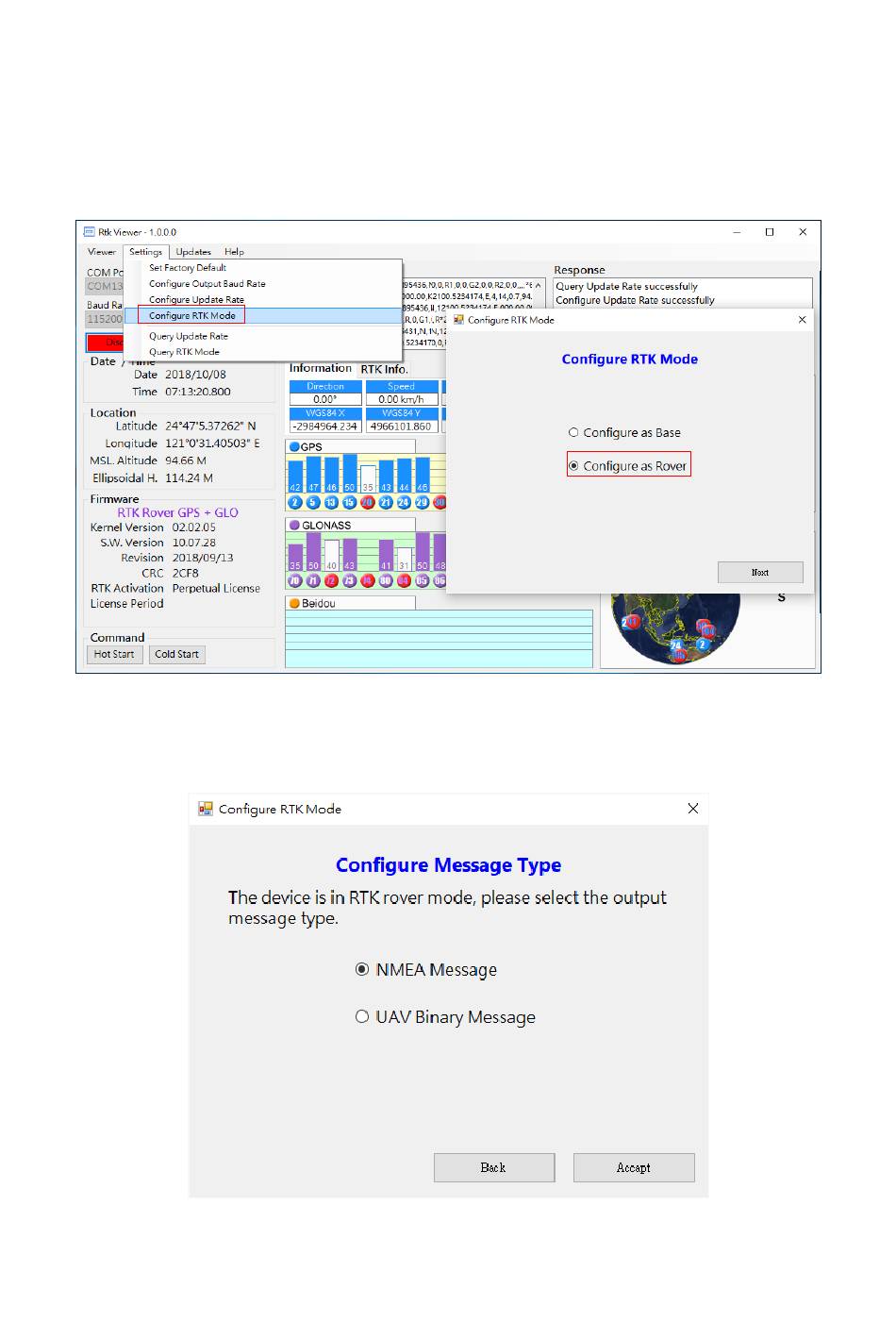

To configure Alpha as RTK rover, put slide switch to position A, connect micro-USB cable to Alpha and
a Windows PC running RTK Viewer. From the "Settings" pull-down menu on RTK Viewer select
"Configure RTK Mode". On the dialog box select "Configure as Rover" and press "Next" button.
On the next dialog box select "NMEA Message" for most applications. "UAV Binary Message" is to be
selected only if using Alpha with ArduPilot/Pixhawk.
When done, put slide switch to position B for later use as RTK rover.
Figure 6-1
Figure 6-2
