Polaris Alpha User Manual page 15

Setup for Real-Time Controller over Internet
RTK
antenna
Base
Alpha RTK
USB mode / switch on A

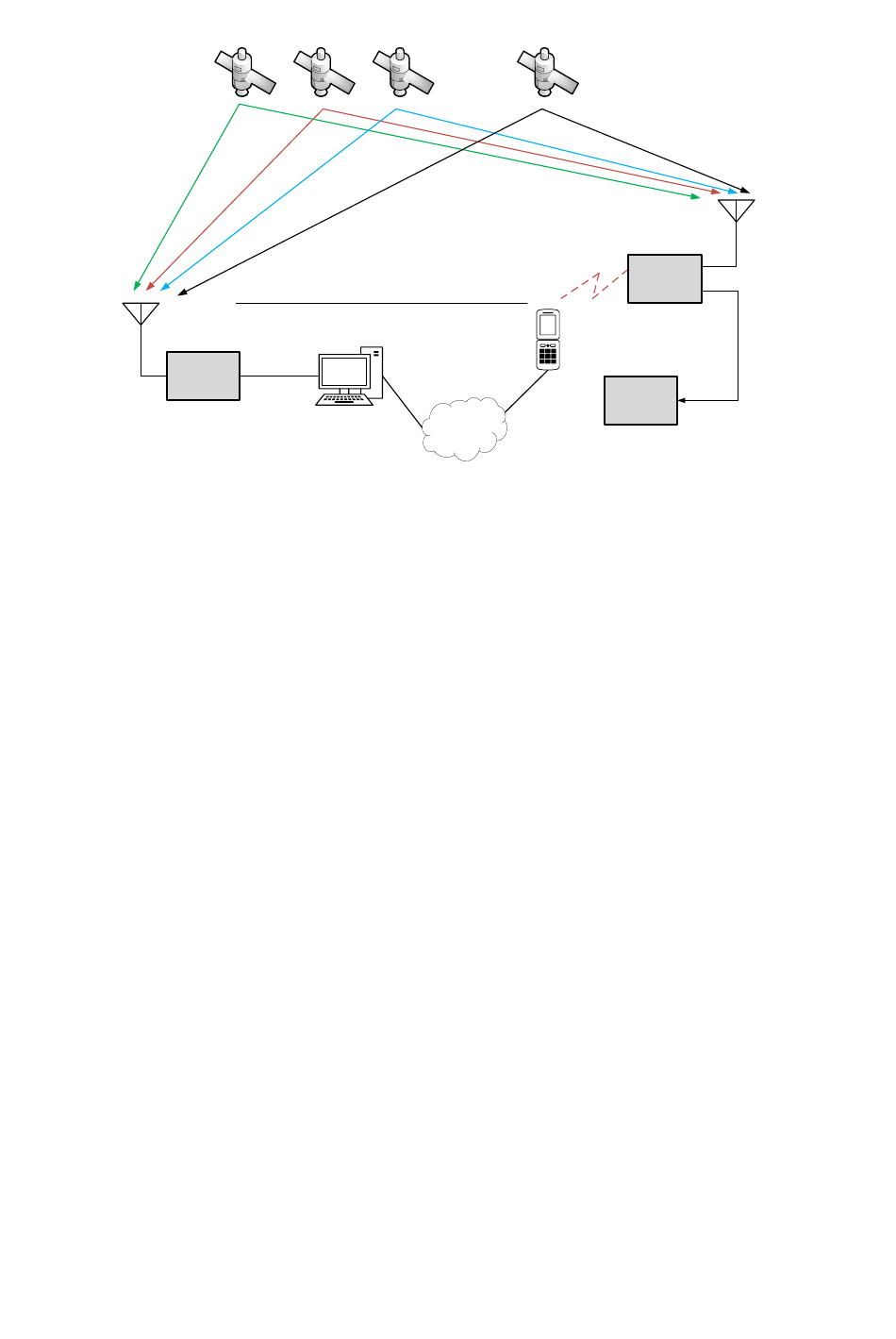

A smartphone can be used to connect RTK rover with RTK base over Internet instead of using a pair of
telemetry radios for non-line-of-sight real-time precision guidance application as shown in figure 4-7.
In this case user can setup an Alpha RTK base as described previously with figure-4-4, and with Alpha
RTK rover also connecting pin-3 of the 6-pin connector to the real-time controller's UART input for
sending the NMEA output messages to the real-time controller.
Micro-USB
cable
NTRIP
caster
Figure 4-7
. . .
Bluetooth
BT mode / switch on B
NTRIP
client
3G/4G/LTE
Internet
15
RTK
antenna
Rover
Alpha RTK
Real-Time
Controller
Pin #3 of 6-pin
TTL connector
