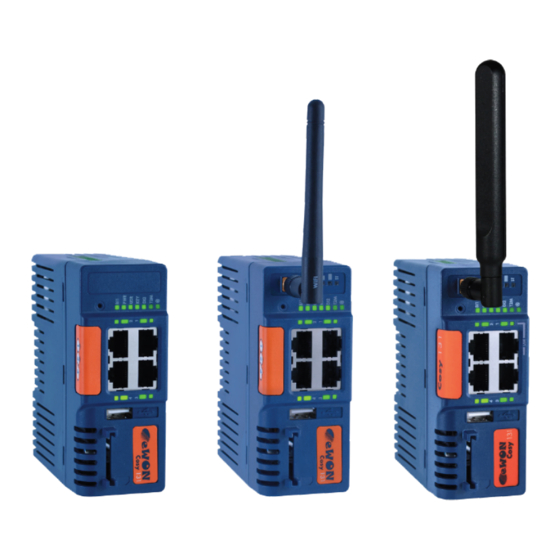

The Cosy 131 User Guide
USER MANUAL
UM-0004-00-EN 1.0 ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cosy 131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for eWON Cosy 131

Summary of Contents for eWON Cosy 131

  • Page 1 The Cosy 131 User Guide USER MANUAL UM-0004-00-EN 1.0 ENGLISH...
  • Page 2 HMS Industrial Networks SA has intellectual property rights relating to technology embodied in the product de- scribed in this document. These intellectual property rights may include patents and pending patent applications in the USA and other countries. The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...

  • Page 3: Table Of Contents

    System Wizard ......................7 Internet Wizard ......................10 Talk2M Wizard ......................16 Home Section ......................... 18 Ready to establish the remote connection to your eWON ......... 20 DI Config Wizard......................21 Remote Access Control ....................21 DI Alarm Notification ....................22 Wan fallback ........................24 Diagnostic and Setup....................
  • Page 4 This page intentionally left blank...

  • Page 5: Preface

    3 (28) Preface About This Document This document presents the features of the eWON Cosy 131 and explains briefly the steps to take to get a functional Cosy 131. For additional related documentation and file downloads, please visit www.ewon.biz/support. Document history...

  • Page 6: Requirements

    4 (28) Requirements Hardware This guide presents the features of the Cosy 131 which is used for remote access your devices. Software The Cosy 131 is configured through its web interface which is accessible with any modern web browser. The recommended platforms are: •...

  • Page 7: Get In Touch With The Cosy 131

    Now, the Cosy 131 is successfully on the eWON list. Assigning an IP Address It is important to understand why you need to give an appropriate IP address to your Cosy 131 if you want to avoid any conflict on your network.

  • Page 8: Accessing The Web Configuration Interface

    While the computer is connected to a LAN port of the Cosy 131, open an Internet browser and enter the LAN IP address of the Cosy 131 into the address field. If the computer is not in the same network address range as the Cosy 131, its web pages can be reached using the “EZ DHCP”...

  • Page 9: Quick Launch Wizard

    • The Internet Wizard configures the WAN communication settings for the Cosy 131. • The Talk2M Wizard establish a VPN between the Cosy 131 and the Talk2M infrastructure. System Wizard The System Wizard configures basic system settings. On the first screen of the System Wizard, enter the eWON name.
  • Page 10 NTP server. • Set theGMT offset. The offset in hours of the country where the Cosy 131 is located in. For Example if we are located in GMT-3, then enter -3 in the GMT offset. field Click Next to proceed to the next screen.
  • Page 11 • Orange for a WAN port. • Green for a LAN port. Fig. 4 System Wizard LAN/WAN Configuration Click Next to finish the System Wizard settings. Fig. 5 System Wizard Diagnosis The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...

  • Page 12: Internet Wizard

    Quick Launch Wizard 10 (28) Internet Wizard The Internet Wizard configures the Internet settings for the Cosy 131. The Interface field allows to select which interface will be in use for the Internet connection: • Ethernet WAN connection • Cellular Modem •...
  • Page 13 Click Next to proceed to the next screen. • The Internet connection test is enabled by default, it allows the Cosy 131 to verify the Inter- net connection. If this network uses a proxy server or if port 80 is closed for outbound con- nections, uncheck this option.
  • Page 14 Internet Wizard Test 4.2.2 Cellular Network Configuration Instead of using the WAN Ethernet connection for the Internet connection, if your Cosy 131 em- beds a cellular modem, you can also use the modem for the Internet connection . • Select Maintain connection to keep the Cosy 131 connected to Internet permanently or se- lect Send SMS to activate to activate the remote access only after receiving an SMS.
  • Page 15 Show advance options checkbox Click Next to apply the configuration changes. Fig. 11 Internet Wizard GSM Modem Once the wizard completes successfully, the Cosy 131 is connected to the Cellular WAN network. Fig. 12 Internet Wizard Test The Cosy 131 User Guide User Manual...
  • Page 16 IT department. • In case of specific proxy connection settings; check the Connect to Talk2M through proxy checkbox Click Next to apply the configuration changes. Fig. 14 Internet Wizard Wifi Setup The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...
  • Page 17 Click Next to proceed to the next screen. • The Internet connection test is enabled by default, it allows the Cosy 131 to verify the Inter- net connection. If this network uses a proxy server or if port 80 is closed for outbound con- nections, uncheck this option.

  • Page 18: Talk2M Wizard

    Quick Launch Wizard 16 (28) Talk2M Wizard The Talk2M Wizard, configures the VPN connection between the Cosy 131 and your Talk2M ac- count on the Talk2M server.. • On the first screen of the Talk2M Wizard, select Register with Activation Key option •...
  • Page 19 Fig. 18 Talk2M Wizard Proxy Configuration This Wizard connects to the Talk2M server and retrieve the VPN settings for the Cosy 131 linked to your account. The Wizard also check UDP and TCP connection to find the best suit- able option for this eWON. If the wizard completes successfully, the Cosy 131 is now configured for Remote Access through Talk2M.

  • Page 20: Home Section

    Home Section The Summary page or home section, shows at a glance information about the health and status of the Cosy 131. Its current Internet connection and VPN connection status, date and time, and firmware versions are all displayed Internet Connection Fallback The status of the WAN fallback feature.
  • Page 21 By default, it is activated. Possibility to change this status by clicking on it. NAT 1:1 Status of the NAT 1:1 By default, it is deactivated. Possibility to change this status by clicking on it. Fig. 20 Summary Page The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...

  • Page 22: Ready To Establish The Remote Connection To Your Ewon

    Ready to establish the remote connection to your eWON The Cosy 131 is now configured and available for remote access. Start now eCatcher to connect your Cosy 131 remotely. Alternatively, you can also use eCatch- erMobile or M2Web. eCatcher Mobile: It is the app version to be installed on your mobile devices running under Apple iOS or Google Android.

  • Page 23: Di Config Wizard

    Click the Enabled checkbox. If enabled, then Talk2M remote access will only be possible at the high state of the digital input 1. Only if the Key Switch has been enabled. The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...

  • Page 24: Di Alarm Notification

    Digital Input switch on a high state Fig. 23 DI Wizard Notification Key Configuration Click Next to test and apply the Digital Input connection settings. The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...
  • Page 25 131 is connected to Talk2M and a prefix “(BOOT)” is added to your messages SMS and email notifications even on a Cosy 131 WiFi and ethernet, are sent via T2M relays, but it does force the Cosy 131 to have a T2M connectivity and charges will apply for every SMS sent.

  • Page 26: Wan Fallback

    3 minutes after the connection problem appears, then it will stay on the secondary WAN in- terface the fallback interface for 1 hour. After this hour the Cosy 131 will try to connect back the primary WAN interface and if the does not succeed the Cosy 131 will go back to the secondary WAN interface.
  • Page 27 Now, the WAN fallback network settings are successfully configured. WAN fallback feature will appears only by clicking on the Internet Wizard. If the Quick Launch Wizard is performed; the Internet Wizard will not offer the WAN fallback option The Cosy 131 User Guide User Manual UM-0004-00-EN 1.0...

  • Page 28: Diagnostic And Setup

    26 (28) Diagnostic and Setup On the Cosy 131 , the main configuration setup are done through the Wizard nevertheless, on the left hand side menu, there are 2 core options Diagnostic and Setup. The Diagnostic menu, records significant system events on the Cosy 131 that can be used in case of troubleshooting;...
  • Page 29 This page intentionally left blank...
  • Page 30 last page © 2018 HMS Industrial Networks AB Box 4126 300 04 Halmstad, Sweden info@hms.se UM-0004-00-EN 1.0.8427 / 2018-05-03...
