- Page 1 COSY 131 Installation Guide This installation guide describes the hardware of the IG 022 / Rev. 1.4 eWON COSY 131 and explains how to get started with the embedded web site. support.ewon.biz...
-
Page 2: Table Of Contents
Table of Contents 1. Product Summary ......................4 1.1. Introduction ............................4 1.2. Concept of the eWON COSY 131 Family ................... 4 1.3. General specification of the hardware platform ..............4 1.4. Typical applications ........................4 1.5. Type and Part Numbers ......................... 5 2. - Page 3 A.2 - Specification of the External Power Supply ................27 A.3 - Digital Output & Digital Inputs ....................27 A.4 - Used Wireless Frequencies ......................29 Revision ..........................30 Revision History ............................. 30 Page 3 / 30 eWON COSY 131 | IG 022...
-
Page 4: Product Summary

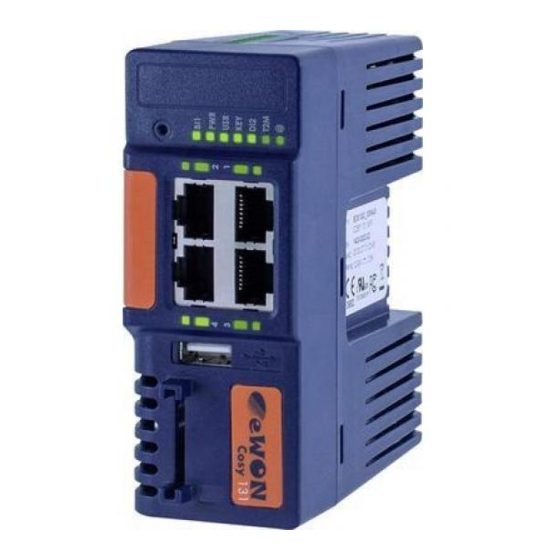

1. Product Summary 1.1. Introduction The present Installation Guide describes the hardware of the eWON COSY 131 family. The eWON Cosy 131 family is a set of 3 industrial gateways/routers. The eWON Cosy 131 is fully compatible with the Talk2M cloud connectivity services (www.talk2M.com). -
Page 5: Type And Part Numbers
Table: List of the available part numbers - Note - The MA suffix means Multiple languages A (ENG, FR, DE, SP) The part number syntax is explained in 3.1. Label Page 5 / 30 eWON COSY 131 | IG 022... -
Page 6: Safety, Environmental & Regulatory Information
• RFI suppressors must be mounted on the power supply cable in the following order, starting at 3cm of the connector and going to the power supply: Wurth Elecktronik 742-717-33 Wurth Elecktronik 742-716-22 Wurth Elecktronik 742-711-11 Page 6 / 30 eWON COSY 131 | IG 022... -
Page 7: Applicable Safety Standards
Pull the slide lock (located at the bottom of the unit's back-side) downwards and present the unit in front of the DIN rail. Tilt the eWON upwards in order to hang it on the upper edge of the DIN rail by its hook. Gently tilt the unit downwards until it finds its original position. - Page 8 The product is intended to be mounted vertically, label on the right side Installation on DIN-rai Wall mounting position SIM card slot DIN rail mounting braket Screw holes intended to receive M4 screws with an 8mm diameter head Page 8 / 30 eWON COSY 131 | IG 022...
- Page 9 A free gap of at least 1 cm must be respected on each side of the unit. - Caution - In any other mounting position than the one explained here above, the specified temperature has to be derated to -25°C to +40°C. Page 9 / 30 eWON COSY 131 | IG 022...
-
Page 10: Cabling Rules
Storage altitude Up to maximum 3000m 2.4.5. Earthing Earthing the eWON is necessary to eliminate unwanted transients (lightning protection) and to conform to the EMC requirements. Therefore, a functional earth (FE) terminal is available on the main connector as shown in A.2. -
Page 11: Hardware Description
Chapter 3 Hardware description 3. Hardware description 3.1. Label The identification label of the eWON COSY 131 is placed on the right hand side of the housing. The different parts of the label are described below: eWON COSY 131 Ethernet Label... - Page 12 Chapter 3 Hardware description Label can have variant marks depending of models eWON COSY 131 WiFi eWON COSY 131 – 3G Penta EC6133m_ccLL[suffix] Position(s) Description Acceptable values name of the family EC for eWON COSY number corresponding to the HW platform.
-
Page 13: Mechanical Dimensions
Status LEDs panel LAN/WAN Ethernet ports and corresponding status LEDs (Red: WAN / Green: LAN) USB slot SD card slot * SD Card is not supported for the moment • Page 13 / 30 eWON COSY 131 | IG 022... -
Page 14: Upper Side
See. Digital Output & Digital Inputs Talk2M - Green ON = Talk2M VPN connection established See. Digital Output & Digital Inputs Internet Green ON = Internet is configured on the eWON COSY Page 14 / 30 eWON COSY 131 | IG 022... -
Page 15: Status Led Panel (Cosy 131 - Wifi)
Green ON = Modem connected Reception signal level Red ON = Poor signal Reception signal level Red ON = Signal is OK Reception signal level Red ON = Good signal Page 15 / 30 eWON COSY 131 | IG 022... -
Page 16: Radio Communication Models
• The user shall be informed about modem identification numbers according to their national authorities. This product contains part identified as follows by national authorities: – FCC ID: QOQWF111 – IC ID: 5123A-BGTWF111 – RRA ID: KCC-CRM-BGT-WF111 – GITEKI (MIC) ID: 209-J00061 Page 16 / 30 eWON COSY 131 | IG 022... -
Page 17: Cosy 131 With Internal 3G+ Penta Modem
• national authorities: This product contains part identified as follows by national authorities: – FFC ID: RI7HE910 – IC ID: 5131A-HE910 – GITEKI (MIC) ID: 005-100269 – JATE ID: AD12-0318001 Page 17 / 30 eWON COSY 131 | IG 022... -
Page 18: Lan Switch Specifications
LAN switch to be fully operational. When an eWON router is configured to operate a certain way, it is part of the strategy, if no other method worked, to reboot itself. This is the ultimate eWON strategy to try restoring the requested communication channels and be consistent with requested configuration. -
Page 19: Cosy Ip Address & Access To The Web Configuration
Connect one of the LAN-ports (by default, port No. 1 is always a LAN port) of your COSY with your PC point-to-point or through a network where there is no risk that the eWON's default IP-address (10.0.0.53) would conflict with another connected device. - Page 20 Browse and select it. The Serial Number of the COSY is on its label, see in 3.1.Label Click Next Enter a new LAN IP address and Subnet Mask. Click Next Page 20 / 30 eWON COSY 131 | IG 022...
-
Page 21: Ewon Cosy's Web Interface
LAN IP address in the URL field (the default address is http://10.0.0.53). You arrive on a loading page If this is the first boot of the eWON COSY (or after a level 2 reset), you will be asked for a default language. -
Page 22: Ewon Cosy 131 | Ig
For security reasons, changing the default password “adm” is absolutely required. You will be automatically redirected to the Quick Launch Wizard page: You can follow the Quick Start Guide as an aid to configure your eWON COSY. Can be downloaded on http://support.ewon.biz/cosy-131... - Page 23 Chapter 4 COSY IP Address & Access to the Web Configuration To reconfigure your eWON COSY, you can easily rerun the wizard by clicking on the Settings button on top of the page. Page 23 / 30 eWON COSY 131 | IG 022...
-
Page 24: Troubleshooting
The LED labeled BI1 turns OFF. • Wait approximately 30 secs until the reset procedure is completed. • The eWON restarts automatically and the unit is ready to be used, the USR LED flashes GREEN slowly. 5.4. Second Level Reset (factory reset) This second level reset formats the entire non volatile memory and returns the eWON to its factory settings. -
Page 25: Reset Impact Matrix
1,5 sec OFF remains running in this diagnostic mode. • You have to power the eWON COSY OFF and ON again to reboot the unit in normal mode. As described before, the eWON returns to its default COM parameters and factory IP addresses (like LAN 10.0.0.53) after this level 2 reset is performed. -
Page 26: Appendix A - Connector Pinout & Related Specifications
(between +12 et +24 VDC) DI_COM Ground of the input (isolated) Input signal 1 Input signal 2 Power in VDD + between +12 et +24 VDC Power in GND - Functional Earth Page 26 / 30 eWON COSY 131 | IG 022... -
Page 27: Specification Of The External Power Supply
From 3,8 mA @ 12 VDC to 8,2 mA @ 24 VDC current range 2 When the eWON COSY reboots, a short phase of ON state is part of the starting process. Page 27 / 30 eWON COSY 131 | IG 022... -
Page 28: Specifications
The maximum current flow inside this transistor has a value above the one specified in the eWON, in order to cope with the switching power losses. The transistor used is in an open drain type with predrive. This means the relay power supply has to be supplied from an external source to the predrive electronics. -
Page 29: Used Wireless Frequencies
A.4 - Used Wireless Frequencies Channels 12, 13 & 14 are not supported • Used channels and frequencies are between: Channel 1 - 2,412 Ghz and 11 - 2,462 Ghz Page 29 / 30 eWON COSY 131 | IG 022... -
Page 30: Revision
Note concerning the warranty and the rights of ownership: The information contained in this document is subject to modification without notice. Check http://support.ewon.biz for the latest documents releases. The vendor and the authors of this manual are not liable for the errors it may contain, nor for their eventual consequences.
