eWON 2101CD Installation Manual

eWON 2101CD Installation Manual

Vpn router remote access server (ras) programmable industrial router (pir)

Advertisement

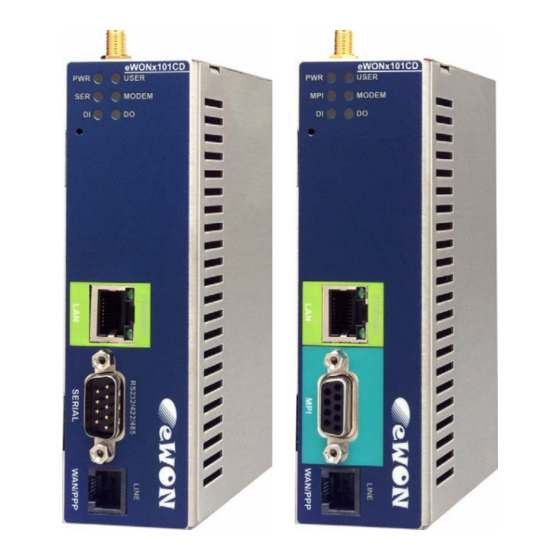

eWON 2101CD™
VPN Router
Remote Access Server (RAS)
Programmable Industrial Router (PIR)
Installation Guide
Rev. 1.6
Cool
Internet
Telecontrol
Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2101CD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for eWON 2101CD

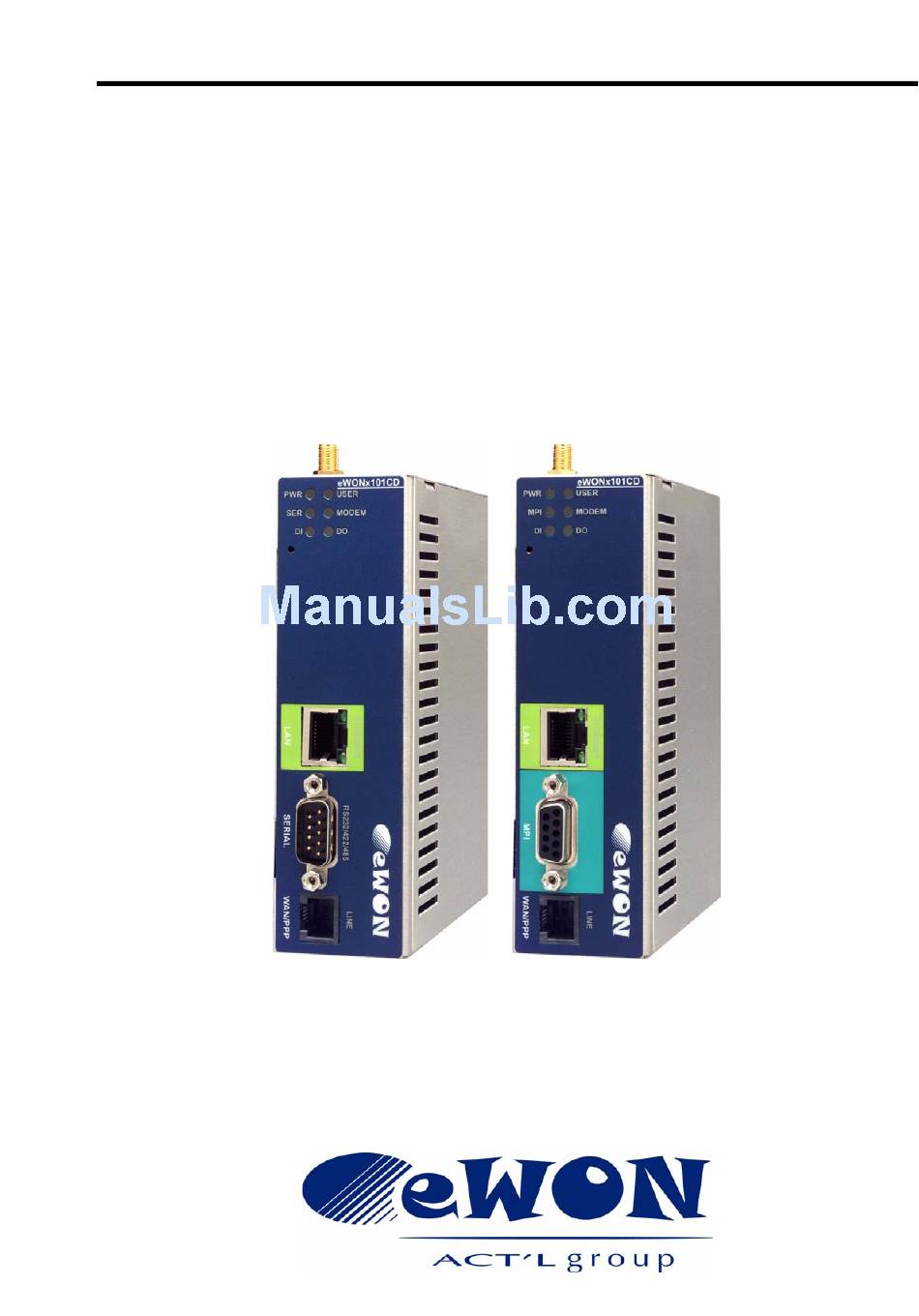

  • Page 1 2101CD™ VPN Router Remote Access Server (RAS) Programmable Industrial Router (PIR) Installation Guide Rev. 1.6 Cool Internet Telecontrol Solutions...
  • Page 2: Table Of Contents

    1.3.4 Ethernet to Serial Gateways ............... 5 1.3.5 Programmable Industrial Router functions ............ 5 1.4 Typical applications..................5 1.5 Part Numbers and internal options ..............6 2 eWON technical documentation............7 3 Housing and markings ..............8 3.1 Housing Interfaces..................8 3.2 Markings ...................... 9 3.3 Safety, Environmental &...
  • Page 3 2101CD™ Installation Guide ver 1.6 8.5 Serial Port ....................31 8.6 MPI port ..................... 32 8.7 PSTN / ISDN phone line connector ..............33 8.8 Antenna ..................... 33 8.8.1 Connector specifications ................33 8.8.2 Antenna specifications ................34...
  • Page 4: Product Description

    The eWON is a terminal that enables access to technical data, whatever their format is. It is configurable by web pages. It is secure because it meets the toughest industrial standards and has restricted access features (required in open networks).
  • Page 5: Ethernet To Serial Gateways

    2101CD™ Installation Guide ver 1.6 1.3.4 Ethernet to Serial Gateways • MODBUS TCP to MODBUS RTU • XIP to UNITELWAY • EtherNet/IP™ to DF1 • FINS TCP to FINS Hostlink • ISOTCP to PPI (optionnaly MPI) • VCOM / ASCII 1.3.5 Programmable Industrial Router functions...
  • Page 6: Part Numbers And Internal Options

    2101CD™ Installation Guide ver 1.6 1.5 Part Numbers and internal options Part Number structure of the eWON product range: EWaabzm Where: aa = Type of hardware platform • 33 = eWON2101CD™ b = Power supply • 2 = Low voltage 12-24DC power supply z = Serial Port type •...
  • Page 7: Ewon Technical Documentation

    2101CD™ Installation Guide ver 1.6 2 eWON technical documentation The eWON technical documentation is structured in 4 different levels as shown in the table below: Level Title Contents Detailed description of the hardware platform, of its interfaces, available options.
  • Page 8: Housing And Markings

    2101CD™ Installation Guide ver 1.6 3 Housing and markings 3.1 Housing Interfaces Power Ground Digital IO GSM antenna connector Leds Reset button hole LAN ETH port Ethernet 10/100 Serial port or MPI port WAN PPP port Din rail latch (phone line) &...
  • Page 9: Markings

    (*) For HSUPA modem, the SIM card drawer is located on eWON top side. See “Embedded HSUPA modem (optional)” on page 19. 3.2 Markings The identification label of the eWON is placed at the left hand side of the housing. The label is composed of the following fields: Device Type and Optional...
  • Page 10: Safety, Environmental & Regulatory Information

    • At least 20 cm (7.88”) separation distance between the antenna and the user’s body must be maintained at all times. • The eWON and its antenna must not be collocated or operating in conjunction with any other transmitter or antenna.
  • Page 11: Certifications

    20 centimeters is normally maintained between radiating structures and the body of the user or nearby persons.” 3.3.5 Certifications Please check our http://wiki.ewon.biz/Support/ page to get the current versions of: • Declaration of Conformity (DoC) • Other official documents including certificate...
  • Page 12: Equipment Information And Versions

    Installation Guide ver 1.6 3.4 Equipment information and versions The eWON hardware and software revisions can be checked with a web browser on the eWON server. Once logged onto the eWON, clicking on the eWON logo shows these revisions. IP address...
  • Page 13: Mechanical Outline

    The eWON must be fastened on a 35mm DIN rail compliant with EN50022. To put the unit in place, insert the upper slider into the upper part of the rail, with the eWON™ tiled around 20°. Then push and rotate the eWON™ downward to put the unit right.
  • Page 14: Mounting And Environmental Conditions

    3.7 Preparing the installation The recommended free space in the cabinet for the eWON should be at least: 80-mm wide x 200-mm high x 160-mm deep (terminal block excluded). A piece of rigid DIN-rail profile (flat 35mm wide) of suitable length should be firmly fastened, horizontally, in the middle of the area.
  • Page 15: Front Panel Control Leds

    1.6 3.8.1 Auto fuse An auto fuse placed just after the power input protects the eWON devices against short circuits. This component returns by itself to its normal state when the short circuit has disappeared and after the component has been cooling down. Would this fuse happen to operate, please check the device for presence of loose metal parts inside likely to generate a short circuit.
  • Page 16: Specifications Of Communication Interfaces And I/Os

    2101CD™ Installation Guide ver 1.6 5 Specifications of communication interfaces and I/Os Ethernet Port The eWON2101CD has one ethernet interface: • a LAN (Local Area Network) with one port Specification Value Applicable standard 10/100BaseTX Isolation 1,5 kV Pinout RJ45 connector...
  • Page 17: Embedded Gprs-Edge Quad Band Modem (Optional)

    2101CD™ Installation Guide ver 1.6 5.4 Embedded GPRS-EDGE quad band Modem (optional) Specification GPRS-EDGE Quad band EGSM Bands 850/900/1800/1900 E-GPRS Class Class 10 Max baud rate 115 kbps Compliant to standards R&TTE, CE, FCC Certificate number Antenna connector (*)
  • Page 18: Embedded Umts Modem (Optional)

    2101CD™ Installation Guide ver 1.6 5.5 Embedded UMTS Modem (optional) Specification UMTS Global (850/900/1800/1900 Quad band EGSM MHz) Bands Tri band UMTS/HSDPA (850/1900/2100 MHz) GPRS Multi-slot Class 12 Class EDGE Multi-slot class 12 Max baud rate 230 kbps Compliant to standards R&TTE, CE, FCC...
  • Page 19: Embedded Hsupa Modem (Optional)

    (*) Tightening torque for SMA antenna connector: MAX 0.5N.m (manual tightening should be used as a reference). See “Antenna” on page 33. 5.6.1 SIM-card installation (HSUPA modem) For HSUPA modem only, the SIM-card drawer is located on the top of the eWON. SIM-card drawer page 19 of 34...
  • Page 20: Configurable Serial Port

    2101CD™ Installation Guide ver 1.6 5.7 Configurable serial port Specification Value Physical modes (configurable) RS232/RS485/RS422 Isolation Not isolated Pinout connector See label and appendix (Serial Port on page 31) Table 10: Serial port specification The configuration of the physical serial mode is done by a set of 4 dip switches located on left side of the unit.
  • Page 21: Mpi Port

    2101CD™ Installation Guide ver 1.6 5.8 MPI port The MPI port is easily identifiable with its light blue square surrounding a female DB9 connector. Specification Value Physical mode • kBauds • 19.2 kBauds • 45.45 kBauds • 93.75 kBauds •...
  • Page 22: Digital Output

    This digital output is activated by an open drain MOSFET transistor driven by an optocoupler. The maximum current flow into this transistor has a characteristic above the value specified in the eWON, in order to cope with the switching power losses. The transistor used is in an open drain type with pre drive. This means the relay power supply has to be supplied from an external source to the pre drive electronics.
  • Page 23: Ip Parameters Configuration

    Warning: normally you cannot communicate with a device of which you don’t know the IP parameters. Therefore, there is a special tool (called “eBuddy”) you can download from the eWON Internet site http://www.ewon.biz. Start this application once you have connected your eWON to the network.
  • Page 24: Resets

    You generate this first level reset by pressing and maintaining the reset button during approximately 4 seconds after powering the eWON up until the “USER” LED flashes in red 1x per second. When this state is reached, release the button and wait approximatively 30 secs until the procedure is completed. The eWON restarts automatically and is ready to communicate.
  • Page 25: Technical Support

    You will also find usefull documentation at http://support.ewon.biz Appendix: Pinouts and connections 8.1 Power Supply Figure 10: Power supply connector: eWON Mating female connector (included) • Manufacturer: Phoenix Contact GmbH, http://www.phoenixcontact.com Part Number: GMSTB 2,5/2-STF-5.08 • Pinout (see label)
  • Page 26: Ethernet

    These cables have 8 copper conductors and are known as UTP Class 5 with RJ45 terminations at both ends. The type of cable (straight or crossed) depends on the equipment the eWON will be connected to. The most current cases are the direct connection with a PC (crossed) and the connection through a hub/router (straight).
  • Page 27: Direct Connection

    Installation Guide ver 1.6 8.2.2 Direct connection If the eWON is connected directly to a PC, then use the crossed cable: Crossed cable As the LAN interface is “autosense”, you can use a crossed or straight ethernet cable, but generally, a direct connection is done with a crossed cable.
  • Page 28: Connection Over Hub/Router

    8.2.3 Connection over hub/router If the eWON is connected to a hub, it has to be connected like any other device, with a straight cable. Again, the wiring is as shown on the following picture, and care should be taken to keep the RX and TX signals on...
  • Page 29: Rj45 Connector

    2101CD™ Installation Guide ver 1.6 8.3 RJ45 connector The RJ45 connector has got the following pins numbering, as it can be seen on the following picture, showing it from different angles: page 29 of 34...
  • Page 30: Input/Outputs

    2101CD™ Installation Guide ver 1.6 8.4 Input/Outputs Mating female connector (included): Manufacturer: Sauro http://www.sauro.net/ Part Number: CTF050VT Description Output digital signal (0V ground) DO_GND connected to the emitter of the transistor Output digital signal connected to the drain of the MOSFET transistor...
  • Page 31: Serial Port

    2101CD™ Installation Guide ver 1.6 8.5 Serial Port Mating female connector (not included): Type Female DB9 with 4/40 blocking screws Pinout serial port (according to mode): RS232 RS485 RS422 Table 18: Pinout serial port page 31 of 34...
  • Page 32: Mpi Port

    2101CD™ Installation Guide ver 1.6 8.6 MPI port Mating male connector (not included): Type Male DB9 with 4/40 blocking screws MPI port pinout (DB9 female): B(+) A(-) Table 19: MPI port page 32 of 34...
  • Page 33: Pstn / Isdn Phone Line Connector

    • ISDN phone line mating male connector pinout (RJ11): Description Table 21: ISDN connector pinout 8.8 Antenna 8.8.1 Connector specifications For eWON with GSM/GPRS/EDGE/HSUPA modem, the antenna connector is placed on the top of eWON. Specification Value Type SMA-F MAX 0.5N.m...
  • Page 34: Antenna Specifications

    2101CD™ Installation Guide ver 1.6 8.8.2 Antenna specifications For eWON with GSM/GPRS/EDGE/HSUPA modem, the antenna specification is as follows: Specification Value Type Quadband 850/900/1800/1900 MHz Impedance 50 Ohms Antenna used must not exceed a gain of: GPRS 1.4 dBi @ 850 MHz Gain 3.0 dBi @ 1900 MHz...
