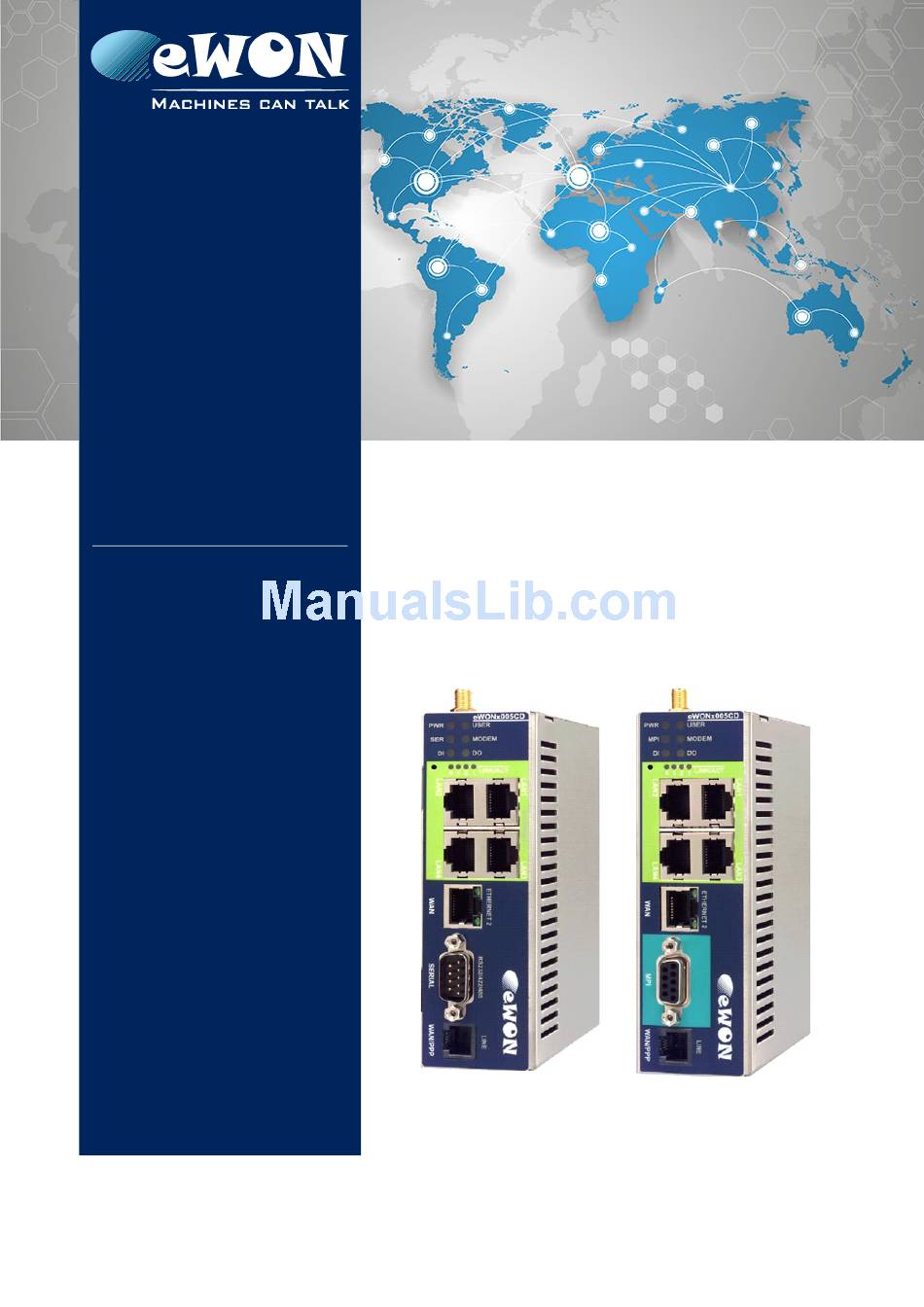

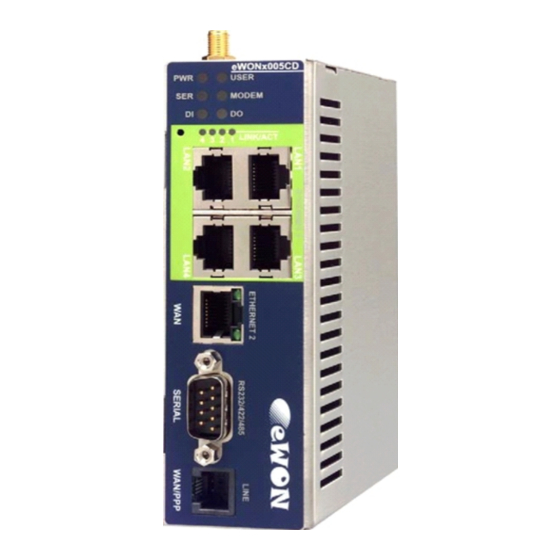

- Page 1 4005CD Installation Guide IG 002 / Rev. 1.9 This installation guide describes the hardware of the eWON 4005CD and explains how to get started with support.ewon.biz...
-
Page 2: Table Of Contents
1.3.5. Programmable Industrial Router functions ............... 5 1.3.6. Datalogger ........................5 1.4. Typical applications ........................6 1.5. Part Numbers and internal options .................... 6 2. eWON technical documentation ..................8 3. Housing & markings ......................9 3.1. Housing interfaces ........................9 3.2. Markings ..........................10 3.3. - Page 3 Serial Port ............................. 32 MPI Port ............................33 PSTN/ISDN Phone line connector ....................34 Antenna ............................35 Antenna for HSUPA EW4620B [Since S/N 1537-0108-xx included] ..........36 Revision ..........................37 Revision History ..........................37 Page 3 / 39 eWON 4005CD | IG 002...
-
Page 4: Product Description
The eWON4005CD™ can optionally embed a modem (PSTN, ISDN, GPRS-EDGE or HSUPA). The eWON range supports the TCP/IP and PPP protocols. This brings you all the benefits of an universally recognized standard network. It also allows you to use popular software tools like Internet Explorer, FTP client, SNMP Manager, Mail Recipient …... -
Page 5: Functions Of The Ewon4005Cd
• FINS TCP to FINS Host link • ISOTCP to PPI (optionally MPI) • VCOM / ASCII 1.3.5. Programmable Industrial Router functions • Automatic routing of protocols • Programmable routing from I/O and Tag names (BASIC) Page 5 / 39 eWON 4005CD | IG 002... -
Page 6: Datalogger
• Remote programming • Interface for Application Service Providers (ASP) • Datalogging 1.5. Part Numbers and internal options Part Number structure of the eWON product range: EWaabzm aa = Type of hardware platform 46 = eWON2005CD™ b = Power Supply... -
Page 7: Chapter 1 Product Description
56 (PSTN 56 modem) EW46207 eWON4005CD™/GPRS-EDGE (GPRS-EDGE modem) EW4620A eWON4005CD™/HSUPA (HSUPA Tri-band modem) EW4620B eWON4005CD™/UMTS/HSUPA (HSUPA Penta-band modem) EW46264 eWON4005CD™-MPI/PSTN 56 (PSTN 56 modem) Examples of Part Numbers for the eWON4005CD™ platform: Page 7 / 39 eWON 4005CD | IG 002... -
Page 8: Ewon Technical Documentation
How to do a PING function with Basic • eWON serial number structure • eWON modem type • • All those manuals are available for download in PDF format on the eWON website: http://support.ewon.biz. Page 8 / 39 eWON 4005CD | IG 002... -
Page 9: Housing & Markings
Chapter 3 Housing & markings 3. Housing & markings 3.1. Housing interfaces Page 9 / 39 eWON 4005CD | IG 002... - Page 10 Chapter 3 Housing & markings (*) For HSUPA modem with part number EW2620A only, the SIM card drawer is located on eWON top side. See Embedded HSUPA modem Page 10 / 39 eWON 4005CD | IG 002...
-
Page 11: Markings
Housing & markings 3.2. Markings The identification label of the eWON is placed at the left hand side of the housing. The label is composed of the following fields: The eWON Serial Number (SN) is an important traceability tool both for the user and for the manufacturer. -
Page 12: Safety, Environmental & Regulatory Information
1. This device may not cause harmful interference 2. This device must accept any interference received* (*including interference that may cause undesired operation) The telecommunication modules used into the eWON routers meets regulatory Page 12 / 39 eWON 4005CD | IG 002... -
Page 13: Certifications
Other official documents including certificates • 3.4. Equipment information & versions The eWON hardware and software revisions can be checked with a web browser on the eWON server. Once logged onto the eWON, clicking on the eWON logo shows these revisions. -
Page 14: Mechanical Outline
The eWON must be fastened on a 35mm DIN rail compliant with EN50022. To put the unit in place, insert the upper slider into the upper part of the rail, with the eWON™ tiled around 20°. Then push and rotate the eWON™ downward to put the unit right. -
Page 15: Mounting & Environmental Conditions
Housing & markings 3.6. Mounting & environmental conditions The eWON unit has an IP31 protection grade. It is therefore not suited for outdoor mounting. The design of the unit is such that it has to be integrated in an enclosed electrical cabinet, protected from excessive heat, humidity and dust. -
Page 16: Specification For External Power Supply Selection
Equipment Supplied by Class 2 or Level 3 Power Supply. 3.8.1. Auto-fuse An auto fuse placed just after the power input protects the eWON devices against short circuits. This component returns by itself to its normal state when the short circuit has disappeared and after the component has been cooling down. -
Page 17: Front Panel Control Led's
Chapter 4 Front panel control LED's 4. Front panel control LED's Front panel LED's description Page 17 / 39 eWON 4005CD | IG 002... -
Page 18: Specifications Of Communication & I/Os Interfaces
See PSTN/ISDN Phone Line Leased Line mode 5.3. Embedded ISDN Modem (optional) Specification PSTN 56k ISDN specification ISDN BRI S0.I.430 Type 1B+D Max baud rate 64 Kb Certification - - - Page 18 / 39 eWON 4005CD | IG 002... -
Page 19: Embedded Gprs-Edge [Quad-Band] Modem (Optional)
R&TTE, CE, FCC Certificate number - - - Antenna connector (*) Type SMA-F (*) Tightening torque for SMA antenna connector: MAX 0.5N.m (manual tightening should be used as See Antenna a reference) Page 19 / 39 eWON 4005CD | IG 002... -
Page 20: Embedded Umts Modem (Optional)
R&TTE, CE, FCC Certificate number - - - Antenna connector (*) Type SMA-F (*) Tightening torque for SMA antenna connector: MAX 0.5N.m (manual tightening should be used as See Antenna a reference) Page 20 / 39 eWON 4005CD | IG 002... -
Page 21: Sim-Card Installation
GPRS quad band Modem • UMTS Modem • UMTS/HSUPA Modem with part number EW4620B • For HSUPA modem with part number EW26206B only, the SIM-card drawer is located on the top of the eWON. Page 21 / 39 eWON 4005CD | IG 002... -
Page 22: Configurable Serial Port
The configuration of the physical serial mode is done by a set of 4 dip switches located on left side of the unit. The settings of the switches are shown in the table below (note: switch 1 is the right one) Page 22 / 39 eWON 4005CD | IG 002... -
Page 23: Mpi Port
The MPI port is easily identifiable with its light blue square (surrounding a female DB9 connector) Specification Value Physical mode Speed 9.6/19.2/45.45/93.75/197.5 kBauds 1.5/3.0/6.0/12.0 MBauds Polarization 100kOhms Termination Pin-out connector See MPI port Page 23 / 39 eWON 4005CD | IG 002... -
Page 24: Digital Input
This digital output is activated by an open drain MOSFET transistor driven by an optocoupler. The maximum current flow into this transistor has a characteristic above the value specified in the eWON, in order to cope with the switching power losses. The transistor used is in an open drain type with pre drive. -
Page 25: Ip Parameters Configuration
WARNING Normally you cannot communicate with a device of which you don’t know the IP parameters. Therefore, there is a special tool (called “eBuddy”) you can download from the eWON Internet site http://www.ewon.biz. Start this application once you have connected your eWON to the network. The application will scan the whole network and will identify all eWONs that are connected, including their IP parameters (Address and subnet mask) and their serial number. - Page 26 By default, the WAN interface is disabled. Then, first connection must be done by the LAN. Modem Interface (incoming PPP) factory configuration IP address 202.0.0.240 Subnet mask 255.255.255.0 - Note - By default, the incoming PPP connection is allowed. Page 26 / 39 eWON 4005CD | IG 002...
-
Page 27: Resets
IP parameters configuration 6.1. Resets WARNING You should not reset your eWON unless you have been told to do so by someone of our technical support. The concerned files (differs depending on reset type) are totally lost and unrecoverable after being formatted. - Page 28 You absolutely have to wait until the full auto test procedure is completed without interrupting it. If the auto test is interrupted, the flash memory of the eWON will contain random data likely to make it unstable. In such a case you have to redo the full reset procedure from scratch and wait until it is totally completed.
-
Page 29: Appendix A - Pin-Outs & Connections
The Ethernet LAN is a four ports auto-sense Ethernet switch (10/100 Mb). Auto-sense means that you can use both direct and crossed cables. Color & Description Activity No LINK GREEN Fixed LINK GREEN Blinking Activity (RX or TX) Page 29 / 39 eWON 4005CD | IG 002... - Page 30 Pin-outs & connections A.2.2 - Ethernet WAN The eWON can be accessed by a 10/100BaseTX Ethernet connection. This connection can be made with two different cables (straight or crossed). These cables have 8 copper conductors and are known as UTP Class 5 with RJ45 terminations at both ends.
-
Page 31: Direct Connection
Pin-outs & connections A.3 - Direct connection If the eWON is connected directly to a PC, then use the crossover cable: Crossover Cable As the LAN interface is “auto sense”, you can use a crossover or straight Ethernet cable, but generally, a direct connection is done with a crossed cable. -
Page 32: Connection Over Hub/Switch/Router
Appendix A - Pin-outs & connections A.4 - Connection over Hub/Switch/Router If the eWON is connected to a Hub/Switch, it has to be connected like any other device, with a straight cable. Straight Cable Again, the wiring is as shown on the following picture, and care should be taken to keep the RX and TX signals on twisted pairs A.5 - RJ-45 Connector... -
Page 33: Inputs/Outputs
Output digital signal connected to the drain of the MOSFET transistor DO-VDC Common of the external predrive Power Supply Between +12 & +24 VDC DI_GND Ground of the input “Isolated” Input digital signal Page 33 / 39 eWON 4005CD | IG 002... -
Page 34: Serial Port
A.7 - Serial Port Mating female connector (not included): Type: Female DB9 with 4/40 blocking screws Pin-out Serial port (according to mode): RS232 RS485 RS422 RX + TX + RX - TX - Page 34 / 39 eWON 4005CD | IG 002... -
Page 35: Mpi Port
Appendix A - Pin-outs & connections A.8 - MPI Port Mating male connector (not included): Type: Male DB9 with 4/40 blocking screws MPI port pin-out (DB9 female): B (+) A (-) Page 35 / 39 eWON 4005CD | IG 002... -
Page 36: Pstn/Isdn Phone Line Connector
TX + RX + RING RX - TX - The ISDN modem in the appliance shall be connected to the telephone line via an ISDN adapter with adequate insulation from TNV3. Page 36 / 39 eWON 4005CD | IG 002... -
Page 37: Antenna
50 Ohms Devices conformity has been assessed with the reference antenna : Kinsun 6602G01081. eWON reference for the antenna is EW40923 or EW40922 for the antenna with a 2 meters length extension cable. The use of different antenna may affect the compliance of the product. -
Page 38: Antenna For Hsupa Ew4620B [Since S/N 1537-0108-Xx Included]
SMA-F Tightening MAX 0.5N.m (manual tightening should be Torque used as a reference) Antenna specifications: For eWON with UMTS/HSUPA modem (EW4620B), the antenna specification is as follows: Specification Value Type Penta band 850/900/1700/1900/2100MHz Impedance 50 Ohms For products with Penta-band HSUPA modem, the conformity assessment has been performed with the reference antenna : Taoglas TG.09.0113. -
Page 39: Revision
Note concerning the warranty and the rights of ownership: The information contained in this document is subject to modification without notice. Check http://support.ewon.biz for the latest documents releases. The vendor and the authors of this manual are not liable for the errors it may contain, nor for their eventual consequences.
