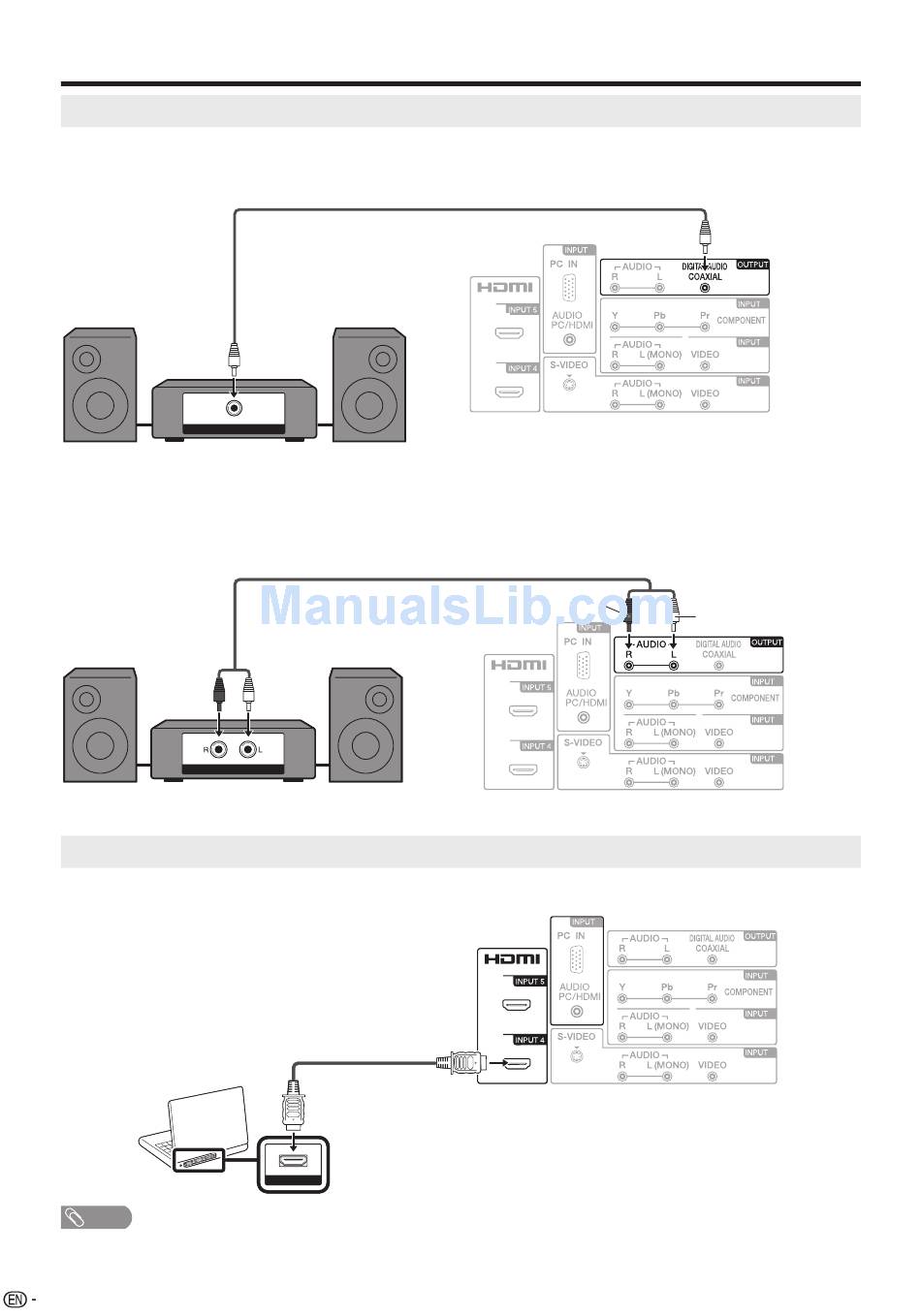

Connecting to External Equipment

Connecting an Audio Amplifier

■ When using coaxial cable:
It is possible to output audio through the DIGITAL AUDIO COAXIAL terminal.
DIGITAL AUDIO INPUT
■ When using audio cable:
This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV's remote
control. (See page 28.)
ANALOG AUDIO IN ANALOG AUDIO IN

Connecting a PC

■ When using HDMI cable (INPUT 4 or 5):
NOTE
• Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certified cable
to the INPUT 4 (HDMI1) terminal, connect an audio cable to the AUDIO PC/HDMI terminal and set "HDMI1 Audio" to "DVI".
(See page 28.)
• The HDMI terminals only support digital signal.
18
COAXIAL
HDMI-certified cable
HDMI OUT HDMI OUT
Coaxial cable
Rear of the TV
(Illustration is LC-26DV28UT.)
Audio cable
AUDIO-R (Red)
Rear of the TV
Rear of the TV
