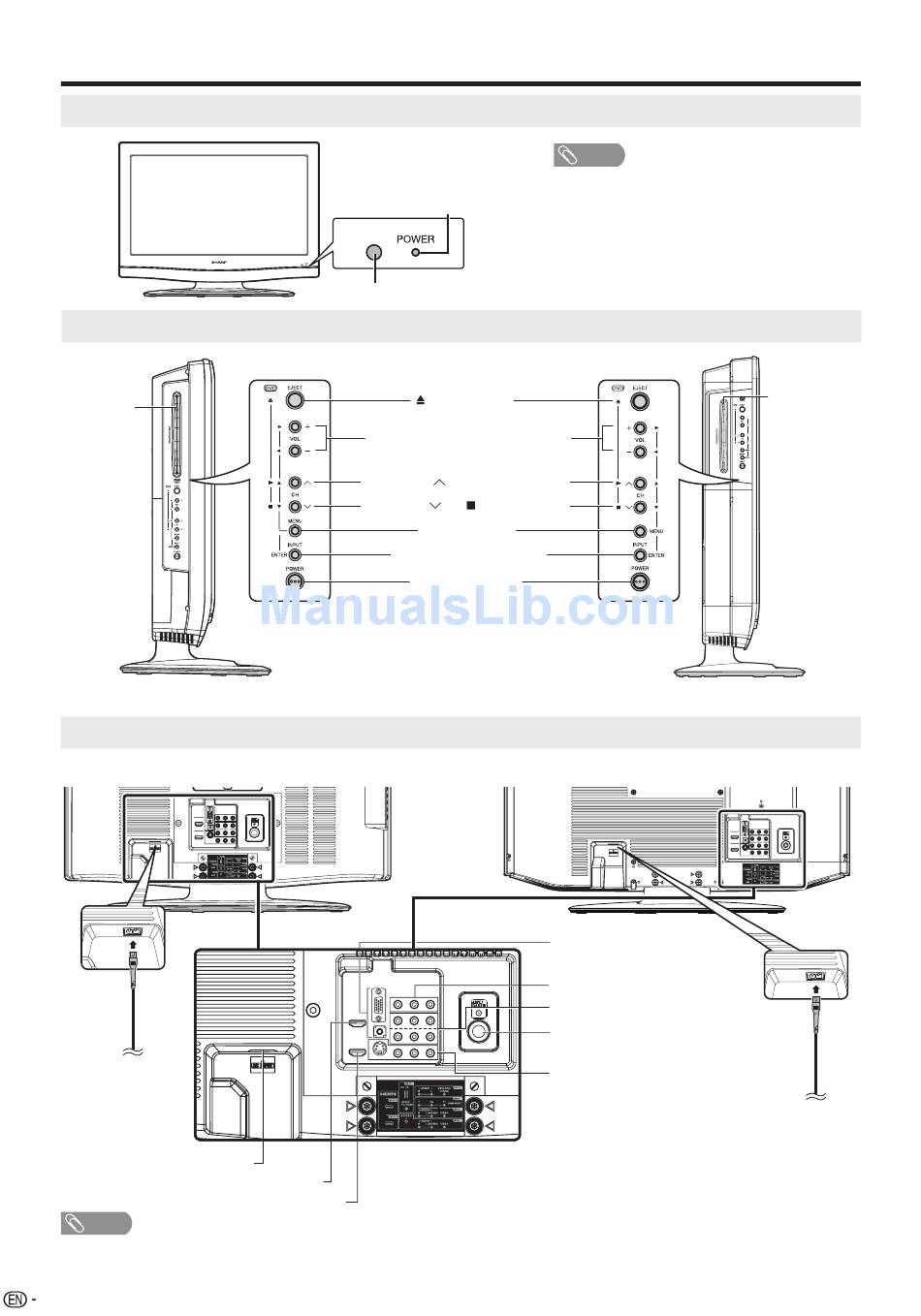

Part names

TV/DVD (Front)

TV/DVD (Left)

Disc slot
(LC-26DV28UT)

TV/DVD (Rear)

(LC-26DV28UT)
AC INPUT
INPUT 5 terminal
NOTE
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The examples used throughout this manual are based on the LC-26DV28UT model.
12
(Illustration is LC-26DV28UT.)
POWER indicator
Remote control sensor
Volume (VOL+/–)/◀/▶buttons
Channel
Channel
INPUT/ENTER button
6
3
2
1
(Illustration is LC-26DV28UT.)
INPUT 4 terminal
NOTE
• The buttons on the main unit have the same
functions as the same buttons on the remote
control. Fundamentally, this operation manual
provides a description based on operation
using the remote control.
EJECT button
/▲/▶PLAY button
/▼/ STOP button
MENU button
POWER button
(LC-32DV28UT)
INPUT 6 terminals
OUTPUT terminals
INPUT 2/3 terminals
ANT./CABLE in
INPUT 1 terminals
6
3
2
1
Disc slot
(LC-32DV28UT)
6
3
2
1
