Connecting to External Equipment

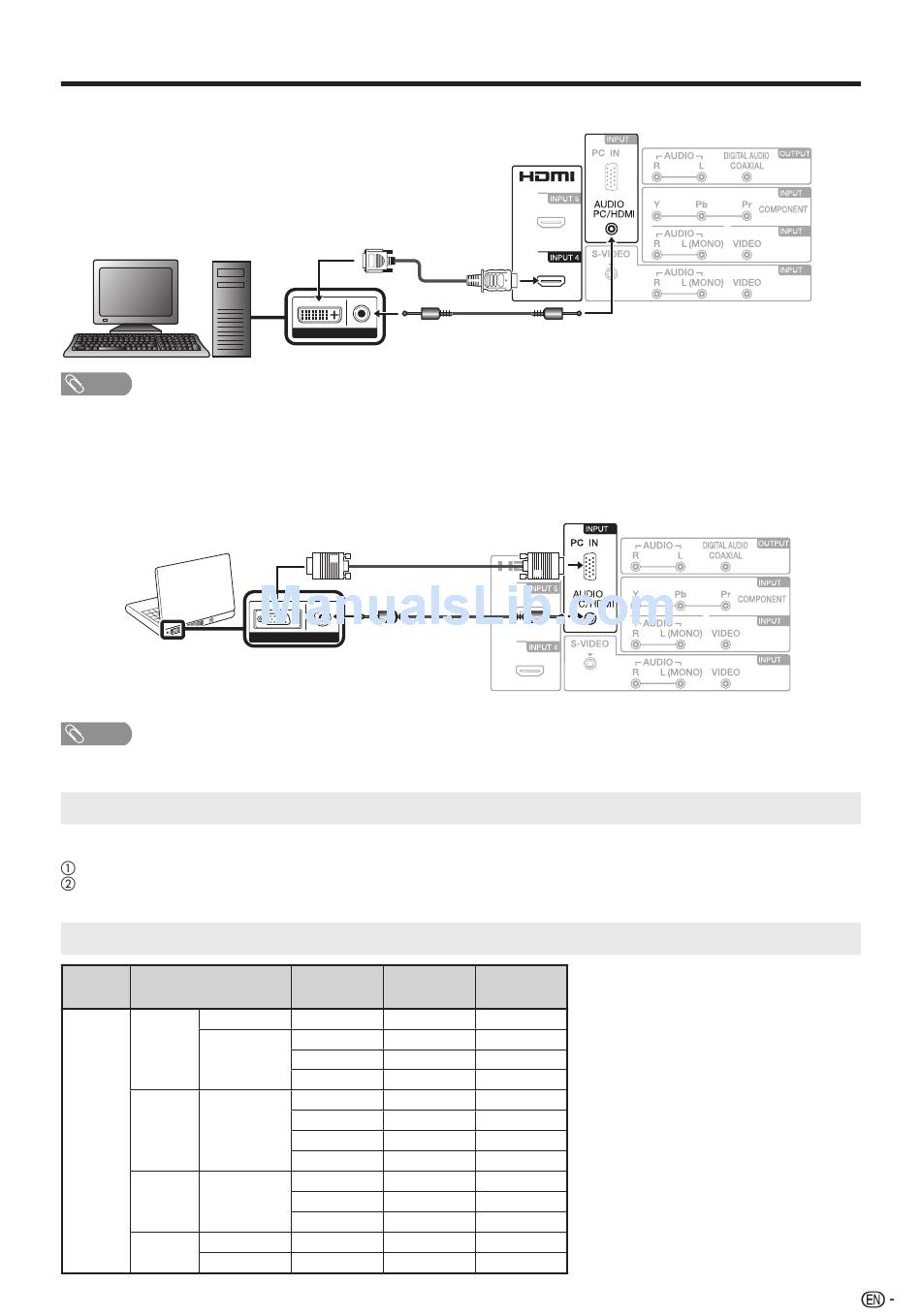

■ When using DVI-HDMI conversion cable (INPUT 4):
NOTE
• When using an DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting an DVI-HDMI conversion cable to the INPUT 4 (HDMI1) terminal, connect an audio cable to the AUDIO PC/
HDMI terminal and set "HDMI1 Audio" to "DVI". (See page 28.)
■ When using analog RGB cable (INPUT 6):
NOTE
• When using an analog RGB cable, input the audio signal to the AUDIO PC/HDMI terminal of INPUT 6.

Displaying an image from a PC

To view an image from a PC, perform the following procedure.
Select the Input 6 (PC) mode using INPUT on the remote control or the TV/DVD set. (See page 15.)
Adjust the "Picture" items if the PC image does not come in clearly. (See page 28.)

PC compatibility chart

PC Resolution
720 x 400
VGA
640 x 480
SVGA 800 x 600
PC
XGA 1,024 x 768
1,280 x 768
WXGA
1,360 x 768
DVI-HDMI conversion cable
Ø 3.5 mm stereo minijack cable
DVI OUT AUDIO
Analog RGB cable
(D-sub 15pin cable
or VGA cable)
Ø 3.5 mm stereo
RGB AUDIO
minijack cable
Horizontal Vertical
Frequency Frequency
31.5 kHz 70 Hz
31.5 kHz 60 Hz
37.9 kHz 72 Hz
37.5 kHz 75 Hz
35.1 kHz 56 Hz
37.9 kHz 60 Hz
48.1 kHz 72 Hz
46.9 kHz 75 Hz
48.4 kHz 60 Hz
56.5 kHz 70 Hz
60.0 kHz 75 Hz
47.8 kHz 60 Hz
47.7 kHz 60 Hz
Rear of the TV
6
(Illustration is LC-26DV28UT.)
Rear of the TV
6
(Illustration is LC-26DV28UT.)
VESA
Standard
-
○
○
○
○
○
○
○
○
○
○
○
○
3
2
1
3
2
1
19
