DH195,060,***
K71155
Base-top
OR
K11155,**
Base-top
2 pcs
K12123
Shelf
2 pcs
Mounting
Hinge
plate
107 degrees
4 pcs
4 pcs
Screw flh
Bumper
3,5x15 mm
7x1,5
4 pcs
16 pcs
Shelf support
Shelf support
14x12 mm 5
5x7 mm Plast
4 pcs
8 pcs
19-05-2014 1
/
K12122
Shelf
2 pcs
K13515
Back panel
1 pcs
Alu profil
567,5x35x15
2 pcs
BP00020-BP00002-BP00018-BP00031-BP00032
Screw flh
Euro screw
3,5x45 mm
6,3x11 mm
12 pcs
20 pcs
Angle
46x43 mm
4 pcs
MH513,060
HS19260,000
K13536
Back panel
1 pcs
Front list holder
25x10 mm 6
2 pcs
OR
KVIK
K10120
K10120,**
OR
Side
Side
2 pcs
L06465
Door Mano
1 pcs
L00560
Front list Mano
1 pcs
Screw ph
Shelf support
3x16 mm
Adjustable
4 pcs
4 pcs
L06460
Door Mano
1 pcs
1 /
11
Advertisement
Related Manuals for Kvik MH513,060
Summary of Contents for Kvik MH513,060

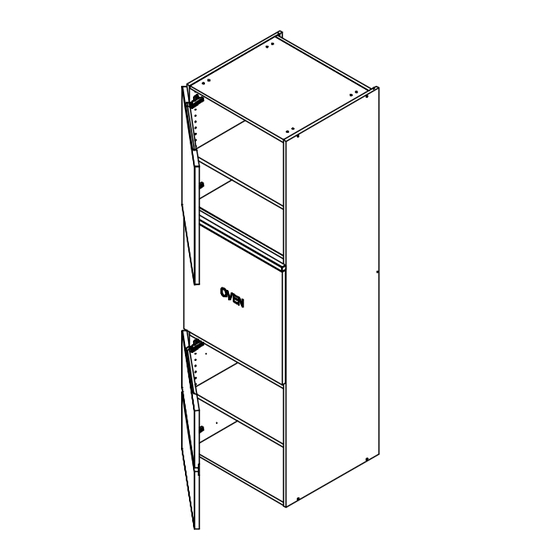

- Page 1 MH513,060 DH195,060,*** HS19260,000 KVIK K71155 Base-top K10120 K12122 K10120,** Side Side Shelf K11155,** Base-top 2 pcs 2 pcs 2 pcs L06465 Door Mano K13536 K12123 K13515 L06460 Back panel Shelf Back panel Door Mano 2 pcs 1 pcs 1 pcs...
