12-04-2018 0b
/
Check out easy
mounting of your kitchen
Left
Right
MH547,060
L12860V
L06461H, mano
Door Mano
L06263V, mano
Door Mano
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
60 cm
L12860H
L06461V, mano
Door Mano
L06263H, mano
Door Mano
L03060, mano
Drawer front Mano
L03060, mano
Drawer front Mano
60 cm
1 /
11
Advertisement
Related Manuals for Kvik MH547-060
Summary of Contents for Kvik MH547-060

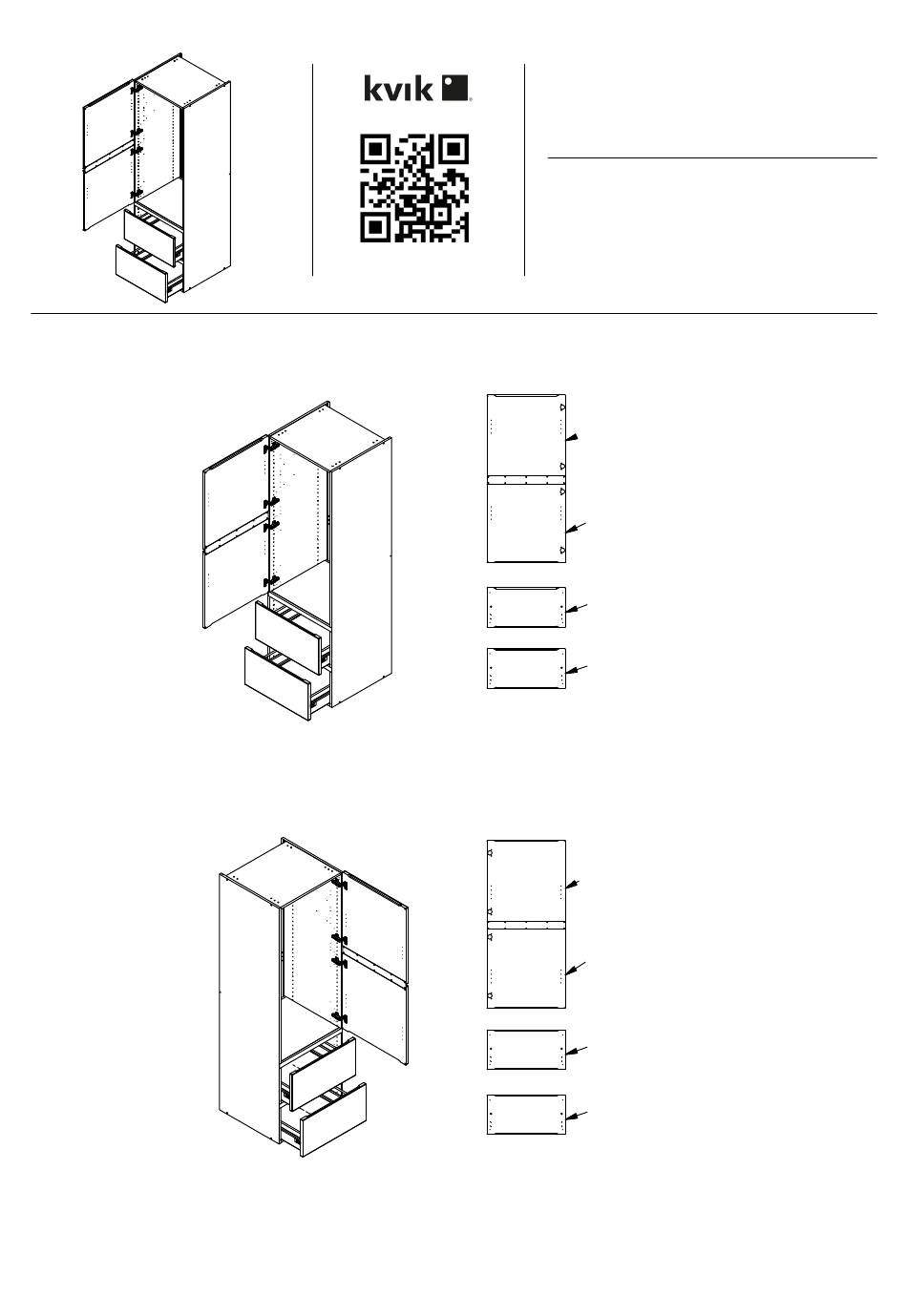

- Page 1 MH547,060 Check out easy mounting of your kitchen L12860V Left L06461H, mano Door Mano L06263V, mano Door Mano L03060, mano Drawer front Mano L03060, mano Drawer front Mano 60 cm Right L12860H L06461V, mano Door Mano L06263H, mano Door Mano L03060, mano Drawer front Mano L03060, mano...
- Page 2 MH547,060 Check out easy mounting of your kitchen DH196,060,000 / 176 HS19260,000 / KVIK K71155 Base-top K10120,76 K10120 K13515 K12123 Side Side Back panel Shelf K11155,76 Base-top 2 pcs 2 pcs 1 pcs 1 pcs L12860V , mano ( Left )
- Page 3 MH547,060 FIG. Side Left Screw flh 3,5x15 mm Euro screw 3 pcs 6,3x11 mm 1 pcs Angle 46x43 mm 2 pcs K10120,76 Side K10120 Side Screw flh 3,5x15 mm Angle 46x43 mm FIG. Side Right Euro screw 6,3x11 mm 1 pcs Screw flh 3,5x15 mm 3 pcs...
- Page 4 MH547,060 FIG. Euro screw Side Left Screw flh 6,3x11 mm 3,5x15 mm 2 pcs 4 pcs Screw flh 3,5x15 mm K10120,76 Side K10120 Euro screw Side Screw flh 6,3x11 mm 3,5x15 mm 3 pcs NB!!! Drawer slide Left 2 pcs FIG.
- Page 5 MH547,060 FIG. K71155 Base-top K11155,76 Base-top K10120 Side K71155 Base-top K10120,76 Side K11155,76 Base-top FIG. Screw flh 3,5x45 mm 4 pcs K10120 Side K10120,76 Side 12-04-2018 0b...
- Page 6 MH547,060 FIG. Screw flh 3,5x45 mm 4 pcs FIG. K12123 Shelf Euro screw 6 , 3x11 mm 4 p cs K12123 Shelf 12-04-2018 0b...
- Page 7 MH547,060 FIG. Screw flh 3,5x45 mm 6 pcs K13515 Back panel FIG. Euro screw Angle 6,3x11 mm 46x43 mm 4 pcs 2 pcs BP21X16 Alu profil 12-04-2018 0b...
- Page 8 MH547,060 FIG. Screw flh 3,5x15 mm 4 pcs BP21X16 Alu profil FIG. Euroscrew 4,2x9,5 4 pcs Rail holder front right 48,5x30 mm 1 pcs Always use # 2 in right side Euroscrew 4,2x9,5 Rail holder front left 48,5x30 mm 1 pcs BP21X16 Alu profil Always use # 1 in left side...
- Page 9 MH547,060 FIG. Screw flh 3,5x15 mm 2 pcs Euro screw 5,8x15 2 pcs NB: Always use # 1 in left side L12860V,mano = L06263V + L06461H, mano L12860H,mano = L06263H + L06461V, mano L06263V / H , Mano Screw flh 3,5x15 mm 10 pcs L06461H / V , Mano...
- Page 10 MH547,060 L12860V / H Door mano Left / Ri g ht Click BP00418 BP00417 Hin g ee1077de g rees Mountin ggp late 4 p cs 4 p cs Bum p er 7x1 , 5 mm Bum p er 7x1 , 5 mm Bum p er 7x1 , 5 mm Right...
- Page 11 MH547,060 Adjustment 12-04-2018 0b 11 /...
