The manuals which are enclosed with the product must be kept throughout the product's entire service life.
Register your fireplace at jotul.com for a 25-year warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F 232 and is the answer not in the manual?

Questions and answers

Related Manuals for Jøtul F 232

Summary of Contents for Jøtul F 232

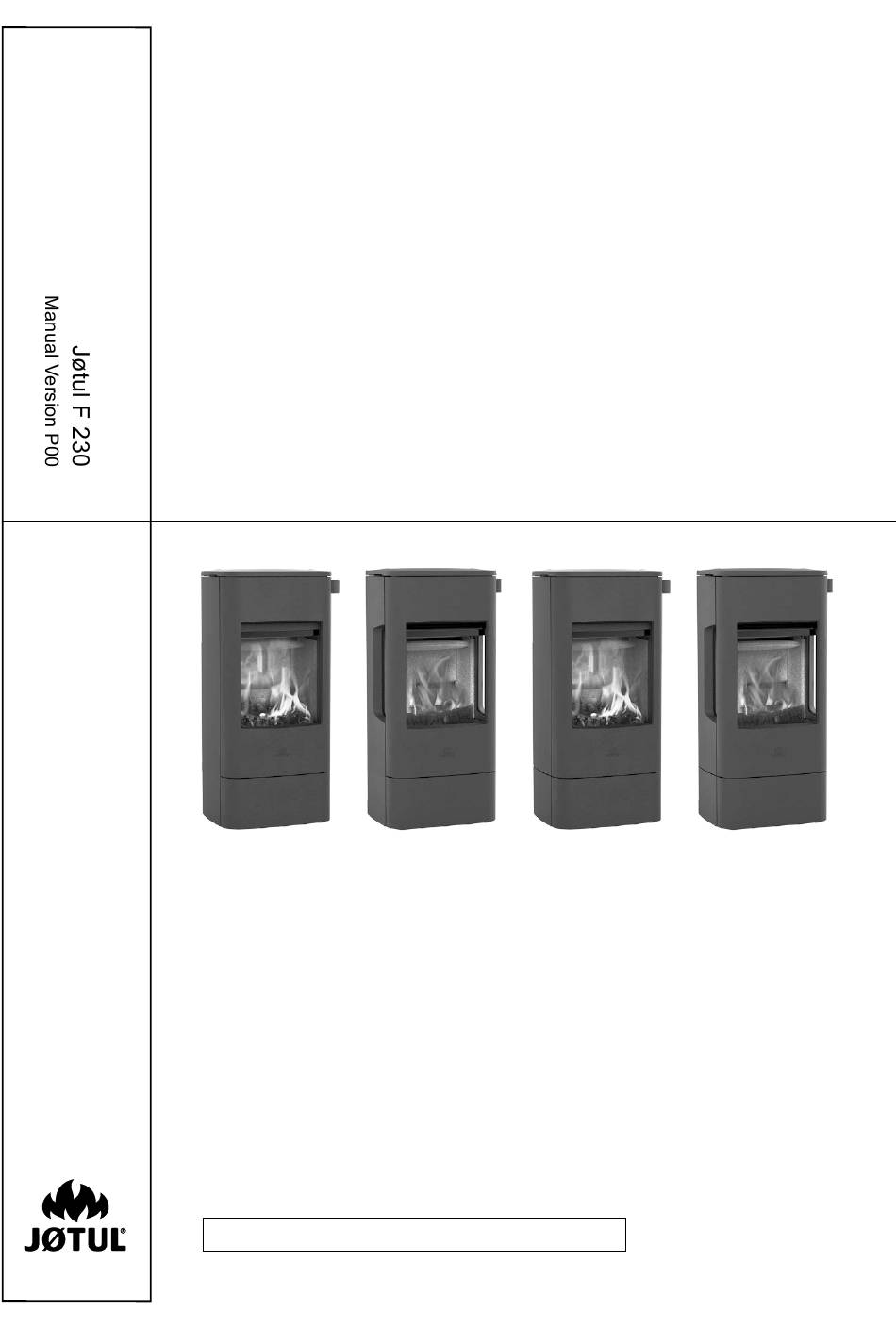

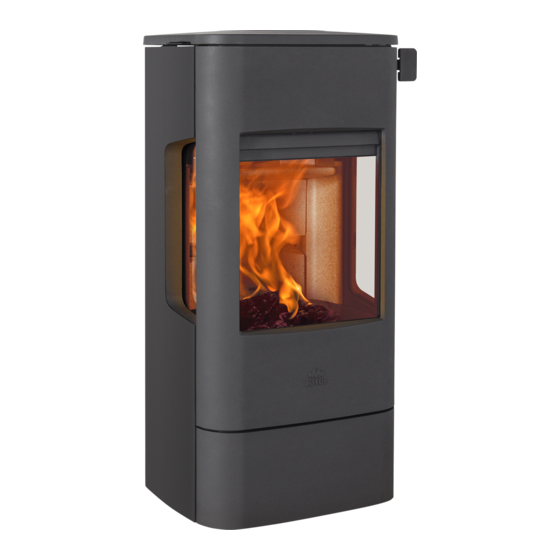

  • Page 1 Jøtul F 230 UK - Installation and Operating Instructions Jøtul F 232 Jøtul F 233 Jøtul F 234 Jøtul F 235 The manuals which are enclosed with the product must be kept throughout the product’s entire service life. Register your fireplace at jotul.com for a 25-year warranty...
  • Page 2 Jøtul AS Fabricante / Fornitore / Vereisten / Lieferant: Product models Jøtul F 230 Series: Produits concernés Jøtul F 232 Modelos Jøtul F 233 Modelli Jøtul F 234 Product modellen Jøtul F 235 Varianten der Feuerstelle Energy efficiency class / Classe énergétique / Clase de eficiencia energética / Classe energetica / Energie...

  • Page 4: Table Of Contents

    Flue outlet: Top, rear Optional Equipment ........18 Flue pipe dimension: Ø 150 mm 10.0 Recycling ............19 Approx. weight: - Jøtul F 232: 129 kg - Jøtul F 233: 130 kg 11.0 Guaranee terms ..........19 - Jøtul F 234: 153 kg - Jøtul F 235:...

  • Page 5: Safety

    Flammable materials should not be • The minimum safety distances when installing and using placed within 1000 mm (F 233/F235) and 1100 mm (F 232/ the fireplace are given in fig. 1. The specified distance to F 234) of the fireplace.
  • Page 6 Jøtul F 232 Jøtul F 233 236,5 236,5 236,5 236,5 236,5 236,5 Jøtul F 230 Målskitse ( model 232 ) Jøtul F 230 Målskitse ( model 233 ) NAVN: Jøtul F 230 EMNE: Målskitse ( model 234 ) TG.NR: 90230168 NAVN: Jøtul F 230...
  • Page 7 Jøtul F 234 Jøtul F 235 236,5 236,5 236,5 236,5 236,5 Jøtul F 230 Målskitse ( model 234 ) Jøtul F 230 Målskitse ( model 234 ) NAVN: EMNE: TG.NR: 90230136 NAVN: EMNE: TG.NR: 90230136 MATERIALE: VÆGT: DATO: 14-05-2018 SIGN: MATERIALE: VÆGT: DATO:...

  • Page 8: Installation

    Fresh air supply 3. Remove the three transportation safety screws (F) in the sides and at the front in order to free the stove from the pallet. The air used for combustion in any well-insulated house needs to be replaced. This is particularly important in houses with mechanical ventilation.
  • Page 9 Min. distance to firewall with insulated flue pipe F *: 175 F **: F *: 411,5 F **: 586,5 F *: 50 F **: Alle mål er minimusmål. Møbleringsafstand: 800 mm. F *: 319 Alle mål er minimusmål. Brandbart materiale F **: Møbleringsafstand: 800 mm.
  • Page 10 4.2 Chimney and flue pipe • The fireplace must only be connected to a chimney and flue pipe approved for solid fuel fireplaces with flue gas temperatures as specified in «2.0 Technical Data» • The specified distance to flammable materials, applies to this stove •...
  • Page 11 Mounting of the balanced flue pipe (delivered as standard) The stove is prepared for a balanced vent from the factory. The chimney consists of a double pipe. The outer pipe is used by the stove to draw in fresh air for the combustion. The inner pipe is used by the stove to exhaust the burnt gases.
  • Page 12 Assembly of flue pipe with ordinary (non-balanced) outlet Uninsulated flue pipe with top outlet 1. Position the product correctly (see fig. 1). 2. Place the cover (accessory) (D) in the top outlet and fasten 2. Position the décor ring (accessory) (C) in the top outlet. 3.
  • Page 13 4.3 Floor plate (Optional equipment) 4.5 Performance check If you are placing the stove on a flammable floor, you must Once the product has been assembled, always check the comply with the national and local regulations on the size of control handles.

  • Page 14: Daily Use

    Wood consumption Jøtul F 230 is equipped with the following operating options: Lever for igniting the stove (A): Jøtul F230 has a nominal heat output of ca. 6 kW. Vertical position (F): Closed Use of wood, with nominal heat emission: Approx. 1,9 kg/h. Horizontal position (G): Open Kindling:...

  • Page 15: Maintenance

    6.0 Maintenance 5.2 Danger of overheating The fireplace must never be used in a manner that causes overheating 6.1 Ash removal Overheating occurs when there is too much fuel and/or too The fireplace has an ash pan which makes it easy to remove much air so that too much heat develops.

  • Page 16: Service

    7.0 Service 6.5 Inspection of the fireplace Jøtul recommends that you personally inspect your fireplace Any unauthorised modifications to the product are carefully after sweeping/cleaning. prohibited! Only original spare parts may be used! Check all visible surfaces for cracks. Also check that all joints are sealed and that the gaskets are in the correct position.
  • Page 17 7.2 Replacing the door glass and Replacing the combustion chamber lining gaskets First remove the baffles (see page 15). 1. Lift the side plates (F), release them from the rear plates (G) and take them out. Please be aware that the sides (F) support the rear plates (G) and that these may therefore tip over, when the sides are taken out.
  • Page 18 7.3 Replacing the side glass and gasket 1. Lift carefully the top plate (A) and place 2 wooden blocks (B) between the stove and the top plate. Unscrew the air vents (C) in each side of the fireplace. Then unscrew the 4 screws (D) holding the lateral plates (E).

  • Page 19: Operational Problemes

    8.0 Operational problems - troubleshooting Poor draught • Check the length of the chimney and that it complies with national laws and regulations. (See also «2.0 Technical data» and «4.0 Installation» (Chimney and flue pipe) • Make sure that the minimum cross section on the chimney is according to «2.0 Technical data»...

  • Page 20: Optional Equipment

    9.0 Optional equipment 10.0 Recycling 9.1 Shaped floor plate 10.1 Recycling packaging Glass, small - art. no. 50052435 Your fireplace is delivered with the following packaging: Glass, large - art. no. 50052436 • A wooden pallet that can be cut up and burned in the fireplace •...
  • Page 21 11.0 Guarantee terms 1. Our guarantee covers: Jøtul AS guarantees that the external cast-iron parts are free from defects in materials or manufacturing at the time of purchase. You may extend the guarantee on the external castiron parts to 25 years from the date of delivery by registering the product on jotul.com, and print out the extended guarantee card within three months of purchase.
  • Page 24 Jøtul pursue a policy of constant product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in the brochure. Quality Jøtul AS has a quality system that conforms to NS-EN ISO 9001 for product development, manufacturing, and distribution of stoves and fireplaces.
