INSTALLING SPM
FSR COMPONENTS
®
– SPINE LINKING
USE THIS PROCEDURE TO LINK SPINE RESTRAINTS TOGETHER
TO CREATE ONE MAIN LINE (OR ANCHOR LINES)

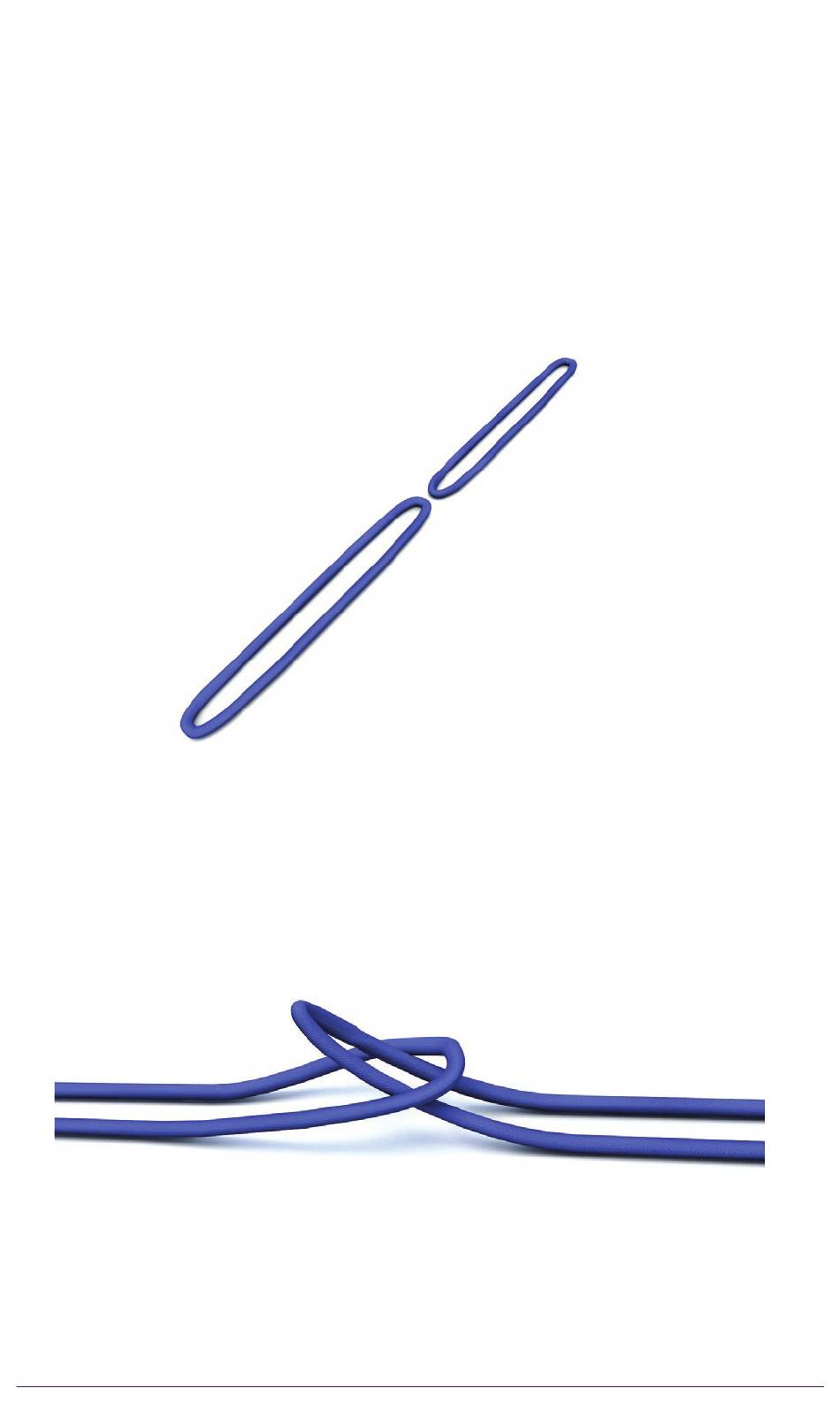

STEP 1
Lay out SPM
FSR Spines end to end as shown. For illustration
®
purposes only, we will consider ends "A" thru "D" for this
procedure.
END "D"
END "C"
END "B"
END "A"
STEP 2
While keeping the "B" end stationary, draw "C" end thru as
shown.
END "C"
END "B"
