Technical Specifications
Speaker
Power rating
Diameter
Cone type
Impedance
Freq Response @ 1KHz +/-3 dB
SPL @ 1W / m ( +/-3dB ) 1 KHz
Matching Transformer
Tapping ( 100V line input )
Primary impedance
Secondary impedance
Physical Dimensions
Grille / enclosure
Cutting hole dimension ( mm )
Overall size
Weight
Colour
Packing Information
Carton box dimensions
Weight
Packing quantity
6W 100V line ( Max 10W )
5" ( 125 mm )
Dual Cone
8 Ohm
150 - 19 KHz
92 dB
1.5 / 3 / 6W 100V line
6.7 K / 3.3 K / 1.67 K Ohm
8 Ohm
Metal grille / ABS plastic
145 mm
165 dia x 110 h mm
740 gms
White
360 W x 400 H x 710 D mm
22.70 kg
24 uts

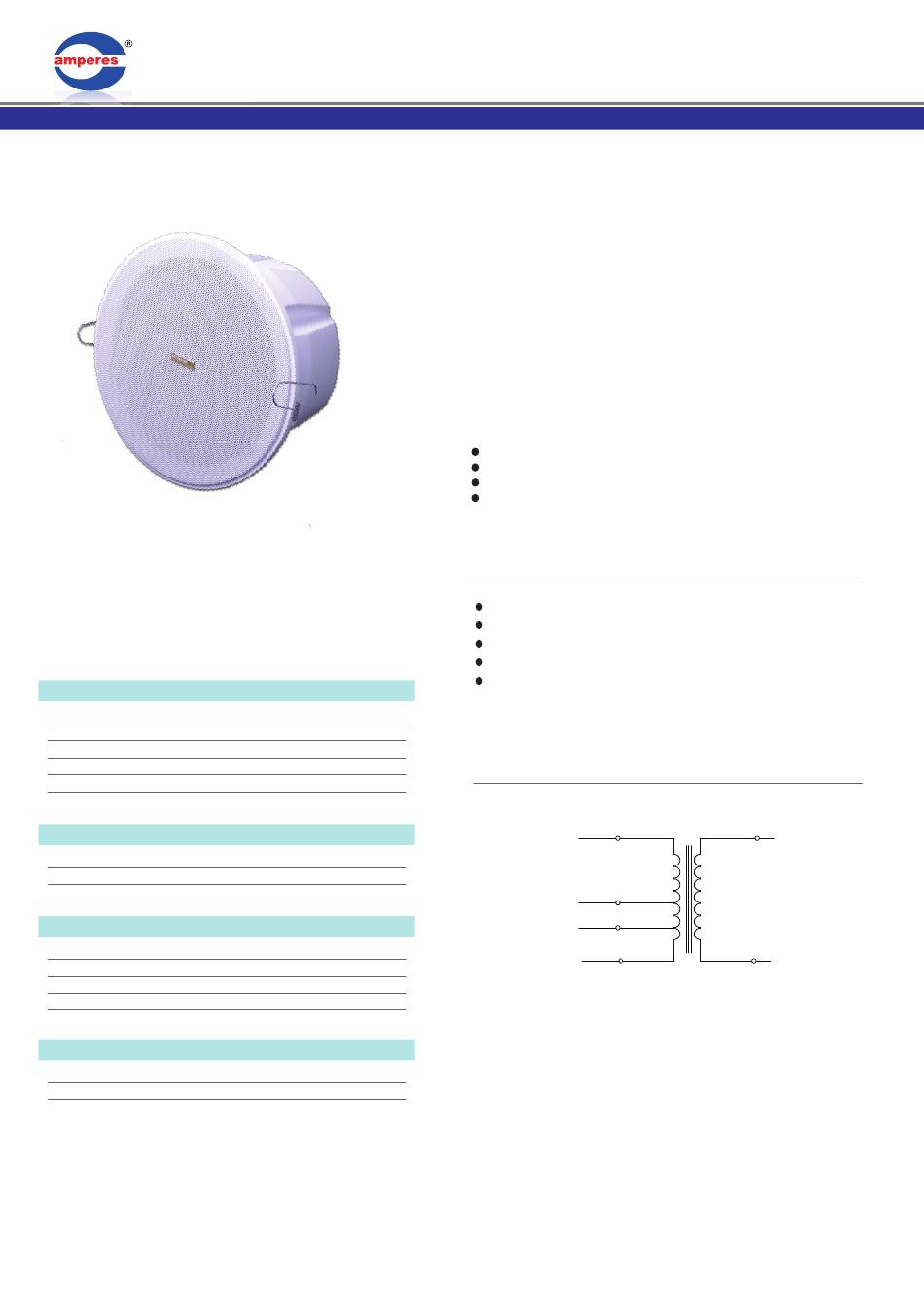

5" 6W 100V Line Ceiling Speaker
Introduction
CS510 is a general purpose and cost effective ceiling speaker with
nominal power rating of 6W 100V line. With only quality of finishing and
optimum sound reproduction in mind, they shall be the best choice to
enhance your installations ! and cost effective too.
Among the outstanding features are the installation mechanism - spring
clips which is flexible to flip but strong in holding.
The slim edge design, coupled with the low profile height, brings out the
coziness of the installation.
It is suitable for Speech and soft background music playback in areas
such as :
Hotel corridors / lobbies
Offices
Shopping centres for general paging and pipe in music
Public areas
Features
Slim edge with low side profile
High quality ABS with optional FR
Easy spring clip installation
Epoxy mesh for rust proof
Non enclosure as optional
Circuit Diagram
Black
COM
Red
6W
Yellow
3W
Green
1.5W
Transformer power tapping
INSTRUCTION MANUAL
CS510
8 Ohm
Secondary to
speaker
