Precision Design, absolute Confidence
Introduction

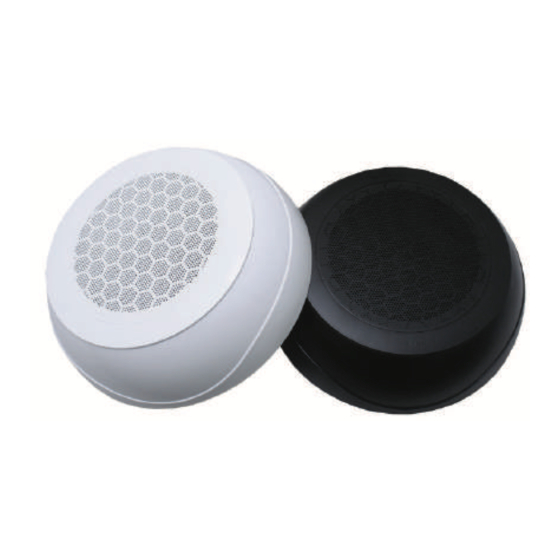

CS516 is a general purpose ceiling surface mount speaker, suitable for slab
mounting. Its dual cone driver delivers good sound reproduction for speech and
background music.

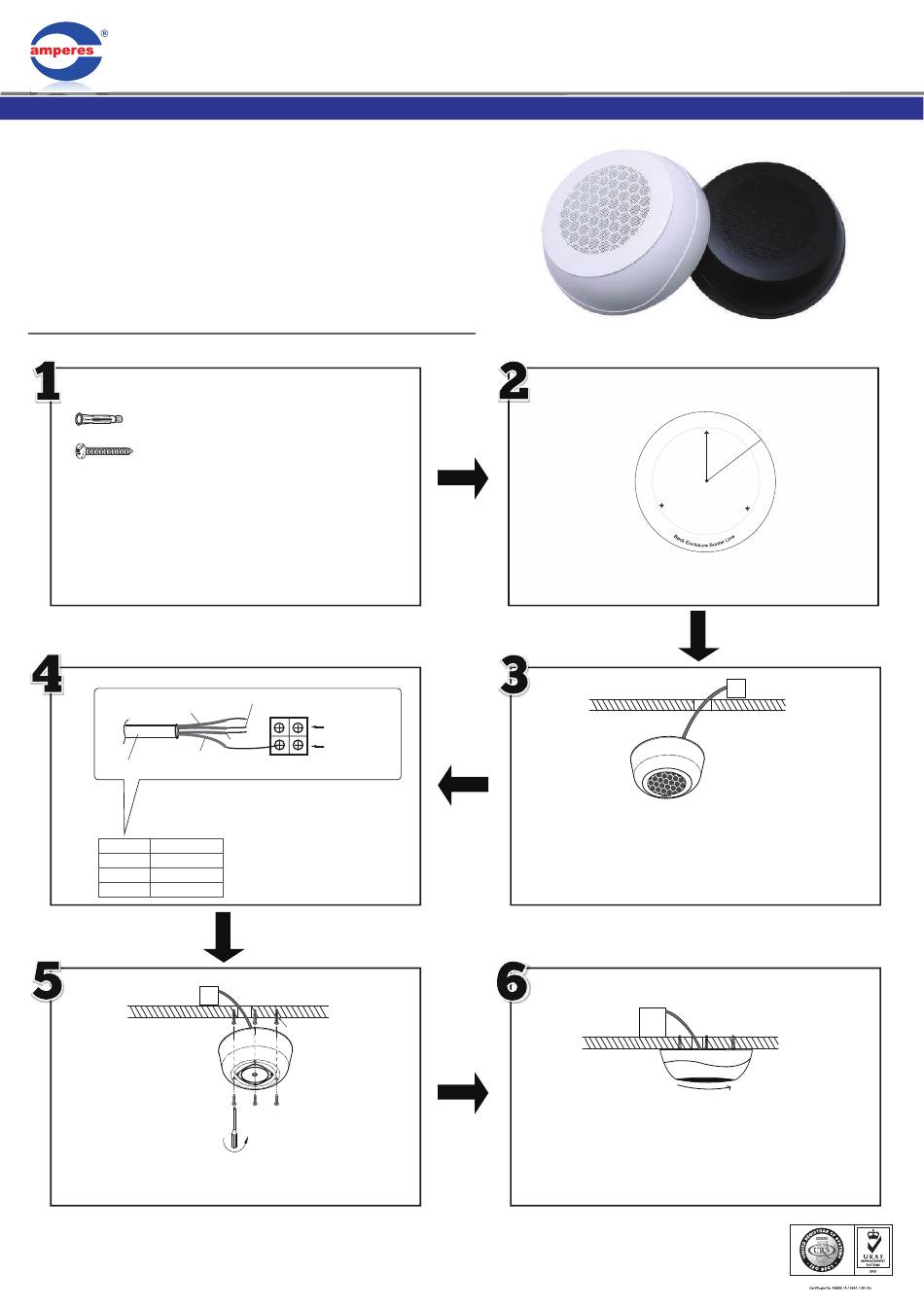

Guide to Installation
Tools for installation
3 pcs x Wall Plug
3 pcs x screw for install speaker to ceiling
Recommended size for screw :
1) Screw
2) Wall Plug
Note: Parts not supplied in package.
Cable Termination
Red
Black
Speaker cable
Connect either the Red, Yellow or Green
wire to the terminal box, depend on the
desired power ratings.
Red
6W
Yellow
3W
Green
1.5W
Black
COM
Mounting speaker to ceiling
Termination box
Speaker
Remove the honeycomb grille by turning clockwise. Thereafter
mount the speaker to the ceiling and fasten properly to secure the
unit.
www.ampereselectronics.com
Diameter
Length
M4
30mm
6mm
30mm
Yellow
Termination box
100V Line
Green
From Amplifier
output
Speaker cable (in conduit)
Ceiling
Wall plug
Screw
CS516 Surface Mount Ceiling Speaker
5" 6W 100V Surface Mount Ceiling Speaker
Mark the screw mounting hole.
M4 Screw Hole
75 mm
M4 Screw Hole
Mark the screw position properly, follow the template provided.
Connect the cable
Speaker
Connect the cable terminal to the speaker cables according to the
required power rating. Terminate the incoming speaker cable to
the selected transformer primary cable using a connector.
Installing the grille to complete the installation.
Termination box
Attach the speaker grille to the body by turning anti clock wise
The installation is complete as shown.
Instruction Manual
111 mm
M4 Screw Hole
Cable from PA rack
Ceiling
Speaker cable (in conduit)
Ceiling
ISO 9001: 2015
Design & Manufacture of Public Address Equipment and Systems
