INSTALLATION GUIDE

CS210 2" 6W 100V CEILING SPEAKER
Introduction
CS210 is a general purpose 2" 6W 100V line ceiling speakers which comes
complete with metal grille and back enclosure. Built with high quality ABS plastics.
It is suitable for paging and BGM delivering clear and crispy sound reproduction.
Among suitable places for installations are :
- Hotel corridors and room foyers
- Small office rooms

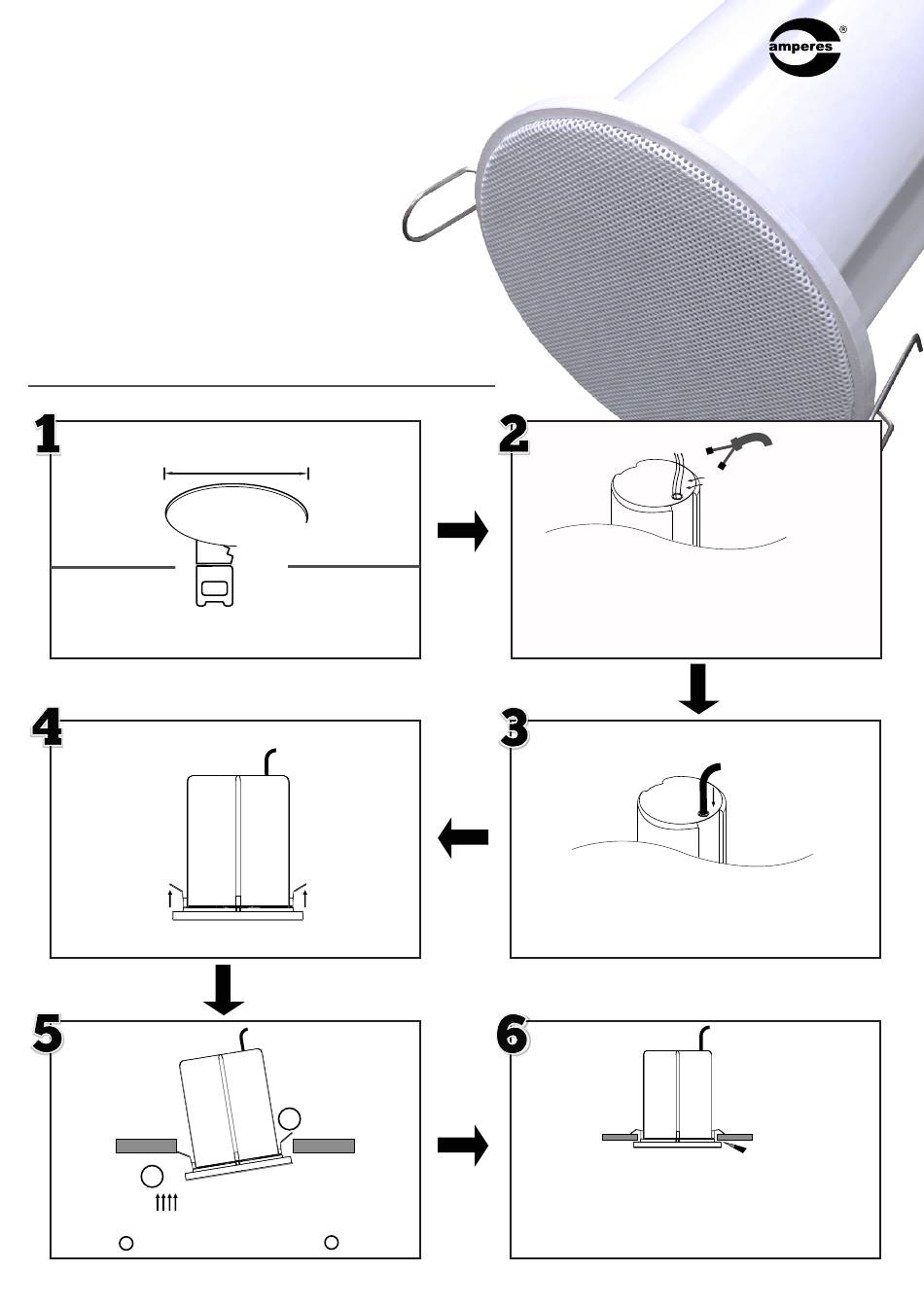

Guide to Installation
Cut the ceiling hole
Cut the ceiling using the template with 86mm diameter
Flip spring clips
Flip the spring clips fully upwards
Insert speaker to ceiling hole
Ceiling
2
Slot the speaker into the cut hole in slant position initially by the
first spring , and thereafter the second spring
1
86 mm
Ceiling
Spring Clip
1
Ceiling
2
Connect cable
connector
Connect the incoming speaker cable to the cables from the
speaker according to the required power rating, as:-
- Black - red ~ 6W
- Black - yellow ~ 3W
- Black - Green ~ 1.5W
Cut off the loose cable's conductor to avoid shorting or tape
them with insulation tape.
Slot the conduit
Slot
Upon completion of cable termination, the connector can be
inserted inside the conduit, and thereafter slot in the conduit into
the speaker hole at the back enclosure. The overall installation
would look neat.
Installation complete
Ceiling
The installation is complete as shown. If is required to uninstall the
speaker, use a flat screw driver to pull it if down the speakers
edge.
Please do it carefully as not to damage the ceiling. The grille can
be opened for inspection by turning it clockwise.
Flexible conduit
20mm Ø
cut off unused cable
Conduit
Ceiling
Flat and sharp screw driver
