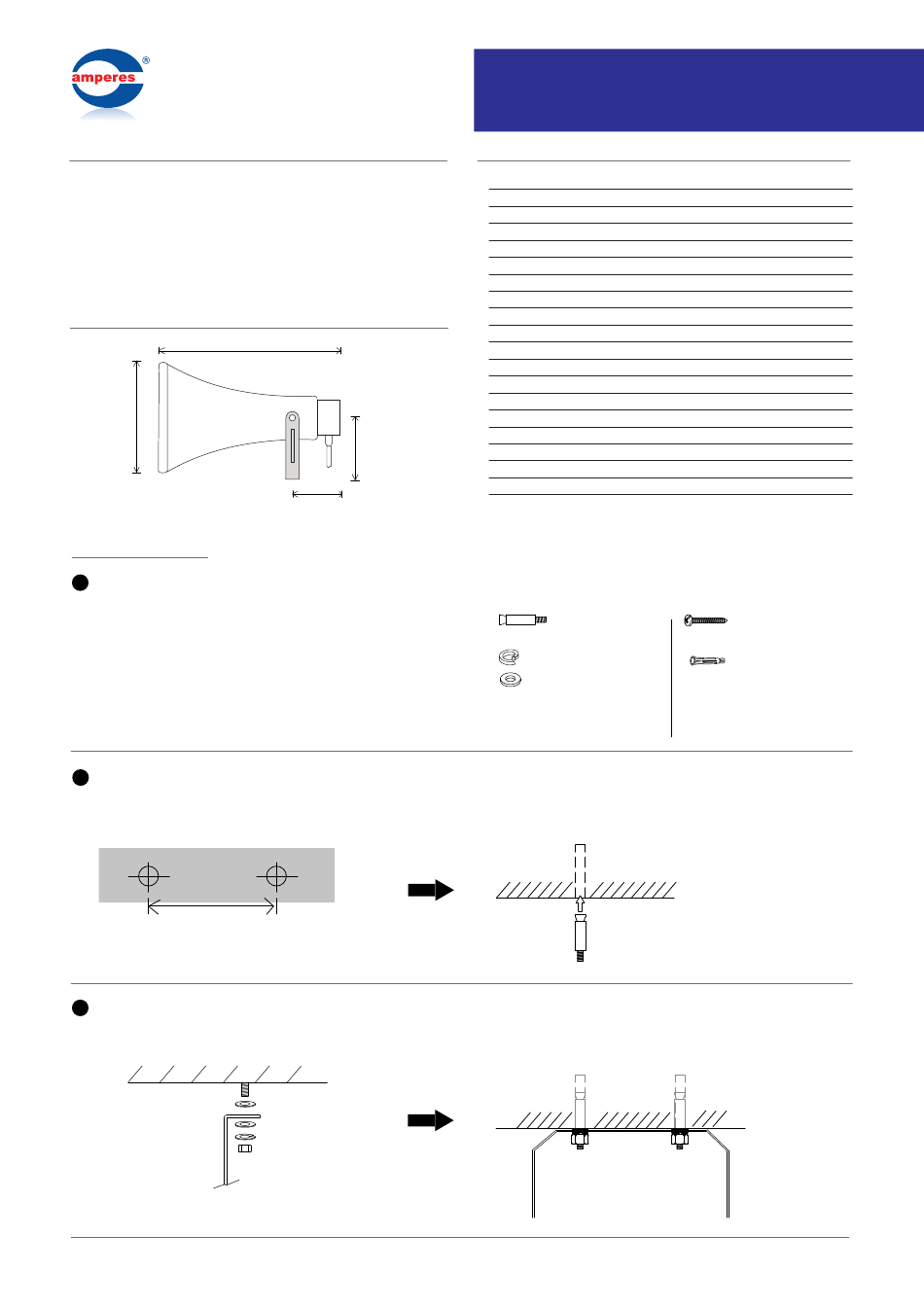

Amperes HS810 Instruction Manual

Precision Design, absolute Confidence
Introduction
HS810 is an outdoor high power clear horn speaker, which is built to differ from other
conventional alumimum flare horns. It has better frequency response, while able to
deliver the distance required with better sound quality, both for voice and non bass
music.
It is rated at IP65, 50W 100V or 100W 8 Ohm with power tapping at 50 / 25 / 12.5 W
100V line. HS810 is suitable for large factories, beaches, mosques and other
installations that require loudness and extra clarity.
Pyhsical Dimensions
465 mm
360 mm
Guide to Installation
1
Unpacking and check contents
Unpack the horn speaker from the carton and the following items shall be
available :
1. Horn speaker with bracket attached
2. Instruction manual
2 Wall / Ceiling bolt mountings
The horn speaker can be mounting on the ceiling or wall. Using bolt and nuts is highly recommended especially for ceiling installation. For wall mounting, using M5 self tapping
screws with wall plugs is possible.
80 mm
Mark and drill holes to the wall / ceiling with drill bit
size suitable to insert M5 expandable bolts
Speaker mounting
3
Mount the horn speaker assembly's bracket to the bolt together with the washer, spring washer and the nuts.
Bolt screw ( min 15 mm )
Speaker bracket
HS810 | 50W 100V Line Outdoor Clear Horn Speaker
180 mm
180 mm
Flat washer
Flat washer
Spring washer
Nut
IP65 50W 100V Line Outdoor Clear Horn Speaker
Technical Specifications
Power rating
Speaker / driver
Operating voltage
Power taps
Frequency response
SPL @ 1W / m
Max SPL @ 1m, 1 kHz
Coverage angle - 1 kHz
- 4 kHz
- 8 kHz
Operating temperature
Humidity
IP rating
Flare / bracket
Overall size ( W/O bracket )
Weight
Colour
Mounting fasteners are not provided. Below are recommended parts for
mounting the speaker
M5 x 50mm expand-
able bolts x 2 pcs
M5 Spring washer x 2
M5 Washer x 2
Recommended for ceiling / slab
mounting
Concrete ceiling
M5 Expansion bolt
Length : Min 50 mm
Concrete ceiling
Tighten the nuts
securely
Speaker bracket
Instruction Manual
HS810
50W 100V line / 100W 8 Ohm
4" woofer + 1" HF
70 / 100V
12.5 / 25 / 50W 100V line
100W @ 8 Ohm
200 - 8 kHz
103 dB
120 dB
73 deg
84 deg
45 deg
-5 to 60 deg
< 90 %
IP 65
Aluminum, MS epoxy coated
360 x 465 mm
3.75 kg
Beige
#10 x 1 1/2" self tapping
screws x 2 pcs
Wall plugs x 2 pcs
PAGE 1
