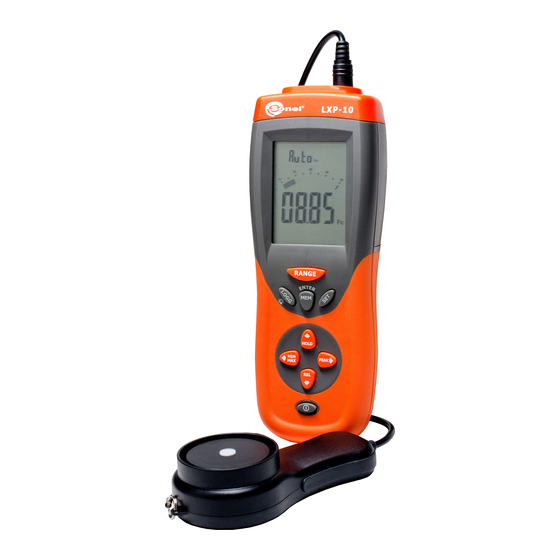

  • Page 3 OPERATING MANUAL DATA LOGGING LIGHT METERS LXP-10B, LXP-10A SONEL SA Świdnica, Poland SONEL TEST & MEASUREMENT Inc. Santa Clara, Ca 95051 USA Version 1.03...
  • Page 4 Important features of the devices include: • maximum resolution of light metering: 0.01 lx (0.001 fc) - LXP-10B, 0.001 lx (0.001 fc) - LXP-10A, • high accuracy and fast response time, •...

  • Page 5: Table Of Contents

    RECOMMENDED LIGHTING..................9 CONNECTION ......................9 REPLACING THE BATTERY ..................9 CLEANING, MAINTENANCE AND CALIBRATION ........... 10 STORAGE ......................10 DISMANTLING AND DISPOSAL ................10 TECHNICAL SPECIFICATIONS ................10 STANDARD EQUIPMENT SUPPLIED BY SONEL INCLUDES: ........11 SERVICE ....................... 12...

  • Page 6: Functional Description

    1 Functional Description Display The main measurement display field. Bar graph - analogue scale for showing rapid changes in light intensity. Other data. Sampling period and units. Date and time. Measurement units. Data logging ON/OFF Memory mode. Additional data Units. Relative measurement.

  • Page 7: Taking Measurements

    3 Taking measurements • Press the power button in order to switch the meter ON. • The device starts in the automatic range selection mode. To change to manual range selection mode press RANGE button for 2 sec. Ranges are selected by pressing the RANGE button. The range is displayed at the top of the display.

  • Page 8: Description Of The Device

    Description of the device Power Button: Turns the light meter ON/OFF. Liquid crystal display 3 3/4": digital display with a maximum reading of 3999, symbols of meas- ured values, symbols of functions, etc. RANGE button: Selects either Manual or Automatic range setting. LOGG button: turns data logger or backlight ON/OFF, or erasing data logger memory.

  • Page 9: Usb Mode

    0 to 100 % when erasing progresses. After erasing the memory, the meter returns to the measurement mode. • Logged data may be read with the Sonel Reader PC software provided with the meter.

  • Page 10: Characteristics Of Spectral Sensitivity

    0,80000 0,70000 0,60000 V(λ)_wzorca reference 0,50000 V(λ)_LXP-10A 0,40000 0,30000 0,20000 0,10000 0,00000 Długość fali w nm WAVELENGTH [nm] LXP-10B LP-10B Charakterystyka korekcji widmowej V(λ) Features of spectral correction V(λ) 1,00000 0,90000 0,80000 0,70000 0,60000 0,50000 V(λ)_wzorca reference V(λ)_LXP-10B 0,40000 0,30000...

  • Page 11: Recommended Lighting

    Turn on the meter, • activate USB mod (see section 4.6), • start "SONEL READER" software to operate the meter. Note: switch OFF the light meter before connecting USB cable to the meter socket. 8 Replacing the battery Note: While performing the measurements with the battery symbol displayed, the user must be aware of additional measurement uncertainties or unstable operation of the device.

  • Page 12: Cleaning, Maintenance And Calibration

    9 Cleaning, Maintenance and Calibration • Clean the white circle on the detector with a damp cloth if necessary. • Do not store the device in conditions of excessive heat or humidity. The calibration interval for the photodetector will vary depending on the operating conditions, but in general, its sensitivity is reduced in direct proportion to the product of light intensity and operating time.

  • Page 13: Standard Equipment Supplied By Sonel Includes

    ......170 mm × 80 mm × 40 mm / 6.7 in × 3.1 in × 1.6 in q) weight ........................390 g / 0.85 lbs interface ............................. USB 13 Standard equipment supplied by Sonel includes: • Hand-held control panel LXP-10 •...

  • Page 14: Service

    SONEL Test & Measurement, Inc. Santa Clara, Ca 95054 USA tel. +1 (408) 988 1346 fax +1 (408) 988 4869 E-mail: office@soneltest.com Web: www.soneltest.com Attention: Service and repairs must be performed only by Sonel or an authorized Sonel service center.
