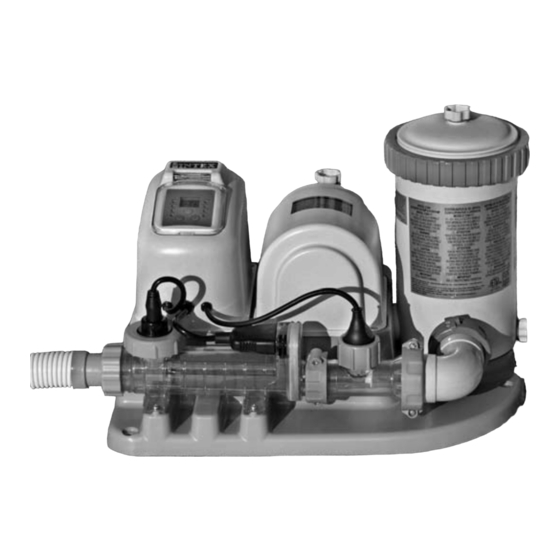

Krystal clear saltwater system & filter pump
Hide thumbs Also See for Saltwater System CS8111:
Table of Contents

Advertisement

Quick Links

(133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5" X 10.3" PANTONE 295U 11/17/2011
Krystal Clear
Saltwater System
& Filter Pump
Model CS8111
For illustrative purposes only.
Don't forget to try these other fine Intex products: pools, pool accessories,
inflatable pools and in-home toys, airbeds and boats available at fine
retailers or visit our website.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance,
Visit www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
Monday through Friday, 8:30am to 5:00pm Pacific Time
IMPORTANT
SAFETY RULES
Read, understand, and follow all
instructions carefully before
installing and using this product.
I I M M P P O O R R T T A A N N T T ! !
1-800-234-6839
English
133
®
133-***-R1-1211

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saltwater System CS8111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intex Saltwater System CS8111

Summary of Contents for Intex Saltwater System CS8111

  • Page 1 & Filter Pump Model CS8111 For illustrative purposes only. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website. I I M M P P O O R R T T A A N N T T ! !

  • Page 2: Table Of Contents

    Product Information & Specifications......10 Setup Instructions............11-14 Salt & Pool Water Volumes..........15 Intex Pools Salt Table............. 16 Intex Pools Operating Time Table......... 17 Intex Pools Cyanuric Acid Table........18 Non-Intex Pools Salt Table..........19 Non-Intex Pools Operating Time Table......19 Non-Intex Pools Cyanuric Acid Table......

  • Page 3: Warnings

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • To reduce the risk of injury, do not permit children to use this product. Always supervise children and those with disabilities.

  • Page 4: Parts List & References

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English PARTS LIST NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 4...
  • Page 5 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English PARTS LIST (continued) * Optional * Optional * Optional * Optional NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 5...
  • Page 6 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 7 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. SPARE PART REF.
  • Page 8 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 8...
  • Page 9 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English SAVE THESE INSTRUCTIONS Page 9...

  • Page 10: Product Information & Specifications

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English HOW SANITIZER IS GENERATED This product is specially designed for above ground pools. It will destroy the bacteria, oxidize bather organics and control algae, which provide a safe, clean and comfortable swimming pool.

  • Page 11: Setup Instructions

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English STRAINER & PLUNGER VALVE SETUP IMPORTANT The Saltwater System/Filter Pump must be installed as the last piece of pool equipment in the water return line to the pool. This location extends the life of the titanium plates.
  • Page 12 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English STRAINER & PLUNGER VALVE SETUP (continued) The strainer grid prevents large objects from jamming and/or damaging the filter pump. If your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before inflating the pool liner top ring.
  • Page 13 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English NOZZLE & PLUNGER VALVE SETUP 1. Grasp the nozzle and plunger valve mechanism. 2. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector (24) (see drawing 5).
  • Page 14 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English SALTWATER SYSTEM/FILTER PUMP Saltwater System/Filter Pump 1. Remove the Saltwater System/Filter Pump and hoses from the packaging. 2. Place the Saltwater System/Filter Pump in a location for hose (8) connections to the plunger valve assemblies.

  • Page 15: Salt & Pool Water Volumes

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English SALT & POOL WATER VOLUMES • Which kind of salt to use: Use only Sodium Chloride Salts Use only sodium chloride (NaCl) salt that is at least 99.8% pure. It is also acceptable to use water conditioning salt pellets (the compressed forms of evaporated salt).

  • Page 16: Intex Pools Salt Table

    Easy Set & Oval Pool) 3.0g/L (3000ppm) (CODE “91”) (Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs) INTEX ABOVE GROUND POOLS (AGP’s) 15' x 33" (457cm x 84cm) 2587 9792 15' x 36" (457cm x 91cm) 2822 10681 15' x 42" (457cm x 107cm) 3284 12430 15' x 48"...

  • Page 17: Intex Pools Operating Time Table

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English INTEX POOLS OPERATING TIME TABLE (WITH CYANURIC ACID) Operating Time (hours) Water Capacity (Calculated at at different ambient/air 90% for Frame Pool and 80% for Easy Set &...

  • Page 18: Intex Pools Cyanuric Acid Table

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English INTEX POOLS CYANURIC ACID TABLE Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. To maintain maximum performance, we recommend that the cyanuric acid level be maintained at approximately 1% of the salt, i.e.

  • Page 19: Non-Intex Pools Salt Table

    22500 8000 30000 10000 37500 12000 45500 14000 53000 OPERATING TIME TABLE FOR COMMON NON-INTEX POOLS Operating Time (hours) Water Capacity at different ambient/air temperatures 10 - 19°C 20 - 28 °C 29 - 36 °C (Gals) (Liters) (50 - 66°F) (68 - 82 °F)

  • Page 20: Operating Instructions

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English FILTER PUMP OPERATION 1. Make sure the unit is switched off. The switch is located on the control station. 2. Connect the power cord to a GFCI protected electrical outlet. WARNING Risk of electric shock.
  • Page 21 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English SALTWATER SYSTEM OPERATION 1. Start up the unit: Plug the power cord into the electrical outlet and test the GFCI/RCD (circuit breaker). Switch on the unit. With the Filter Pump turned “ON”...
  • Page 22 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English SALTWATER SYSTEM OPERATION (continued) 6. Boost cycle • If the test result is below 0.1ppm, press and hold “BOOST” button for 5 seconds until the indicator lights up and the LED display display “80”.

  • Page 23: Led Code Chart

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English LED CODE CHART LED Reading Definitions Filter Pump Working Mode Boost Mode Stand-By Mode (Start-up) Minimum Operating Hour (1 hour remaining) Operating Hours (2 hours remaining) Operating Hours (3 hours remaining) Operating Hours (4 hours remaining) Operating Hours (5 hours remaining)

  • Page 24: Maintenance

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English MAINTENANCE WARNING Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product. IMPORTANT Close plunger valves on your pool or insert black hat-like plugs in strainer opening to prevent water spillage.
  • Page 25 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English MAINTENANCE (continued) 1. Switch off the unit, unplug the power cord from the electrical socket. 2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and then turn it clockwise until the plastic protruding notch anchor is in the "0/I"...
  • Page 26 (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English CLEANING OR REPLACING FILTER CARTRIDGES It is recommended that the filter cartridge be replaced at least every 2 weeks. Make sure the unit is turned off, and disconnect the power cord from the electrical outlet.

  • Page 27: Long Term Storage

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English MAINTENANCE (continued) INTEX COPPER TEST STRIPS (PACKED WITH THE PRODUCT) ® The Copper Ion Test Strips can be used to test the copper ion concentration in the water.

  • Page 28: Pool Maintenance And Chemical Definitions

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English POOL MAINTENANCE & CHEMICAL DEFINITIONS Preferred Water Chemistry Reading Minimum Ideal Maximum Copper Ions 0.1 - 0.2 ppm 0.2 ppm Free Chlorine 0.4 - 1.5 ppm 3.0 ppm Combined Chlorine 0 ppm...

  • Page 29: Troubleshooting Guide

    • Turn and pull valve handle to full upright position. • Service light on. • Unscrew two air release valve on the chamber to fullfill water. • Contact Intex Service Center. • Remove cover & check for O-ring. TOP COVER • O-ring missing. • Tighten cover (Manually).
  • Page 30 • Copper electrode defective. See “Operating Instructions”. • Remove the cell for inspection, clean it if necessary. See “Maintenance”. • Contact Intex Service Center. • Drain about 20% of the pool water and • High copper ion concentration. POOL IS STAINED add fresh water to decrease the copper ion concentration below 0.2ppm.

  • Page 31: Troubleshooting Guide

    • Ensure that the cell cord is plugged 3. Electrolytic cell cord is loose. firmly into the cell housing receptacle. • Contact Intex Service Center. Replace 4. Possible electrolytic cell failure. the cell if needed. • Partially drain the pool and refill it with 1.

  • Page 32: General Aquatic Safety

    (133) MODEL CS8111 SALTWATER SYSTEM & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/17/2011 English GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions.

  • Page 33: Limited Warranty

    Service Center. Upon receipt of the returned product, the Intex Service Center will inspect the item and determine the validity of the claim. If the provisions of this warranty cover the item, the item will be repaired or replaced at no charge.

  • Page 34: Intex Service Center Locations

    OFFICE 102 & 103, UMM HURAIR ROAD, KARAMA, DUBAI, UAE TEL: 00971-4-800INTEX(46839) / +971-4-3373322 FAX: 00971-4-3375115 E-mail: intex@firstgroupinternational.com. Website: www.firstgroupinternational.com • ASIA INTEX DEVELOPMENT CO. LTD. 9th Floor, Dah Sing Financial Centre 108 Gloucester Road, Wanchai, Hong Kong Tel: 852-28270000 Fax: 852-23118200 E-mail: xmservicesupport@intexcorp.com.cn...
  • Page 35 Website: www.intexcorp.com For Residents outside of the U.S. and Canada: Please refer to the Service Center Locations ©2011 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Trading Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten.
