(329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5" X 10.3" PANTONE 295U 01/22/2021

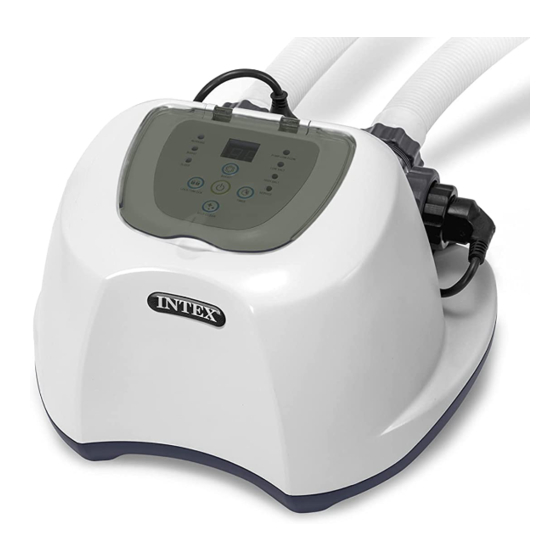

Saltwater System with
E.C.O. (Electrocatalytic
Oxidation)
Model ECO5110 & 6110
For illustrative purposes only.
Don't forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and
Boats available at fine retailers or visit our website listed below.
Due to a policy of continuous product improvement, Intex
reserves the right to change specifications and appearance,
which may result in updates to the instruction manual without
notice.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, Visit
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
Monday through Friday, 8:30am to 5:00pm Pacific Time
IMPORTANT
SAFETY RULES
Read, understand, and follow
all instructions carefully before
installing and using this product.
IMPORTANT!
www.intexcorp.com
1-800-234-6839
329
English
English
PO
329-*PO-R2-2101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO5110 and is the answer not in the manual?

Questions and answers

Related Manuals for Intex ECO5110

Summary of Contents for Intex ECO5110

  • Page 1 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English English IMPORTANT SAFETY RULES Read, understand, and follow all instructions carefully before installing and using this product. Saltwater System with E.C.O. (Electrocatalytic Oxidation) Model ECO5110 & 6110 For illustrative purposes only.

  • Page 2: Table Of Contents

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English TABLE OF CONTENTS Warnings................3 Parts References..............4 Product Specifications............5 Setup Instructions..............6-10 Salt & Pool Water Volumes...........11 Intex Pools Salt Table............12 Intex Pools Cyanuric Acid Table..........13 Intex Pools Operating Time Table........14-15...

  • Page 3: Warnings

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. READ AND FOLLOW ALL INSTRUCTIONS WARNING • For Outdoor use only.

  • Page 4: Parts References

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

  • Page 5: Product Specifications

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English PRODUCT SPECIFICATIONS Model: ECO5110 ECO6110 Power: 110 - 120 Volt AC 110 - 120 Volt AC Amperage: 0.6 A 1.1 A Wattage: 65 W 125 W Ideal Salt Level:...

  • Page 6: Setup Instructions

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SETUP INSTRUCTIONS Please visit www.intexcorp.com for the latest instructional video on the installation and operation of this product. IMPORTANT • The Saltwater System requires a separate filter pump [700~3200 gph (2650~ 12112 lph)] to drive the water and function properly.
  • Page 7 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SETUP INSTRUCTIONS (continued) 1. Go directly to step 2 if your pool is empty. If your above-ground-pool is filled with water, unscrew the strainer grids from the strainer connectors and insert the black hat-like plugs into the connectors, before installing the saltwater pool system.
  • Page 8 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SETUP INSTRUCTIONS (continued) Connecting the system to pump and pool with 1-1/2” (38mm) connections/hoses: Pump and pool with 1-1/2” (38mm) connections do not require the adaptors A (1) or B (8).
  • Page 9 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SETUP INSTRUCTIONS (continued) Connecting the system to other types of pump (with different type of thread or no thread): The Saltwater System can also be adapted to other filter pumps with different thread or those without a thread on the connection.
  • Page 10 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SETUP INSTRUCTIONS (continued) Connecting the system to other types of pool After you have connected the Saltwater System to the pump, connect it to the pool. This is depicted in Drawings #1 and #2.

  • Page 11: Salt & Pool Water Volumes

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SALT & POOL WATER VOLUMES • Which kind of salt to use: Use only Sodium Chloride Salts Use only sodium chloride (NaCl) salt that is at least 99.8% pure. It is also acceptable to use water conditioning salt pellets (the compressed forms of evaporated salt).

  • Page 12: Intex Pools Salt Table

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English INTEX POOLS SALT TABLE This table shows the amount of salt needed to achieve and maintain the optimal 3000 ppm salt level. Salt Needed for Salt Needed when...

  • Page 13: Intex Pools Cyanuric Acid Table

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English INTEX POOLS CYANURIC ACID TABLE Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. To maintain the pool water clear and clean, and to maximize the performance of the device, add cyanuric acid to the pool.

  • Page 14: Intex Pools Operating Time Table

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English INTEX POOLS OPERATING TIME TABLE (WITH CYANURIC ACID) Operating Time (hours) Water Capacity (Calculated at Intex Filter at different ambient/air 90% for Frame Pool and 80% pump for Easy Set &...
  • Page 15 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English INTEX POOLS OPERATING TIME TABLE (WITH CYANURIC ACID) Operating Time (hours) Water Capacity (Calculated at Intex Filter at different ambient/air 90% for Frame Pool and 80% pump temperatures for Easy Set &...

  • Page 16: Non-Intex Pools Salt Table

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English SALT CALCULATION FORMULA FOR ALL POOLS Salt Needed for Startup Salt Needed for Startup Salt Needed when Salt Needed when (Lbs) (Kgs) Low Salt Detected (Lbs) Low Salt Detected (Kgs) Water Capacity (Gals) x 0.025 Water Capacity (Liters) x 0.003...

  • Page 17: Operating Instructions

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English OPERATION INSTRUCTIONS 1. Turn on the filter pump. 2. Start up the unit: Plug the power cord into the electrical outlet and test the GFCI/RCD (circuit breaker). Press button.
  • Page 18 For example, the boost operating time is 8 hours, the filter pump should be set to run for 8 hours at least. Increase the filter pump operating time if necessary. Note: If an Intex filter pump is attached to the system, set the pump switch to on “I” position.

  • Page 19: Led Code Chart

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English LED CODE CHART LED Reading Definitions Boost Mode Stand-By Mode (Start-up) Minimum Operating Hour (1 hour remaining) Operating Hours (2 hours remaining) Operating Hours (3 hours remaining)

  • Page 20: Maintenance

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English MAINTENANCE IMPORTANT Unplug the power cord before cleaning your system. Also close the plunger valves on your pool or insert the black hat-like plugs in the strainer opening to prevent water spillage.
  • Page 21 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English MAINTENANCE (continued) 3. Disconnect the 2 hoses from the Saltwater System, and attach the cell covers (9) to the inlet and outlet of the electrolytic cell (3).

  • Page 22: Long Term Storage

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English MAINTENANCE (continued) TEST STRIPS ( PACKED WITH THE PRODUCT ) INTEX ® The Test Strips can test the “Free Chlorine”, “pH”, “Calcium Hardness” and “Total Alkalinity” levels at the same time. We recommend that you test the water chemistry weekly, and maintain the chlorine concentration at 0.5-3.0 ppm.

  • Page 23: Pool Maintenance And Chemical Definitions

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English POOL MAINTENANCE & CHEMICAL DEFINITIONS Preferred Water Chemistry Reading Minimum Ideal Maximum Free Chlorine 0.5 - 3.0 ppm 5.0 ppm Combined Chlorine 0 ppm 0.2 ppm 7.4 - 7.6...

  • Page 24: Troubleshooting Guide

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION • Increase the daily Saltwater System • Insufficient operating hours of INSUFFICIENT operating time. See “Operating Instructions”. the Saltwater System. SODIUM • Check the salt level with the Test Kit. Adjust •...
  • Page 25 (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English TROUBLESHOOTING GUIDE (continued) LED PANEL SOLUTION PROBLEM CODE LED Panel Code Flash & Alarm On (NOTE: Always turn off the power before cleaning and servicing). • Ensure filter pump is attached and operating.

  • Page 26: Control Station Replacement

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English CONTROL STATION REPLACEMENT Tools required: One (1) Phillips screwdriver If only the control station (13) needs to be replaced as instructed by the service center, remove all the components inside the dotted frame and keep them in a safe place for later use.

  • Page 27: Limited Warranty

    (329PO) MODEL ECO5110&6110 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 01/22/2021 English LIMITED WARRANTY ® Your Krystal Clear Saltwater System has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only ®...
