2005-6332
2016-01-20
EN
Reg. No 29925 P.C.P.A
110 – 120 V~, 60 Hz, 3.5 A THERMALLY PROTECTED WEATHERPROOF ENCLOSURE
CSA ENCLOSURE 3 - DOUBLE INSULATED AND GROUNDED
RISK OF ELECTRIC SHOCK. CONNECT ONLY TO GROUNDING TYPE
RECEPTACLE PROTECTED BY A CLASS A GROUND FAULT
FOR CONTINUED PROTECTION AGAINST POSSIBLE ELECTRIC SHOCK,
USE ONLY IDENTICAL REPLACEMENT PARTS WHEN SERVICING.
KRYSTAL CLEAR
SALTWATER SYSTEM
MODEL CS8111
FOR USE WITH SWIMMING POOLS ONLY
WARNING
CIRCUIT INTERRUPTER (GFCI).
CAUTION
THIS PRODUCT IS FOR USE WITH
STORABLE POOLS (SP) ONLY, DO NOT USE
WITH PERMANENTLY INSTALLED POOLS.
IMPORTANT
READ OWNERʼS MANUAL.
& FILTER PUMP
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Krystal Clear Saltwater System and is the answer not in the manual?

Questions and answers

janine
June 26, 2025

how does the self clean work - Intex Krystal Clear Saltwater System for Above-Ground Pools up to 15,000 Gallons

0

Subscribe to Our Youtube Channel

Related Manuals for Intex Krystal Clear Saltwater System

Summary of Contents for Intex Krystal Clear Saltwater System

  • Page 1 2005-6332 2016-01-20 Reg. No 29925 P.C.P.A KRYSTAL CLEAR SALTWATER SYSTEM & FILTER PUMP ® MODEL CS8111 110 – 120 V~, 60 Hz, 3.5 A THERMALLY PROTECTED WEATHERPROOF ENCLOSURE CSA ENCLOSURE 3 - DOUBLE INSULATED AND GROUNDED FOR USE WITH SWIMMING POOLS ONLY WARNING RISK OF ELECTRIC SHOCK.
  • Page 2 Reg. No 29925 P.C.P.A PUMP WORKING BOOST SLEEP LOW FLOW LOW SALT HIGH SALT SERVICE...
  • Page 3 CONTROLS BACTERIA AND ALGAE in Storable Swimming pool Waters. DOMESTIC A Maximum of 40,000 L (10,567 gal) of water can be treated with one Krystal Clear Saltwater System ® & Filter Pump Model CS8111. Maximum output of hypochlorous acid equivalent to 0.113 kg (0.249 lb) of free available chlorine per day.
  • Page 4 & FILTER PUMP MODEL CS8111 REPLACEMENT CHLORINE CELL Replacement chlorine cell for the Krystal Clear Saltwater System ® Model CS8110 and Krystal Clear Saltwater System ® & Filter Pump Model CS8111, REGISTRATION NUMBERS 29926 and 29925, PEST CONTROL PRODUCTS ACT. This cell must only be used on these models of Saltwater System ®...
  • Page 5 KRYSTAL CLEAR SALTWATER SYSTEM & FILTER PUMP MODEL CS8111: REPLACEMENT COPPER CELL Replacement electrode for the copper releasing device Krystal Clear Saltwater System & Filter Pump Model CS8111, REGISTRATION NUMBER 29925, PEST CONTROL PRODUCTS ACT. This cell must only be used on this model of copper ionization device.
  • Page 6 Model CS8111 REGISTRATION NO. 29925 PEST CONTROL PRODUCTS ACT For illustrative purposes only. Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website.

  • Page 7: Table Of Contents

    Setup Instructions............12-15 Salt & Pool Water Volumes..........16 Intex Pools Salt Table............. 17 Intex Pools Operating Time Table......... Intex Pools Cyanuric Acid Table........19 Non-Intex Pools Salt Table..........20 Non-Intex Pools Operating Time Table......20 Non-Intex Pools Cyanuric Acid Table......

  • Page 8: Warnings

    OTHER SERIOUS INJURY OR DEATH. Follow all aspects of the local and National Electrical Code(s) when installing the Krystal Clear Saltwater System & Filter Pump Model CS8111. CAUTION This product is for use with storable pools only. Do not use with permanently-installed pools.
  • Page 9 Canadian Agent: The Canadian Group, 430 Signet Drive Suite A, Toronto, Ontario M9L2T6, Canada WARNING Operating Krystal Clear Saltwater System ® & Filter Pump Model CS8111 without water flow through the cell can cause a build up of flammable gases which can result in FIRE OR EXPLOSION.

  • Page 10: Parts List & References

    PARTS LIST NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 5...
  • Page 11 PARTS LIST (continued) NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 6...
  • Page 12 PARTS REFERENCE Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 13 PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. SPARE PART REF. NO. DESCRIPTION QTY. 10460 AIR RELEASE VALVE/SEDIMENT RELEASE VALVE 10264 VALVE O-RING 10491 THREADED FILTER HOUSING COLLAR 10490 FILTER HOUSING COVER 10492...
  • Page 14 PARTS REFERENCE (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. SAVE THESE INSTRUCTIONS Page 9...
  • Page 15 SAVE THESE INSTRUCTIONS Page 10...

  • Page 16: Product Information & Specifications

    HOW SANITIZER IS GENERATED This product is specially designed for storable pools (SPs). This product will destroy the bacteria, oxidize bather organics and control algae, which provides you a clean and comfortable swimming pool. Common salt (sodium chloride) is made up of two elements, sodium and chlorine. During the installation of your Saltwater System/Filter Pump, a measured quantity of salt is dissolved in the pool water to make it slightly salty.

  • Page 17: Setup Instructions

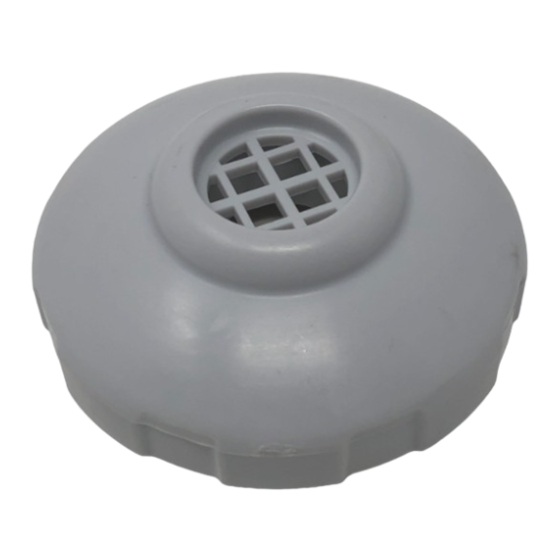

    IMPORTANT STRAINER & PLUNGER VALVE SETUP The Saltwater System/Filter Pump must be installed as the last piece of pool equipment in the water return line to the pool. This location extends the life of the titanium plates. Strainer & Plunger Valve Setup (small SPs) The strainer grid prevents large objects from jamming and/or damaging the filter pump.
  • Page 18 STRAINER & PLUNGER VALVE SETUP (continued) Strainer & Plunger Valve Setup (large SPs) The strainer grid prevents large objects from jamming and/or damaging the filter pump. The plunger valve assembly prevents water from flowing into the filter pump while the filter cartridge is being placed or cleaned. If your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before inflating the pool liner top ring.
  • Page 19 NOZZLE & PLUNGER VALVE SETUP 1. Grasp the nozzle and plunger valve mechanism. 2. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector (24) (see drawing 5). Be careful not to lose the step rubber washer (21). Place the plunger valve on the ground in a safe place.
  • Page 20 SALTWATER SYSTEM/FILTER PUMP Saltwater System/Filter Pump 1. Remove the Saltwater System/Filter Pump and hoses from the packaging. 2. Place the Saltwater System/Filter Pump in a location for hose (8) connections to the plunger valve assemblies. NOTE: Some regional regulations may require the filter pump to be mounted on a stationary platform.

  • Page 21: Salt & Pool Water Volumes

    SALT & POOL WATER VOLUMES • Which kind of salt to use: Use only Sodium Chloride Salts Use only sodium chloride (NaCl) salt that is at least 99.8% pure. It is also acceptable to use water conditioning salt pellets (the compressed forms of evaporated salt), however, it will take a longer time for them to dissolve.

  • Page 22: Intex Pools Salt Table

    INTEX POOLS SALT TABLE This table shows the amount of salt needed to achieve and maintain the optimal 3000 ppm salt level. Salt Needed for Salt Needed when Water Capacity (Calculated at 90% for Frame Pool and 80% Startup Low Salt Detected Pool Size for Easy Set &...

  • Page 23: Intex Pools Operating Time Table

    INTEX POOLS OPERATING TIME TABLE (WITHOUT CYANURIC ACID) This table shows the required operating time for average use of the Saltwater System without the stabilizer cyanuric acid. Once you use the stabilizer cyanuric acid in your pool, the required operating time may be reduced.

  • Page 24: Intex Pools Cyanuric Acid Table

    INTEX POOLS CYANURIC ACID TABLE Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. For maintaining maximum performance, maintain the cyanuric acid level between 30-100 ppm. Cyanuric Acid Needed for Water Capacity (Calculated at...

  • Page 25: Non-Intex Pools Salt Table

    8000 30000 10000 37500 12000 45500 14000 53000 OPERATING TIME TABLE FOR COMMON NON-INTEX POOLS WITH CYANURIC ACID Operating Time (hours) Water Capacity at different ambient/air temperatures 10 - 19°C 20 - 28 °C 29 - 36 °C (Gals) (Liters) (50 - 66°F)

  • Page 26: Operating Instructions

    FILTER PUMP OPERATION 1. Make sure the unit is switched off. The switch is located on the control station. 2. Connect the power cord to a GFCI protected electrical outlet. WARNING Risk of electric shock. Connect this product only to a grounding type receptacle protected by a ground-fault circuit interrupter (GFCI).
  • Page 27 SALTWATER SYSTEM OPERATION 1. Start up the unit: Plug the power cord into the electrical outlet and test the GFCI/RCD (circuit breaker). Switch on the unit. With the Filter Pump turned “ON” and operating, the green "Pump" light on the control panel will be on and code “00”...
  • Page 28 SALTWATER SYSTEM OPERATION (continued) 7. Boost cycle • If the test result is below 0.2ppm, press and hold “BOOST” button for 5 seconds until the indicator lights up and the LED display display “80”. This indicates that the saltwater system has started copper ion production. You can press and hold the “BOOST”...

  • Page 29: Led Code Chart

    • When replacing the chlorine generating cell and the copper cell, only use replacement cells having a label that clearly states that it is a replacement cell for the Krystal Clear Saltwater System & Filter Pump Model CS8111. SAVE THESE INSTRUCTIONS...

  • Page 30: Maintenance

    MAINTENANCE WARNING Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product. IMPORTANT Close plunger valves on your pool or insert black hat-like plugs in strainer opening to prevent water spillage. Open plunger valves or remove plugs when maintenance is completed.
  • Page 31 MAINTENANCE (continued) 1. Switch off the unit, unplug the power cord from the electrical socket. 2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and then turn it clockwise until the plastic protruding notch anchor is in the "0/I"...
  • Page 32 CLEANING OR REPLACING FILTER CARTRIDGES It is recommended that the filter cartridge be replaced at least every 2 weeks. Make sure the unit is turned off, and disconnect the power cord from the electrical outlet. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and then turn it clockwise until the plastic protruding notch anchor is in the "0/1"...

  • Page 33: Long Term Storage

    MAINTENANCE (continued) INTEX ® COPPER ION TEST STRIPS (PACKED WITH THE PRODUCT) The Copper Ion Test Strips can be used to test the copper ion concentration in the water. Directions and Use 1. Dip the entire strip into the water for 3 seconds, then remove it 2.

  • Page 34: Pool Maintenance And Chemical Definitions

    POOL MAINTENANCE & CHEMICAL DEFINITIONS Parameters Swimming Pools Free available chlorine 1.0 - 3.0 ppm This level may be lowered to 0.6-3.0 ppm once the copper concentration has reached 0.2-0.3 ppm. 7.2 - 7.8 200-300 ppm 100 - 120 ppm Total alkalinity 30 - 100 ppm Calcium hardness...

  • Page 35: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION • Filter cord must be plugged into a 3 • The motor is not plugged in. FILTER MOTOR wire outlet that is protected by a Class FAILS TO START • The fuse box needs checking. A Ground Fault Circuit Interrupter, or •...
  • Page 36 • • Copper electrode defective. • Remove the cell for inspection, clean it if necessary. See “Maintenance”. • Contact Intex Service Center. • High copper ion concentration. • Drain about 20% of the pool water and POOL IS STAINED add fresh water to decrease the copper ion concentration below 0.3ppm.
  • Page 37 • Ensure that the cell cord is plugged firmly into the cell housing receptacle. 4. Possible electrolytic cell failure. • Contact Intex Service Center. Replace the cell if needed. 1. High salt level. • Partially drain the pool and refill it with fresh water.

  • Page 38: General Aquatic Safety

    GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions. Remember, however, that product warnings, instructions and safety guidelines cover some common risks of water recreation, but do not cover all instances or risk and or danger.

  • Page 39: Limited Warranty

    Service Center. Upon receipt of the returned product, the Intex Service Center will inspect the item and determine the validity of the claim. If the provisions of this warranty cover the item, the item will be repaired or replaced at no charge.

  • Page 40: Intex Service Center Locations

    COUNTRIES/REGIONS SERVICE CENTER LOCATIONS • UNITED STATES INTEX RECREATION CORP. • CANADA 14779 Bar Harbor Road Fontana, CA 92336 Tel: 1-800-234-6839 Fax: 310-549-2900 Website: www.intexcorp.com (U.S./Canada only) Consumer Service Hours: 8:30 am to 5:00 pm Pacific Time, Mon. thru F .
  • Page 41 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans lʼUnion Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., P.O. Box nr. 1075 – 4700 BB Roosendaal – The Netherlands...
  • Page 42 ****************************** This label transcript service is offered by the Pest Management Regulatory Agency to provide efficient searching for label information. This service and this information do not replace the official hard-copy label. The PMRA does not provide any guarantee or assurance that the information obtained through this service is accurate, current or correct, and is therefore not liable for any loss resulting, directly or indirectly, from reliance upon this service.
