Motion MEMS and environmental sensor expansion board
X-NUCLEO-IKS01A2 Hardware description
•
The X-NUCLEO-IKS01A2 is a motion MEMS and
environmental sensor evaluation board system.
•
It is compatible with the Arduino UNO R3 connector
layout, and is designed around ST's latest sensors.
Key products on board
LSM6DSL
MEMS 3D accelerometer (±2/±4/±8/±16 g) + 3D
gyroscope (±125/±245/±500/±1000/±2000 dps)
LSM303AGR
MEMS 3D magnetometer (±50 gauss) + MEMS 3D
accelerometer (±2/±4/±8/±16 g)
LPS22HB
MEMS pressure sensor, 260-1260 hPa absolute digital
output barometer
HTS221
Capacitive digital relative humidity and temperature
DIL 24-pin
Socket available for additional MEMS adapters and
other sensors (UV index)
(X-NUCLEO-IKS01A2)

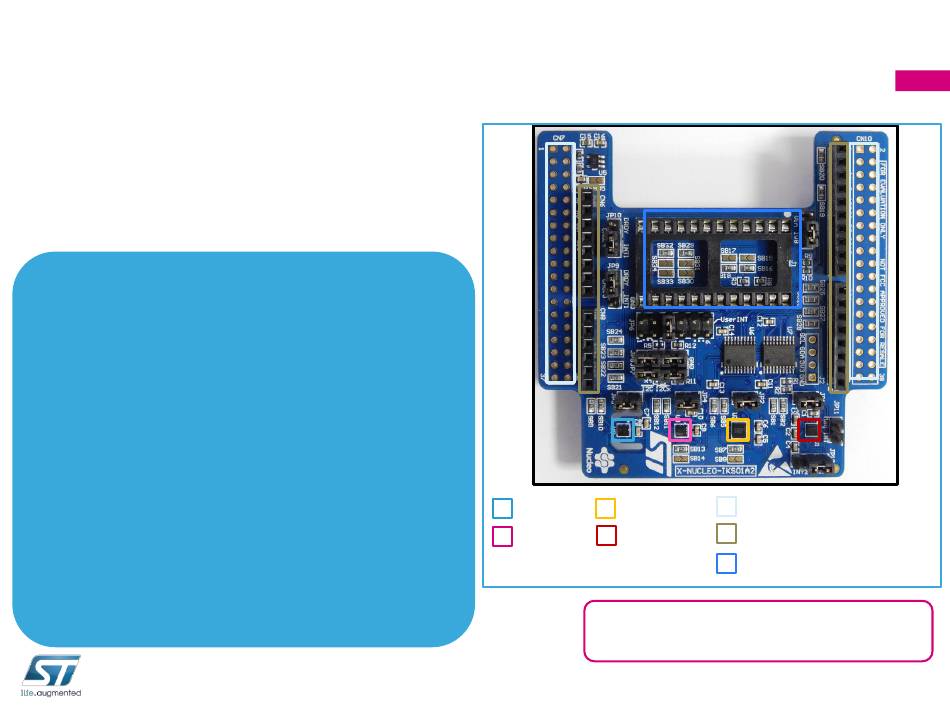

Hardware overview
HTS221
LSM6DSL
LSM303AGR
LPS22HB
Latest info available at www.st.com
X-NUCLEO-IKS01A2
** Connector for the STM32 Nucleo Board
(1/4)
ST morpho connector**
Arduino UNO R3 connector
DIL 24-pin
