3. Configure a serial terminal with the following parameters to view log messages and write AP
parameters. Tested with Teraterm version 4.96
• BaudRate : 115200
• Data : 8 bit
• Parity : none
• Stop : 1 bit

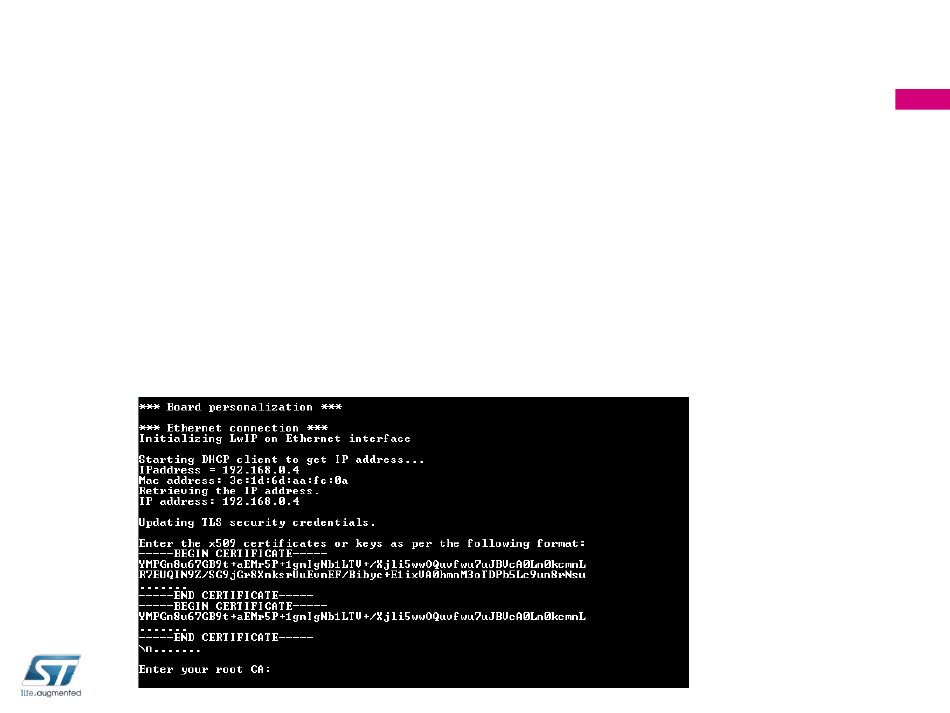

4. Press RESET (Black) button on STM32 Nucleo to trigger initialization phase. Enter the root
CA when firmware asks for it:
•
(copy-paste from Projects\Common\Bluemix\comodo_bluemix.pem):
Configure IBM Cloud Configuration Parameters
• Flow Control : none
• NewLine RX AUTO
• NewLine TX : CR+LF
• Local echo: Enabled
FP-CLD-WATSON1
via serial interface(1/2)
