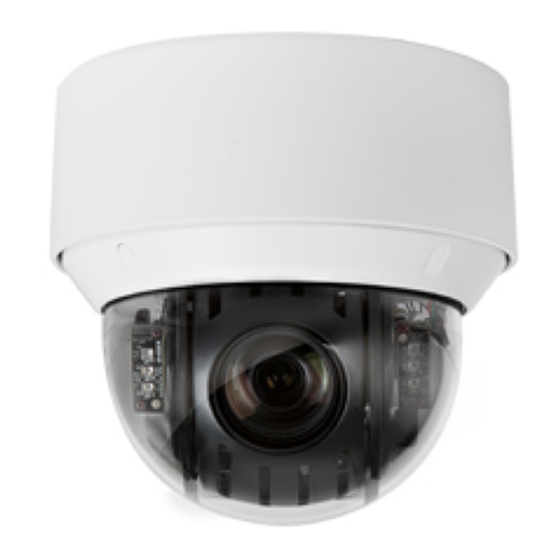

LUM-500-PTZ
IP Surveillance Camera
Installation and

Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Luma Surveillance 500 Series

Summary of Contents for Luma Surveillance 500 Series

  • Page 1: Quick Start Guide

    LUM-500-PTZ IP Surveillance Camera Installation and Quick Start Guide...

  • Page 2: Safety Tips

    OvrC, a powerful remote maintenance tool. See OvrC.com for details. In addition, your client can use the Luma Surveillance mobile app to check on the camera from anywhere. For installation using this guide, you must be able to access this camera through a personal computer.

  • Page 3: Box Contents

    Standard slot-head screwdriver A network connection (and an NVR, if desired) Admin rights to a computer that can access the network Mobile device with Luma Surveillance app (recommended) or CCTV tester Power source: PoE or 12V DC Phillips screwdriver Optional Equipment...

  • Page 4: Additional Resources

    500 Series IP PTZ Camera Preparation Ensure that your recorder has the very latest firmware. Use OvrC to update the firmware, or consult your NVR manual. Keep all equipment powered off during physical installation. Ensure the mounting surface is strong enough to withstand three times the weight of the camera and the mount.
  • Page 5 500 Series IP PTZ Camera Overview Before installing, familiarize yourself with the parts of your camera. Tails The PTZ camera has five different tails. Power The power cable ends in a red screw terminal. Insert the two wires of the power supply into the red and black inputs.
  • Page 6 500 Series IP PTZ Camera Weatherproofing the Network Cable We recommend weatherproofing your cable for all outdoor installations, no matter how shielded your camera may be from the elements. Use the weatherproofing kit provided with the camera, and an unterminated network cable.

  • Page 7: Inserting An Sd Card

    500 Series IP PTZ Camera Inserting an SD Card If desired, you can add an SD card (up to 128 GB) to the camera. If you are not using an NVR, then an SD card or a network drive is required if you want to keep a log of the camera’s activities.

  • Page 8: Installation: On-Ceiling

    500 Series IP PTZ Camera Installation: On-Ceiling The cables of PTZ camera can be routed either from the top of the extension mount and into the ceiling, or out the side of the extension mount to run across the ceiling.
  • Page 9 500 Series IP PTZ Camera 5. Flip the base plate over and attach it to the extension mount, as shown. Be sure that the gap in the base plate is over the cable conduit of the extension mount. 6. Route the cables through the cable hole or conduit and connect them to the camera tails.

  • Page 10: Activate The Camera

    Connect the camera to your networked PC. Run the Luma Utility. It searches for attached Luma Surveillance devices. If your camera does not appear, check the connection, ensure the camera has power, then click Refresh.

  • Page 11: Edit The Network Settings

    500 Series IP PTZ Camera Edit the Network Settings Suggested Best Practices: Ensure the Enable DHCP box is activated. In your router, reserve an IP address and assign it to the camera’s MAC address (found on its box). See your router’s documentation for details.
  • Page 12 500 Series IP PTZ Camera Start the Web Interface Open your browser and navigate to the camera’s IP address. Below the login area, you may see: “Please click here to download and install the plug-in. Close the browser when installing the plug- in.

  • Page 13: Zoom And Focus

    500 Series IP PTZ Camera Zoom and Focus This camera has a motorized varifocal lens. To adjust the focus, return to the live screen (see previous page) and click the PTZ icon . This opens up the PTZ menu on your screen.

  • Page 14: Set Up Presets

    500 Series IP PTZ Camera Set Up Presets and Patrols To set up presets and patrols, go to the live page and click the PTZ icon . This opens up the PTZ menu on your screen. Set Up Presets You can set up to 300 different presets. To set a preset, click the flag button on the PTZ menu to open the preset tab.
  • Page 15 500 Series IP PTZ Camera Set Up Smart Tracking Smart tracking enables the camera to follow a moving abject across its field of view. The camera can follow the object for up to 5 minutes. From the home page, click the settings icon (see page 12). When the configuration page opens, go to the PTZ page using the menu at left.

  • Page 16: Set Up Dynamic Dns

    500 Series IP PTZ Camera Set Up Dynamic DNS DDNS allows you to connect to your surveillance system from anywhere, via the Internet, using a web address that’s easy to remember. Click on the Settings Menu icon (page 12) and navigate to Basic Network Settings >...

  • Page 17: Add Additional Users

    500 Series IP PTZ Camera Add Additional Users Click on User Management. Click the Add button. Enter the new account’s user name and password. Account names can be up to 32 characters long. If you are using an NVR, to ensure compatibility with the NVR’s local interface, user names should contain numbers and...
  • Page 18 500 Series IP PTZ Camera Calibrate the Camera’s Clock Click on System Settings > Time Settings. Synchronize the Time At the top, choose your time zone. By default, the system uses network time protocol (NTP) to synchronize your system to Coordinated Universal Time.

  • Page 19: Year Limited Warranty

    (RA) number. Contact technical support for an RA number. Copyright ©2018 by SnapAV. All rights reserved. SnapAV, Luma Surveillance, and all related marks and images are trademarks or registered trademarks of SnapAV.
