DTW BAR 1000™
user manual

Advertisement

loading

Related Manuals for Elation DTW BAR 1000

Summary of Contents for Elation DTW BAR 1000

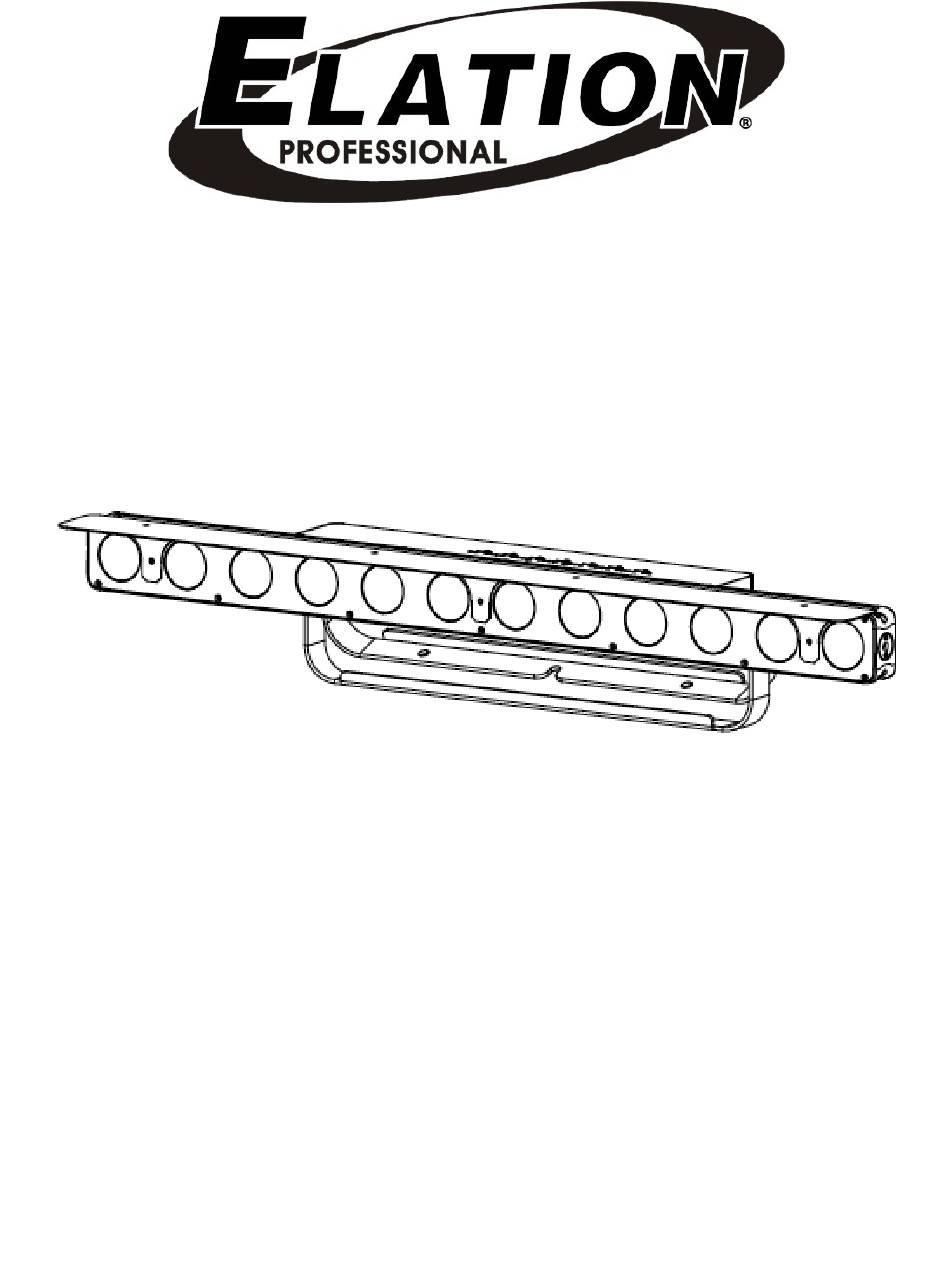

  • Page 1 DTW BAR 1000™ user manual...
  • Page 2 +31 45 546 85 63 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N...

  • Page 3: Table Of Contents

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines System Menu Pixel Flip v1.10 Dynamic DIM to WARM Control Range v1.02 DMX Channel Functions and Values v1.10 DMX Channel Functions and Values Specifications Optional Accessories...
  • Page 4 Frost Filter Glare Shield Frost Filter/Glare Shield Mounting Screws (x3) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...

  • Page 5: Limited Warranty (Usa Only)

    If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packaging material.

  • Page 6: Safety Guidelines

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.

  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 9: Fixture Overview

    F I X T U R E O V E R V I E W 1. 3pin DMX IN 2. powerCON IN 3. RJ45 NET IN 4. LCD Menu Control Display 5. powerCON OUT 6. 3pin DMX OUT 7. 5pin DMX IN 8.
  • Page 10 I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations.
  • Page 11 I N S T A L L A T I O N I N S T R U C T I O N S CLAMP MOUNTING The fixture includes an integrated dual yoke bracket. When mounting this fixture to truss be sure to secure an appropriately rated clamp (not included) to one of the mounting holes.

  • Page 12: System Menu

    S Y S T E M M E N U The fixture comes with an easy to navigate system menu. The control panel (see image below) located on the back of the fixture provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 13 ELATION DTW BAR 1000 S Y S T E M M E N U Features are subject to change without any prior written notice. MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION DMX MODE ADDR:001 - 512 Set DMX Address.
  • Page 14 ELATION DTWBAR 1000 P R O G R A M M A C R O S Features subject to change without any prior written notice. MACRO OPTIONS / VALUES DESCRIPTION CL: BLAC, WW, CW, A, WA Static Colors 01.STATIC Fade Adjustable...

  • Page 15: Pixel Flip

    ELATION DTWBAR 1000 C O L O R M A C R O S Actual colors may vary and subject to change without notice. MACRO # COLOR MACRO WARM WHITE COOL WHITE AMBER WARM WHITE + COOL WHITE WARM WHITE + AMBER...
  • Page 16 D Y N A M I C D I M T O W A R M C O N T R O L R A N G E (added with software update v1.10) This feature provides dynamic color temperature control by allowing a specific CTH (Color Temperature High) and CTL (Color Temp Low) to be set via the fixture’s system menu or via DMX control.
  • Page 17 D M X C H A N N E L F U N C T I O N S A N D V A L U E S ELATION DTW BAR 1000 DMX Channel Values / Functions (45 DMX Channels) Supports Software Versions: ≥...
  • Page 18 DMX CHANNEL MODE FUNCTION VALUE LED [11] 0-255 (0) = 0% (255) = 100% LED [12] 0-255 (0) = 0% (255) = 100% COOL WHITE - LED [1] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [1] 0-255 (0) = 0% (255) = 100% AMBER - LED [1]...
  • Page 19 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [6] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [6] 0-255 (0) = 0% (255) = 100% AMBER - LED [6] 0-255 (0) = 0% (255) = 100% COOL WHITE - LED [7] 0-255 (0) = 0% (255) = 100%...
  • Page 20 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [12] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [12] 0-255 (0) = 0% (255) = 100% AMBER - LED [12] 0-255 (0) = 0% (255) = 100% All LEDS [1-12] 0-255 (0) = 0% (255) = 100%...
  • Page 21 DMX CHANNEL MODE FUNCTION VALUE DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting PROGRAM MACROS 0-10 NO Function 11-26 Program 01 27-43 Program 02 44-60 Program 03 61-76 Program 04 77-93 Program 05 94-110 Program 06...
  • Page 22 DMX CHANNEL MODE UPDATE WITH SOFTWARE UPDATE VERSION ≥1.10 ELATION DTW BAR 1000 DMX Channel Values / Functions (72 DMX Channels) Supports Software Versions: ≥ 1.10 Features are subject to change without any prior written notice. *Control of LEDs depends on the Pixel Flip setting.
  • Page 23 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [1] 0-255 (0) = 0% (255) = 100% COOL WHITE FINE - LED [1] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [1] 0-255 (0) = 0% (255) = 100% WARM WHITE FINE - LED [1] 0-255 (0) = 0% (255) = 100%...
  • Page 24 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [3] 0-255 (0) = 0% (255) = 100% COOL WHITE FINE - LED [3] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [3] 0-255 (0) = 0% (255) = 100% WARM WHITE FINE - LED [3] 0-255 (0) = 0% (255) = 100%...
  • Page 25 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [6] 0-255 (0) = 0% (255) = 100% COOL WHITE FINE - LED [6] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [6] 0-255 (0) = 0% (255) = 100% WARM WHITE FINE - LED [6] 0-255 (0) = 0% (255) = 100%...
  • Page 26 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [9] 0-255 (0) = 0% (255) = 100% COOL WHITE FINE - LED [9] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [9] 0-255 (0) = 0% (255) = 100% WARM WHITE FINE - LED [9] 0-255 (0) = 0% (255) = 100%...
  • Page 27 DMX CHANNEL MODE FUNCTION VALUE COOL WHITE - LED [12] 0-255 (0) = 0% (255) = 100% COOL WHITE FINE - LED [12] 0-255 (0) = 0% (255) = 100% WARM WHITE - LED [12] 0-255 (0) = 0% (255) = 100% WARM WHITE FINE - LED [12] 0-255 (0) = 0% (255) = 100%...
  • Page 28 DMX CHANNEL MODE FUNCTION VALUE CTL (CONTROL TEMP LOW) NO Function 1-25 1,600K 26-50 1,700K 51-75 1,800K 76-100 1,900K 101-125 2,000K 126-150 2,100K 151-175 2,200K 176-200 2,300K 201-225 2,400K 226-255 2,500K CTH (CONTROL TEMP HIGH) NO Function 2,500K 6-10 2,600K 11-15 2,700K 16-20...
  • Page 29 DMX CHANNEL MODE VALUE FUNCTION CTH (CONTROL TEMP HIGH) 126-130 5,000K 131-135 5,100K 136-140 5,200K 141-145 5,300K 146-150 5,400K 151-155 5,500K 156-160 5,600K 161-165 5,700K 166-170 5,800K 171-175 5,900K 176-180 6,000K 181-185 6,100K SAME AS V1.02 186-190 6,200K 191-195 6,300K 196-200 6,400K 201-255...
  • Page 30 S P E C I F I C A T I O N S SOURCE (12) 10W Multi-Chip CW / WW / Amber LEDs 100,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
  • Page 31 DIMENSIONAL DRAWINGS...
  • Page 32 O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NARROW CLAMP Heavy Duty Wrap Around Hook Style Clamp SCABLE 60 60 lbs. Rating 24 Inch Safety Cable AC3PDMX5PRO 5 ft.
  • Page 33 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
