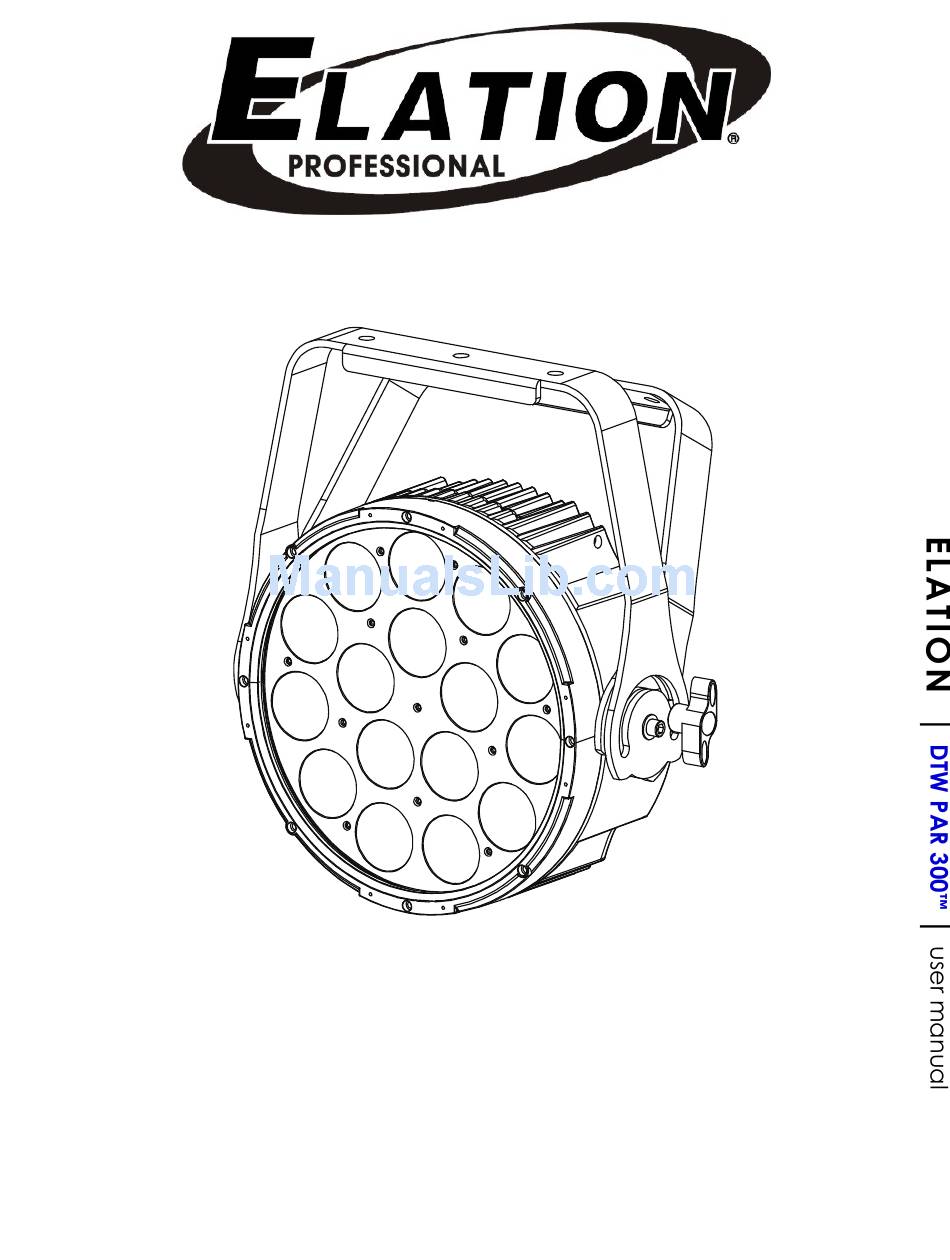

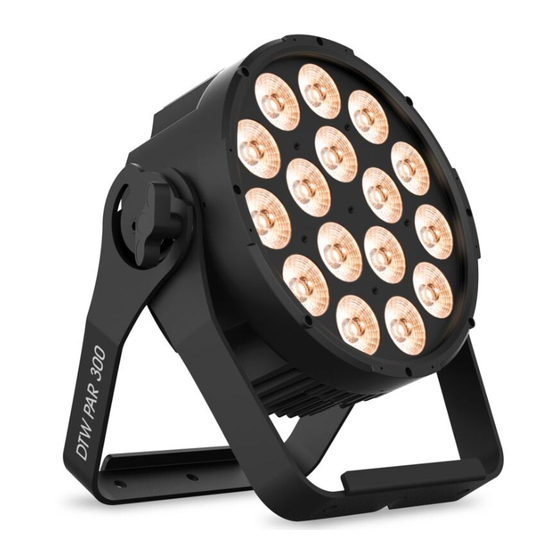

- Page 1 DTW PAR 300™ user manual ...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
. e l a t i o n l i g h t i n g . c o m C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation System Menu DMX Channel Functions And Values Cleaning and Maintenance Technical Specifications Optional Accessories DTW PAR 300™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) powerCON Cable DTW PAR 300™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions And Guidelines
INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! DTW PAR 300™ User Manual... - Page 8 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. DTW PAR 300™ User Manual...
-
Page 9: Overview
. e l a t i o n l i g h t i n g . c o m O V E R V I E W DTW PAR 300™ User Manual... -
Page 10: Installation
10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. DTW PAR 300™ User Manual... - Page 11 M10 screw fitted through the center hole of the dual bracket / yoke. Be sure to attach an appropriate Safety Cable (not included) to the fixture. DTW PAR 300™ User Manual...
- Page 12 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THERE THE RIGGING FAILS. DTW PAR 300™ User Manual...
- Page 13 POWER LINKING 7 units @120V | 14 units @240V u NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO DTW PAR 300™! POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ALWAYS CHECK MAX AMP OUT RATING PRINTED ON THE REAR CONNECTION PANEL!
-
Page 14: System Menu
MODE button. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Update Software Wait... PAR 300 V1.01 Fixture Software Version (Greater than or equal to) DTW PAR 300™ User Manual... - Page 15 Press/hold MODE button for 3 seconds to unlock. DimCurve Standard, Stage, TV, Architec, Theatre Set desired Dimming Curve. Temp. 000°C LED Temperature Define how fixture reacts when NO DMX signal NO DMX Black, Hold present. DTW PAR 300™ User Manual...
- Page 16 Define how fixture reacts when NO DMX signal NO DMX Black, Hold, program present. TempUnit Set Temperature Display Value Temp. 000°F Displays LED Temperature CTL:1600,1700,1800,1900,2000,2100,2200,2300,2400,2500 CTH:2500,2600,2700,2800,2900,3000,3100,3200,3300,3400, ColorTem Manual Color Temperature Presets 3500,3600,3700,3800,3900,4000,4100,4200,4300,4400,4500, 4600,4700,4800,4900,5000,5100,5200,5300,5400,5500,5600, 5700,5800,5900,6000,6100,6200,6300,6400,6500 Default OFF/ON Restore Fixture Settings to Factory Default DTW PAR 300™ User Manual...
- Page 17 . e l a t i o n l i g h t i n g . c o m Dim Curve/DIMMER Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre). DTW PAR 300™ User Manual...
-
Page 18: Dmx Channel Functions And Values
224-255 LEDs ON MASTER DIMMER 0-255 0 to 100% MASTER DIMMER FINE (16 bit) 0-255 0 to 100% DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting DTW PAR 300™ User Manual... -
Page 19: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 20: Technical Specifications
5F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP30 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. DTW PAR 300™ User Manual... - Page 21 9.8 ft 13.1 ft 16.4 ft 23° Beam 1.29 1.73 2.17 Diameter 44° Field 3.26 10.7 3.26 10.7 4.07 13.4 Diameter 1,935 1,130 WW LEDs 1,901 1,118 CW LEDs AMBER LEDs 2,635 1,963 1,260 FULL ON DTW PAR 300™ User Manual...
-
Page 22: Dimensional Drawings
. e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. DTW PAR 300™ User Manual... -
Page 23: Optional Accessories
(Gel Frame Holder Kit Required - Not Included) AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable PLC3 3 ft. (1m) PowerCON PRO Link Cable Additional Cable Lengths Available DTW PAR 300™ User Manual...
