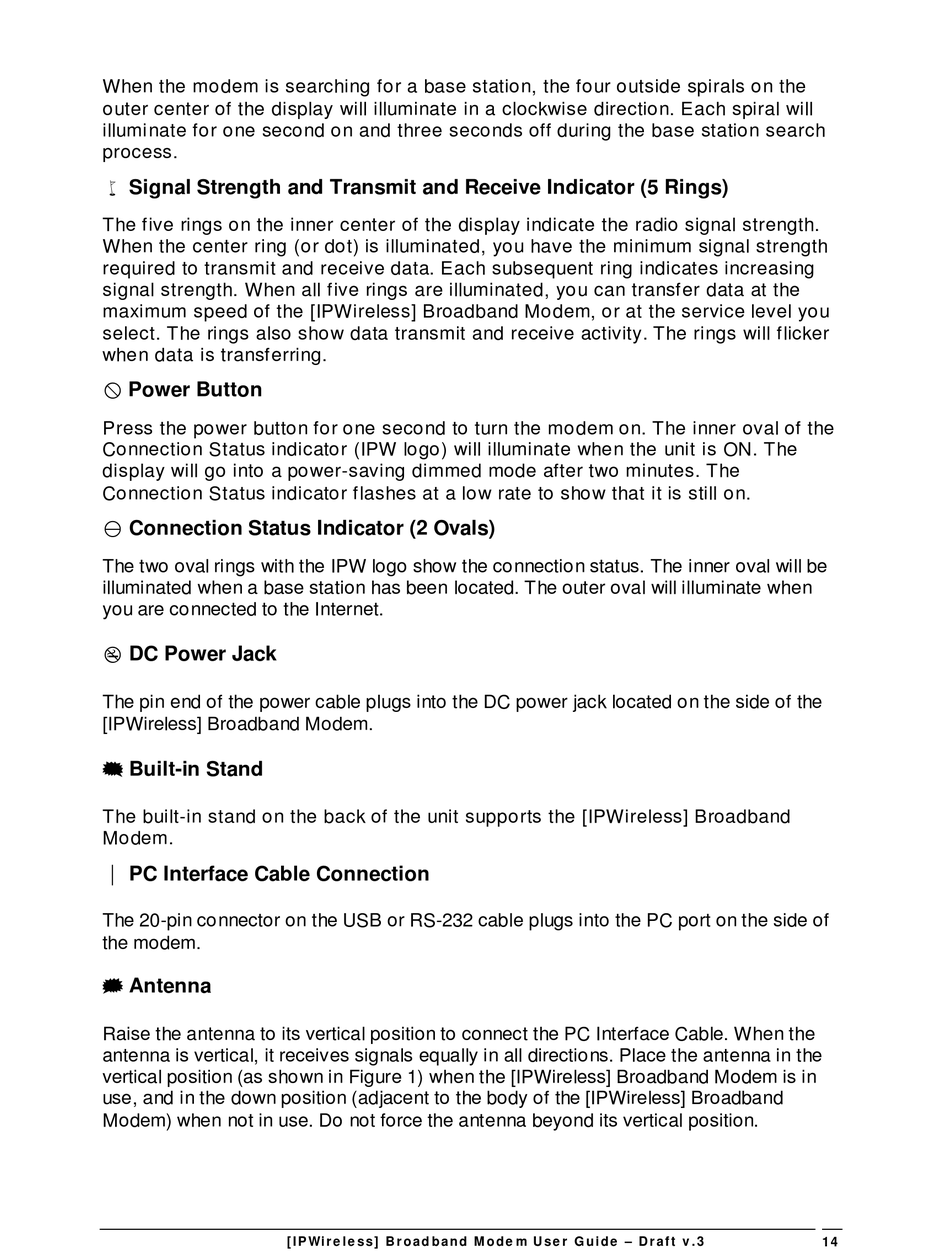

When the modem is searching for a base station, the four outside spirals on the
outer center of the display will illuminate in a clockwise direction. Each spiral will
illuminate for one second on and three seconds off during the base station search
process.
% Signal Strength and Transmit and Receive Indicator (5 Rings)
The five rings on the inner center of the display indicate the radio signal strength.
When the center ring (or dot) is illuminated, you have the minimum signal strength
required to transmit and receive data. Each subsequent ring indicates increasing
signal strength. When all five rings are illuminated, you can transfer data at the
maximum speed of the [IPWireless] Broadband Modem, or at the service level you
select. The rings also show data transmit and receive activity. The rings will flicker
when data is transferring.
$ Power Button
Press the power button for one second to turn the modem on. The inner oval of the
Connection Status indicator (IPW logo) will illuminate when the unit is ON. The
display will go into a power-saving dimmed mode after two minutes. The
Connection Status indicator flashes at a low rate to show that it is still on.
) Connection Status Indicator (2 Ovals)
The two oval rings with the IPW logo show the connection status. The inner oval will be
illuminated when a base station has been located. The outer oval will illuminate when
you are connected to the Internet.
( DC Power Jack
The pin end of the power cable plugs into the DC power jack located on the side of the
[IPWireless] Broadband Modem.
& Built-in Stand
The built-in stand on the back of the unit supports the [IPWireless] Broadband
Modem.
' PC Interface Cable Connection
The 20-pin connector on the USB or RS-232 cable plugs into the PC port on the side of
the modem.
# Antenna
Raise the antenna to its vertical position to connect the PC Interface Cable. When the
antenna is vertical, it receives signals equally in all directions. Place the antenna in the
vertical position (as shown in Figure 1) when the [IPWireless] Broadband Modem is in
use, and in the down position (adjacent to the body of the [IPWireless] Broadband
Modem) when not in use. Do not force the antenna beyond its vertical position.
