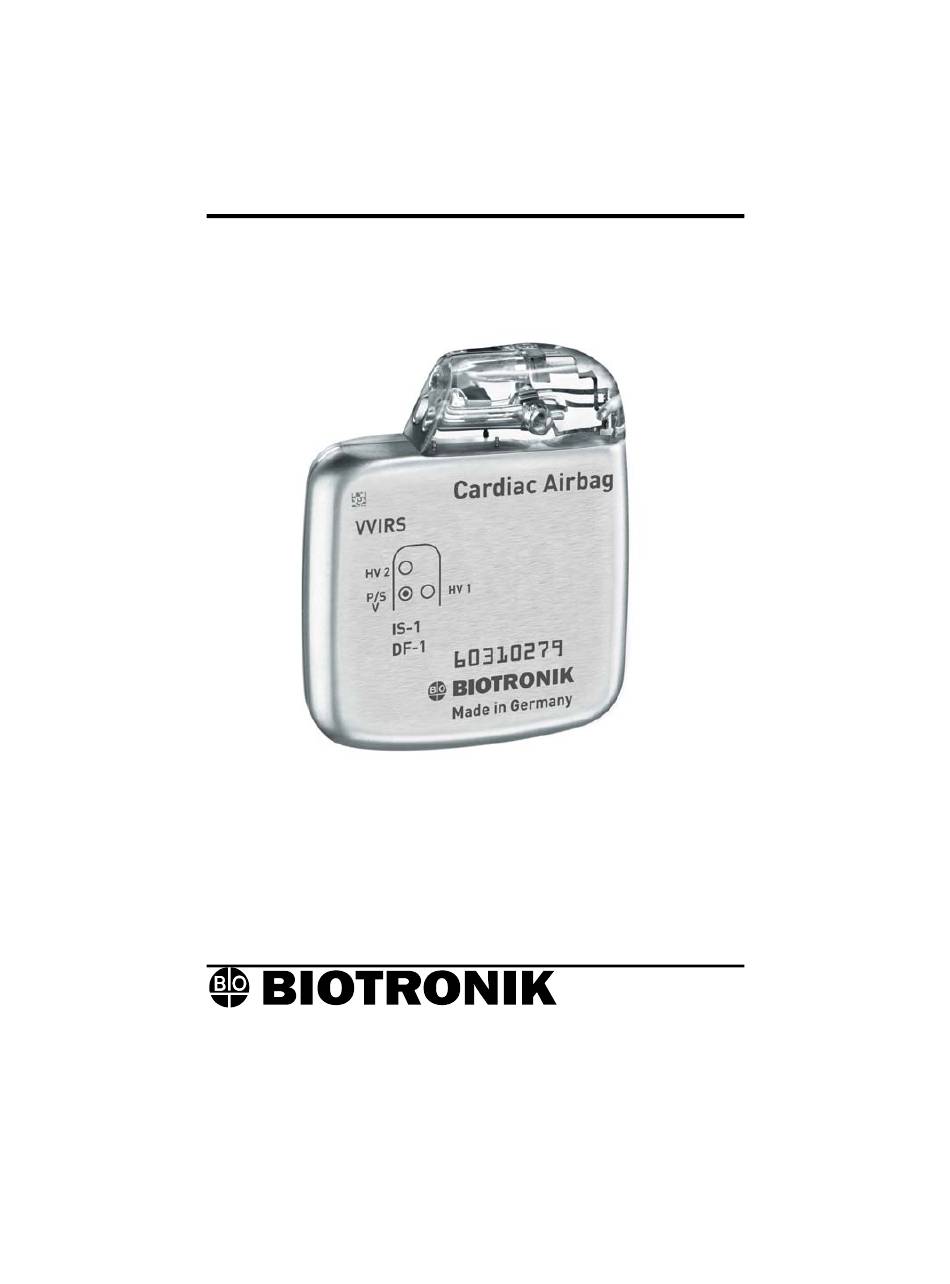

Cardiac Airbag /
Cardiac Airbag-T
Family of Implantable Cardioverter
Defibrillators and Software Cartridge for
PLUS
PLUS
TMS 1000
and EPR 1000
Technical Manual
