IDS 816 User Manual

Hide thumbs Also See for 816:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

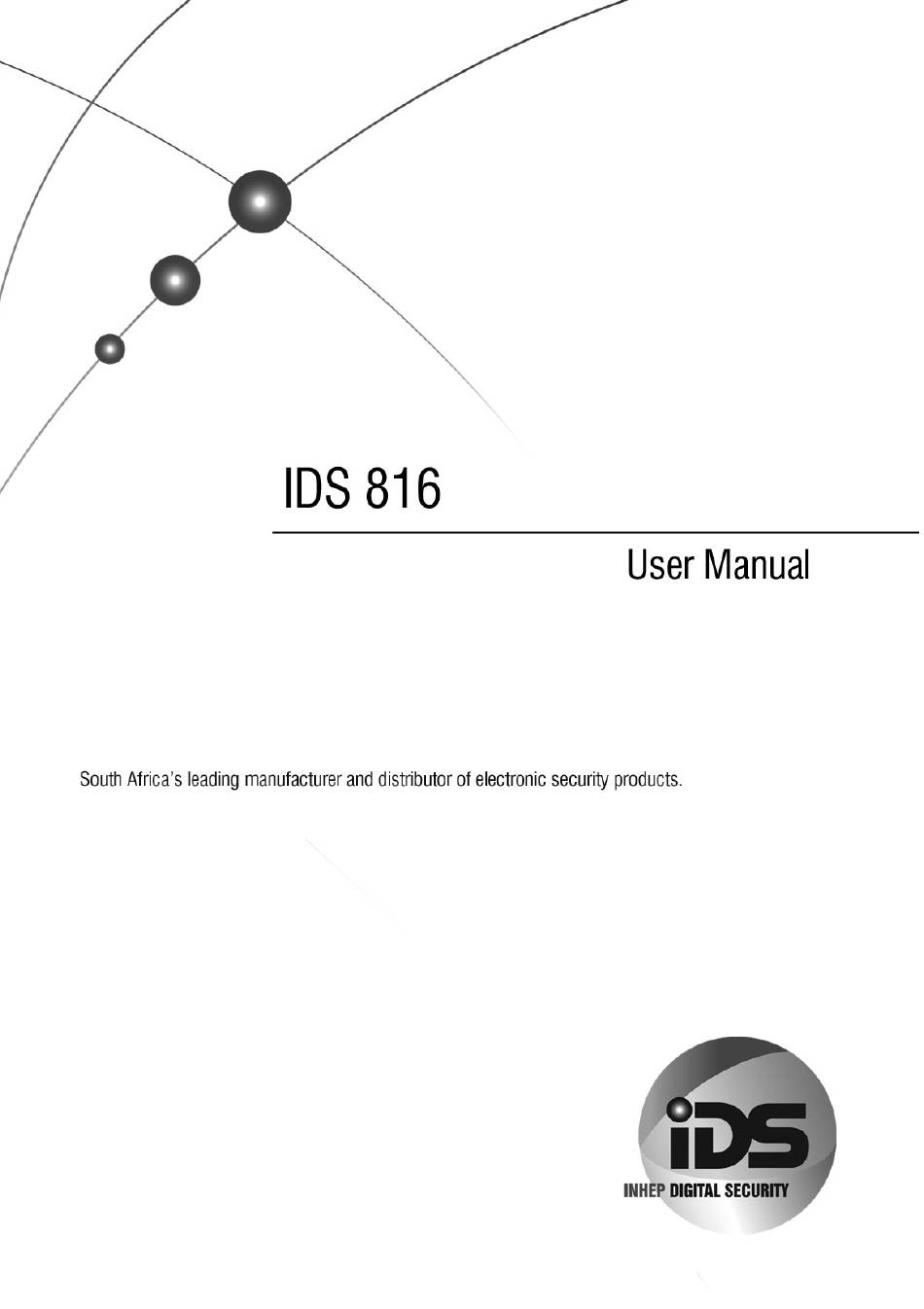

IDS816 User Manual 700-283-01H Issued January 2009
1

Advertisement

Table of Contents
loading

Related Manuals for IDS 816

Summary of Contents for IDS 816

  • Page 1 IDS816 User Manual 700-283-01H Issued January 2009...

  • Page 2: Table Of Contents

    Contents Contents Contents Contents Glossary-------------------------------------------------------------------------------------------------------------------6 Introduction to the IDS 816 ---------------------------------------------------------------------------7 Before Operating Your Alarm System ------------------------------------------------------------7 Understanding the Keypad Indicators------------------------------------------------------------8 The Keypad Buzzer-----------------------------------------------------------------------------------------9 Programmable Functions -----------------------------------------------------------------------------9 Arming the Control Panel --------------------------------------------------------------------------- 10 Away Arming------------------------------------------------------------------------------------------------10 Quick Away Arm--------------------------------------------------------------------------------------------10 Stay Arm-----------------------------------------------------------------------------------------------------10 6.3.1...
  • Page 3 13.5.1.3 Global Arm/Disarm Code--------------------------------------------------------------------------------18 13.6 Assign a User Code to Partitions - Option 5--------------------------------------------------------18 13.7 Adding User Remotes - Option 8----------------------------------------------------------------------19 13.8 Delete a User Code - Option 9 (Code Known)-----------------------------------------------------19 13.9 Delete a User Code - Option 10 ("Slot" Known)----------------------------------------------------19 13.10 Viewing a User Name - Option 11 (Slot Known)---------------------------------------------------20 Stay Zones ----------------------------------------------------------------------------------------------- 20...
  • Page 4 IDS816 User Manual 700-283-01H Issued January 2009...
  • Page 5 IDS816 User Manual 700-283-01H Issued January 2009...

  • Page 6: Glossary

    Glossary Glossary Glossary Glossary Alarm Memory This is the history of the most recent tampers and violations that occurred the last time the system was armed, as well as which zones were bypassed. Arming the system sets the system into the ARMED mode. In this mode, violating a zone will activate an alarm condition.

  • Page 7: Introduction To The Ids 816

    IDS 816 IDS 816 The IDS 816 is a versatile, microprocessor-based eight-zone alarm panel. It has two partitions and can be expanded to monitor sixteen burglary zones. Most features are optional and may be programmed directly through the keypad. There is a dedicated panic zone, monitored siren output, auxiliary power outputs and five (expandable to seven) programmable outputs that may be programmed to perform various trigger/switching functions.

  • Page 8: Understanding The Keypad Indicators

    3. 3. 3. 3. Understanding the Keypad Indicators Understanding the Keypad Indicators Understanding the Keypad Indicators Understanding the Keypad Indicators Refer to the labelled pictures of the keypads. ARMED Indicator (Red) System Armed System Disarmed Alarm Condition Flashing (Check Alarm Memory zone details BEFORE re-arming) AWAY Indicator (Red) System Armed in Away Mode System Disarmed / Armed in Stay Mode...

  • Page 9: The Keypad Buzzer

    4. 4. 4. 4. The Keypad Buzzer The Keypad Buzzer The Keypad Buzzer The Keypad Buzzer [#] WITH any key from [0] to [3] for 1 second The keypad includes a buzzer that is used for audible signalling and verification of certain keypad functions.

  • Page 10: Arming The Control Panel

    6. 6. 6. 6. Arming the Control Panel Arming the Control Panel Arming the Control Panel Arming the Control Panel Away Arm Away Arm Away Arm Away Arm [#] [USER CODE] (Leave via Entry/Exit zone) Ensure that the READY indicator is on. If not, check that all protected doors and windows are closed and that all movement has ceased in areas covered by motion detectors.

  • Page 11: How To Stay Arm

    6.3.1 6.3.1 How to Stay Arm How to Stay A 6.3.1 6.3.1 How to Stay A How to Stay A [#] [USER CODE] (Do not leave premises) Select the required STAY PROFILE (See page 19) Ensure that the READY indicator is on. If not, check that all protected doors and windows are closed and that all movement has ceased in the areas covered by motion detectors.

  • Page 12: Key-Switch Or Remote Arming (If Fitted)

    Key- - - - s s s s witch or Remote Arming (If F witch or Remote Arming (If F witch or Remote Arming (If Fitted) witch or Remote Arming (If F itted) itted) itted) Ensure that the READY indicator is on before leaving. Leave and close the door (remembering to lock!) Activate the remote or the key-switch.

  • Page 13: Bypassing Zones

    8. 8. 8. 8. Bypassing Zones Bypassing Zones Bypassing Zones Bypassing Zones The term BYPASS is used to describe a zone that has been deactivated; i.e. violation of a bypassed zone is ignored and will not cause an alarm condition. Once the system is armed, it is not possible to bypass zones.

  • Page 14: Medical Alarms

    A PANIC ALARM may also be activated using any FIXED PANIC button or a REMOTE PANIC button (if installed). If the audible panic option has been selected, the siren will sound. A PANIC ALARM will be transmitted to the monitoring company. To silence the siren, enter a valid [USER CODE].

  • Page 15: User Codes

    U U U U ser Codes ser Codes ser Codes ser Codes The IDS 816 Alarm Panel has 32 programmable user codes. By default, user code 1 is the Master User Code that contains a pre-programmed 4-digit code of 1234. NOTE NOTE: : : :...

  • Page 16: Add A New User Code - Option

    Example: To add a new user code, enter the User Program Mode by completing steps 1 to 5 as listed above. To access Option 0, enter a value of [0] (See table 1) followed by [*]. Enter a [NEW USER CODE] followed by the [*] key. Once the user code is programmed, enter the next code followed by [*].

  • Page 17: View A User Code Slot Number - Option

    Enter the [NEW CODE] followed by the [*] key. The READY and ARMED indicators will flash simultaneously. To edit other codes repeat steps 3 to 5. Press the [#] key to exit the User Program Mode. 13.4 13.4 View a User View a User C C C Code ode Slot Number...

  • Page 18: Explanation Of Programmable Options

    Table 2 User Code Properties Zone Zone LED Property Property Zone Zone Property Property Duress code Arm to disarm code [Maid’s code] Global arm/disarm code 13.5.1 13.5.1 Explanation of Explanation of U U U U ser Code ser Code Properties Properties 13.5.1 13.5.1...

  • Page 19: Adding User Remotes - Option

    Repeat step 6 until the user code has been assigned to the correct partition(s). Press the [#] key to exit the User Program Mode. 13.7 13.7 13.7 13.7 A A A A dding User Remotes dding User Remotes dding User Remotes – – – – Option 8 dding User Remotes Option 8 Option 8...

  • Page 20: Viewing A User Name - Option 11 (Slot Known)

    13.10 13.10 13.10 13.10 Viewing a User Name Viewing a User Name – – – – Option 11 Viewing a User Name Viewing a User Name Option 11 Option 11 Option 11(Slot Known (Slot Known (Slot Known) ) ) ) (Slot Known (LCD Keypad only) Hold down the [*] key until the beep,...

  • Page 21: Buzz Zones

    Entering a [ZONE NUMBER] will toggle the corresponding LED. For example, [2] [*] will turn LED 2 on (if it was off) and off (if it was on). (Flashing zone LED’s indicate zones that have been set as Buzz zones and therefore cannot be changed in this menu) Turn on the LED’s corresponding to the zones you need to be Stay zones.

  • Page 22: Chime Zones

    Chime Zones Chime Zones Chime Zones Chime Zones The chime mode allows the user to monitor nominated zones while the system is disarmed. The keypad buzzer will sound five times when the nominated zone is violated - the siren will NOT sound and no alarm condition will be reported.

  • Page 23: Changing A Partition

    Table 3 Trouble Conditions Indicator Indicator Trouble Condition Trouble Condition Indicator Indicator Trouble Condition Trouble Condition AC mains failure Failure to communicate successfully to monitoring company Phone line trouble Siren tamper Low battery Loss of clock timer Engineer reset Box tamper Tamper on peripheral device Communication loss to peripheral device Loss of power to peripheral devices...

  • Page 24: Index

    Index Index Index Index A A A A Alarm Memory ......................…......6, 8, 14, 27 Arm ........................…....6, 8, 9, 12, 14, 18, 24, 27 Away ................................10, 12 Quick Away ..............................9, 10 Quick Stay.............................…9, 11, 27 Stay .................…..........6, 9, 10, 11, 12, 20, 21 Stay &...
  • Page 25 P P P P Panic...............................6, 7, 9, 13, 14, 21 Push to Arm Zone............................see "Zone" Q Q Q Q Quick Away Arming.............................see "Arm" Quick Stay Arming............................see "Arm" R R R R Remote Control..........................see "Key-switch" Reporting Code............................6, 13, 14, 18 S S S S Siren...........................7, 9, 10, 12, 13, 14, 22, 23, 27 Stay Arm..............................see "Arm"...
  • Page 26 IDS816 User Manual 700-283-01H Issued January 2009...
  • Page 27 Quick Reference Quick Reference Quick Reference Quick Reference User Guide User Guide User Guide User Guide Description Description Programming Programming Description Description Programming Programming Add a User Code [*] [Master Code] [*] [0] [*] [New Code] [*] Change a User Code [*] [Master Code] [*] [2] [*] [Old Code] [*] [New Code] [*] [*] [Master Code] [*] [3] [*] [User Code] [*] View a Slot Number...
  • Page 28 IDS816 User Manual 700-283-01H Issued January 2009...
