About This Manual
This document includes the overall facility requirements that will be needed to have a successful installation when our authorized 3D Systems
representatives arrive to install your 3D printer system.
®

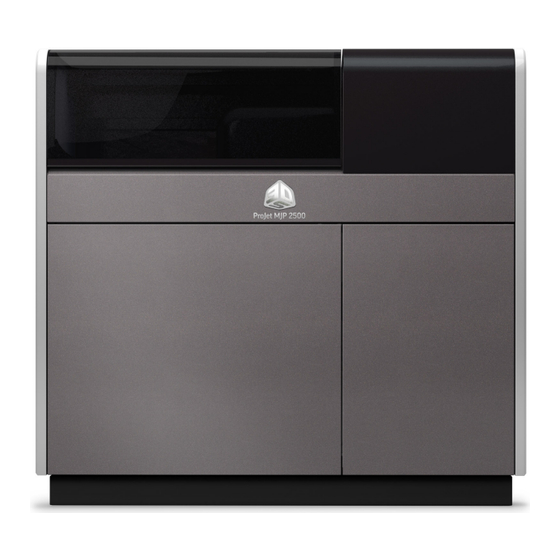

P r o J e t M J P 2 5 0 0 , M J P 2 5 0 0 P l u s &
M J P 2 5 0 0 W
Facility Requirements Guide
p/n 33-D131 Rev C
Original Instructions
Advertisement
Table of Contents
Related Manuals for ProJet MJP 2500
Summary of Contents for ProJet MJP 2500
- Page 1 Facility Requirements Guide ® P r o J e t M J P 2 5 0 0 , M J P 2 5 0 0 P l u s & M J P 2 5 0 0 W ...
-
Page 2: What Is A Facility Requirements Guide
What is a Facility Requirements Guide This guide provides important information on selecting a facility location and planning for the installation of 3D Systems’ ProJet® MJP 2500 Professional Printing System. It also presents planning guidelines to facilitate fast, convenient installation and operation of your 3D printer system. - Page 3 Common Symbols Used Throughout 3D Systems Manuals The ProJet® MJP 2500 Professional Printing System is part of 3D Systems’ Multi-Jet-Printing (MJP) product line. UV RADIATION HAZARD: Invisible UV radiation is accessible in the vicinity of this sign or behind the panel. Radiation can cause eye injury or blindness, burn injury and/or re.
- Page 4 The ProJet Professional Printing System Your ProJet® MJP 2500 Series Printer ships with the following: One crated ProJet® MJP 2500 Professional Printing System containing the following accessories and materials. Two Build Platforms (one on the printer and one in an accessory box) Region-speci c “country kit” consisting of one power cable Two full cartridges of VisiJet Part Material and two full cartridge of Support Material...
-
Page 5: Preparation For Shipment Arrival
Preparation for Shipment Arrival The following topics should be arranged PRIOR TO THE ARRIVAL OF THE SYSTEM, to simplify installation of the ProJet® MJP 2500 Professional Printing Systems. Make sure the following resources are available: ____ A forklift or similar, heavy-duty equipment required for unloading the 3D printer system crate from the truck to the de-crating location. (Forklift is not required to move 3D printer system into where it will be installed once the crate is removed.) -
Page 6: Facility Guidelines
Each 3D printer system requires use of a dedicated circuit that will allow for 100-127 VAC, 50/60 Hz, 15A, single phase or 200-240 VAC, 50 Hz, 10A, single phase Single C14 receptacle. All ProJet® MJP 2500 series printers relies on a connection to the mains protective earth (ground). This provides a one level of protection to the user (Basic Insulation). ... -
Page 7: Client Workstation Requirements
3D SPRINT client software is located on 3DS Central can be installed on each intended users’ workstation to allow them to select, preview, and submit jobs; as well as manage the print queue. For more information on sending a le to the 3D printer system see the ProJet® MJP 2500 User’s Guide available on:... -
Page 8: Network Interface
Network Interface The ProJet® 2500 Professional Printing System requires an Ethernet network connection to transfer print jobs from workstation(s) to the printer. An established TCP/IP network is setup and enabled. An RJ45 Ethernet network connection for each printer to be installed at the delivery site must be installed, tested and functioning. -
Page 9: Unit Portability
1” over 3’ Unit Portability The ProJet® 2500 Printing System is equipped with four caster-type rollers and four leveling feet. Leveling can be adjusted by locking the casters in place while adjusting leveling feet as required until 3D printer system is level. - Page 10 At least 12" (30cm) of unobstructed oor space is recommended behind and on either side of the printer for air ow with 18" (46cm) in front of the printer to be able to open the material drawer. It is recommended that 36" (91cm) either behind or in front of the printer for service access. Behind would allow service to obtain access from the back, if the space is left in front, the printer will need to be moved out away from wall using that space in front to do so.
-
Page 11: Material Storage
A freezer is recommended but not mandatory for easy part removal. If you decide to include a freezer as part of your post processing equipment ensure that it will accommodate the maximum build size of 12” x 6” x 8” (L x W x H). Any standard freezer capable of accommodating this size will be su cient. -
Page 12: Operating Environment
Air Conditioning A number of the ProJet® MJP 2500 System’s internal electronic components as well as the part material, are sensitive both to ambient temperature and, to some extent, humidity. In addition, the build process itself can be temperature-sensitive within certain limits. The operating temperature range should be between 18-28°C (64-82°F);... - Page 13 Thank You 3D Systems is con dent that you will be very satis ed with the purchase of your ProJet® MJP 2500 Professional Printing System. Enjoy the ability to produce high quality parts from your 3-D digital data. We are dedicated to developing a relationship that extends beyond the terms of the sale. Please take the time to contact 3D Systems with questions, comments or suggestions about your ProJet®...
