ProJet 3-D Modelers Quick Reference Manual

3-D Modelers
It will be necessary to register your ProJet
the explorer browser. You will be asked to supply a "User ID" which should be something that is easily remembered; and a password. Your password is your
modeler's serial number that is located on the back side of the machine. Once registered, an email confirmation will be sent to you with a link to 3D
Systems' 3dpedia login page. (http://3dpedia.3dsystems.com) . Please log in using the user name and password as in the confirmation email to access the
user guide.

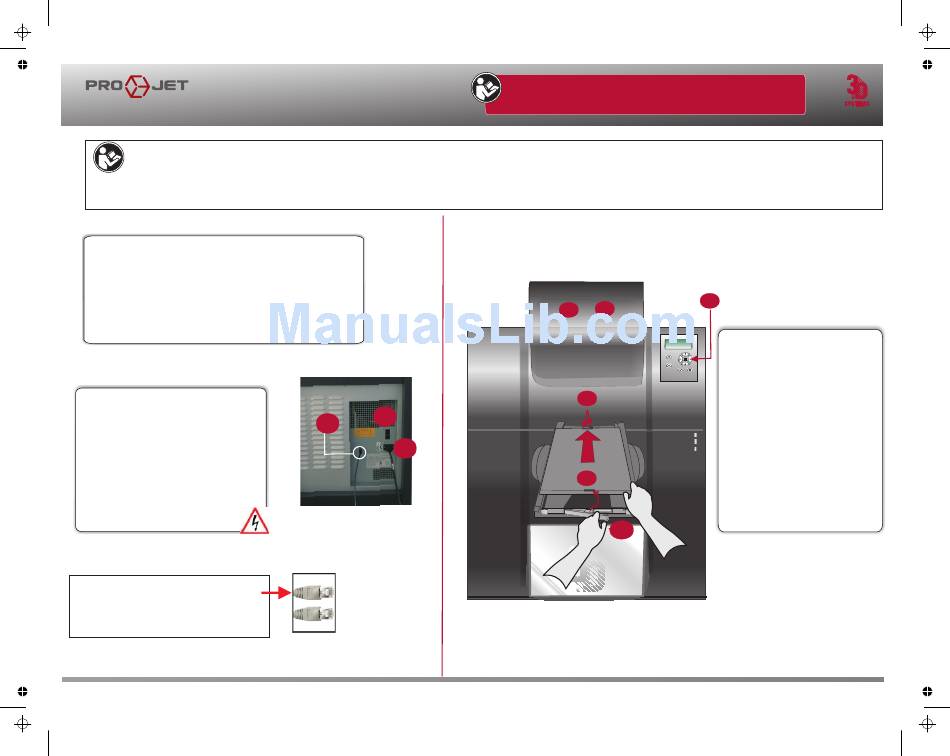

POWER SUPPLY
Verify facility's electrical service rating before connecting power to
the modeler.
Facility electrical requirement:
Grounded, 1-phase electrical circuit
Service rating: 100–127 VAC, 50/60 Hz, 15A (max.)
Plug p ower cord (A) into power outlet on
back side of modeler and into facility's power
outlet.
Switch power on (B).
Plug RJ-4C cable (C) into terminal on back
side of modeler and into computer's USB
terminal.
NOTE:
A shielded Ethernet cable (C) is
required when connecting from the
modeler to the end user's computer.
3D Systems Confidential
Quick Reference Guide
TM
3-D Production System, to access the ProJet Online User Guide. To register, type in " projet.3dsystems.com" in
B
B
C
B
A
BEFORE OPERATING THE MODELER, ADHERE TO ALL PERSONAL AND
SAFE HANDLING OF MATERIALS DESCRIBED IN THE SAFETY SECTIONS
TM
OF THE PROJET USER GUIDE.
TM
PLATFORM
INSTALLATION
2.E
2.A
2.C
2.B
2.D
Quick Reference Guide
2.F
NOTE: Clean platform using
Isopropyl Alcohol before installing
into modeler.
(2.A) Open the chamber door.
(2.B) Align platform's rear notch
into x-carriage's locating tab (2.C).
Align platform's front notch (2.B)
into latch's front locating tab (2.D )
and secure latch.
Close the front door
(2.F) and press ONLINE.
PN 305175-00, Rev. C, 10/08
