Arkray AUTION MAX AX-4030 Operating Manual

Fully automated urine analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUTION MAX AX-4030 and is the answer not in the manual?

Questions and answers

Dakota C Cain
April 15, 2025

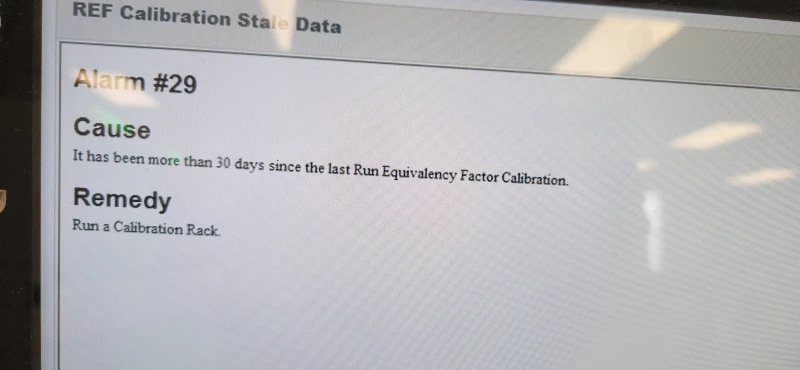

How do you complete the monthly Ref calibration? I've done the SG calibration, but I'm unsure how to go from there.

User image 67fe67d55c340
0
1 comments:
Mr. Anderson
April 15, 2025

To complete the monthly S.G. (Ref) calibration for the Arkray AUTION MAX AX-4030:

1. Prepare the S.G. standard solutions:
- Use two solutions: Low standard (<1.002>) and High standard (1.040–1.050).
- Load them correctly into the sample rack.

2. Start the calibration:
- Press the Start button.
- The instrument measures the solutions when the sample rack reaches the aspirating position.

3. Wait for measurement:
- The screen shows “Measuring... Please wait...”.

4. Complete the calibration:
- Once done, the message “Measurement completed” appears.

5. Save the calibration values:
- Use the numeric keys (0–9) to input calibration values.
- Press OK to save.

Note: If calibration is stopped midway, all calibration results are aborted.

This answer is automatically generated

0
Soni Curtiss
March 21, 2025

Hello, I was wondering if we can turn off the thermal printer. thank you in advance.

0
1 comments:
Mr. Anderson
May 14, 2025

Yes, the Arkray AX-4030 thermal printer can be turned off by pressing the standby switch after ensuring the standby screen is displayed.

This answer is automatically generated

0
Tanya Jones
March 4, 2025

What does an exclamation mark (!) next to the ketone results mean?

0
1 comments:
Mr. Anderson
March 4, 2025

An exclamation mark (!) next to the ketone (KET) results on the Arkray AUTION MAX AX-4030 indicates an abnormal result.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Arkray AUTION MAX AX-4030

Summary of Contents for Arkray AUTION MAX AX-4030

  • Page 2: Premise

    Premise This operating manual contains important information on the functions of the AUTION MAX™ AX-4030. This operating manual is issued by ARKRAY, Inc. Read carefully prior to starting up the unit. This instrument is IVD medical device. This product conforms to European Directive 98/79/EC.

  • Page 3: Introduction

    ARKRAY, Inc. • The information in this operating manual is subject to change without notice. • ARKRAY, Inc. has made every effort to prepare this operating manual as best possible. Should you discover anything strange, incorrect or missing, contact your distributor.

  • Page 4: Symbols

    AUTION MAX AX-4030 OPERATING MANUAL Symbols The following symbols are used in this operating manual and labels on this instrument to call your attention to specific items. For Your Safety Follow the instructions given here to prevent exposure to pathogenic microbes.

  • Page 5: Caution Labels

    AUTION MAX AX-4030 OPERATING MANUAL Caution Labels This instrument has several caution labels on the areas that have potential dangers. Please learn potential dangers warned by each label and observe the precautions described below. ■ Front . Sample aspirating section The tip of the nozzle descends from here to aspirate samples.
  • Page 6 AUTION MAX AX-4030 OPERATING MANUAL ■ Rear . Drain joint Liquid waste is discharged from this joint to the drain bottle. Do not touch liquid waste with unprotected hands because the drainage contains urine samples. When cleaning the drain joint, tube and bottle, wear protective gloves to prevent exposure to pathogenic microbes.
  • Page 7 AUTION MAX AX-4030 OPERATING MANUAL ■ Inside 1. Transport tray 2. Introduction tray . Transport tray The transport tray can be contaminated by urine samples. Do not touch this tray with unprotected hands. Wear protective gloves to prevent exposure to pathogenic microbes while cleaning these parts.
  • Page 8 AUTION MAX AX-4030 OPERATING MANUAL ■ Washing solution bottle . Washing solution bottle Fill this bottle with the washing solution prepared as specified. ■ Drain Bottle . Drain Bottle Liquid waste is collected in this bottle. When discarding liquid waste, wear protective gloves to prevent exposure to pathogenic microbes.

  • Page 9: Table Of Contents

    AUTION MAX AX-4030 OPERATING MANUAL Table of Contents Premise ................3 ..7 Relocating the Instrument ......-39 Introduction ..............4 Symbols ................ 1.7 Basic Operations ..........1-40 Caution Labels.............. .7. Components on the Operator Panel ....-40 Table of Contents ............0 .7. Screen Configuration ........
  • Page 10 AUTION MAX AX-4030 OPERATING MANUAL .8.4 Error and Trouble List (Automatic Report) ..-4 4.. Washing the Introduction Tray ....... 4- .8. Trouble List (Manual Report) ......- 4.3 Replacement of Consumables ......4-15 .8. Check Measurement Result Report ....- .8.7 List of Current Parameter Settings ....
  • Page 11 AUTION MAX AX-4030 OPERATING MANUAL 5.4 Measurement-Related Messages ....5-17 .4. Results-Related Errors (Printed Results Reports: on the lowest line) ......-7 No sample ..........-7 Skipped............. -7 Reflection light intensity drift ..... -7 Excess reflectivity ........-8 Test strip out-of-position ......-8 Abnormal sampling ........
  • Page 12 AUTION MAX AX-4030 OPERATING MANUAL Chapter Before Use 1.1 Outline of the AX-4030 ..........1-2 1.1.1 What You Can Do with the AX-4030 ..1-2 1.1.2 Features ............1-3 1.1.3 Specifications ..........1-5 1.1.4 Measurement Principle .......1-6 1.1.5 Rank Table ..........1-11 1.2 Unpacking ...............1-13 1.2.1 Instrument ..........1-13 1.2.2 Sampler ............1-13 1.2.3 Accessories ..........1-14 1.2.4 Accessory Case ........1-15 1.3 Components ............1-16...

  • Page 13: Outline Of The Ax-4030

    AUTION MAX AX-4030 OPERATING MANUAL Outline of the AX-4030 1.1.1 What You Can Do with the AX-4030 Measurement Items The AX-4030 uses test strips to analyze urine samples fully automatically. Comprehensive assessments can be made based on color-tone and turbidity measurements, abnormal coloration detection, S.G.

  • Page 14: Features

    AUTION MAX AX-4030 OPERATING MANUAL 1.1.2 Features ■ Easy to operate Daily measurements are done in three easy steps: 1) load the test strips, 2) load the samples, and 3) press the start key. After pressing the start key, the instrument automatically performs the entire series of operations to effectuate measurement: test strip picking, sample transport, sample aspiration, test strip staining, measurement, and test strip disposal.
  • Page 15 AUTION MAX AX-4030 OPERATING MANUAL Abnormal coloration detection The instrument automatically detects false positive reactions of reagent pads caused by drug- administered urine and notifies you by adding a “!” to printed measurement results. ■ Memory capacity for measurement results of 2,500 samples Measurement results for a total of 2,500 samples, between normal measurements and STAT measurements, can be stored in memory.

  • Page 16: Specifications

    AUTION MAX AX-4030 OPERATING MANUAL 1.1.3 Specifications Specifications Product AUTION MAX AX-4030 Configuration Instrument, sampler, and accessories Sample Urine Reagent AUTION Sticks 9EB Instrument specifications Measurement items GLU (Glucose), PRO (Protein), BIL (Bilirubin), URO (Urobilinogen), PH (pH), BLD (Blood), KET (Ketones), NIT (Nitrite), LEU (Leukocytes), S.G. (Specific gravity), turbidity, and color tone Measurement range Test strip: For rank table, see page 1-11. S.G.: 1.000 to 1.050 (Resolution: 0.001) Color tone: For color classification diagram, see page 1-9. Turbidity: Three levels including “clear”, “turbid”, and “excessively turbid” Measurement method Test strip: Dual-wavelength reflectance measurement (Single wavelength for BLD) S.G.: Reflection refractometry Color tone: Light-transmission measurement...

  • Page 17: Measurement Principle

    AUTION MAX AX-4030 OPERATING MANUAL 1.1.4 Measurement Principle This instrument measures purpose-specific test strips by dual-wavelength reflectance measurement (single wavelength for BLD) and urine specific gravity (S.G.) by reflection refractometry. This section explains the principles for measuring “test strips”, “specific gravity”, “color”, and “turbidity”.
  • Page 18 AUTION MAX AX-4030 OPERATING MANUAL These reflectivities “R” are compared against calibration curves stored in the instrument and output as measurement results. Also, temperature is corrected to eliminate changes caused by environmental temperature. Specific Gravity (S.G.) Measurement Specific gravity of a urine sample is obtained by measuring the refraction of the sample using a prism and subjecting results to a calculation formula (reflection refractometry).
  • Page 19 AUTION MAX AX-4030 OPERATING MANUAL 3. The obtained specific gravity value of the sample is corrected using correction coefficients a and SGx = a × SGx´ + b SGx: Sample’s specific gravity after calibration correction SGx´: Sample’s specific gravity before calibration correction...
  • Page 20 AUTION MAX AX-4030 OPERATING MANUAL In color-tone measurement, red (635 nm), green Contrast and hue indications (23 colors) (525 nm) and blue (470 nm) lights are irradiated on COLORLESS the sample in the cylindrical tube and the hue and YELLOW...
  • Page 21 AUTION MAX AX-4030 OPERATING MANUAL Turbidity Measurement An internal turbidity/color measurement unit measures sample turbidity using transmitted and scattered lights. 470 nm/525 nm/635 nm Cylindrical cell (i.d. 1.8 mm) multiple wavelength LED Photodiode (transmitted light) Photodiode (Scattered light) Light of 635 nm is irradiated on the sample in the cylindrical cell and turbidity is calculated using the formula below.

  • Page 22: Rank Table

    AUTION MAX AX-4030 OPERATING MANUAL 1.1.5 Rank Table Measurement results are represented as qualitative and/or semi-quantitative values as listed below. The shaded areas contain abnormal values, which are preceded by an abnormal mark (*) on the displayed and printed reports.
  • Page 23 AUTION MAX AX-4030 OPERATING MANUAL NIT (nitrite) Rank Qualitative – LEU (leukocytes) Rank Qualitative – Semiquantitative (Leu/μL) 1-12 AX-4030...

  • Page 24: Unpacking

    AUTION MAX AX-4030 OPERATING MANUAL Unpacking The instrument boxes in three cartons. Unpack the boxes and make sure you have all items listed in this section. If anything is missing or damaged, contact your distributor. 1.2.1 Instrument 2. Waste box 1.

  • Page 25: Accessories

    AUTION MAX AX-4030 OPERATING MANUAL 1.2.3 Accessories 2. Drain bottle 3. Power cord 4. Thermal printer paper 1. Washing solution bottle Orange adapter × 7 Dark blue adapter × 3 Light blue adapter Black label Black label 5. Rack set 6.

  • Page 26: Accessory Case

    AUTION MAX AX-4030 OPERATING MANUAL 1.2.4 Accessory Case 1. Check strip set 2. Phillips screwdriver 3. Filter set 4. Fuses 5. Tygon tube 6. Silicon tube 7. Silicon tubes 8. Blower brush 9. White plate 10. Tweezers Items Descriptions Qty.

  • Page 27: Components

    AUTION MAX AX-4030 OPERATING MANUAL Components 1.3.1 Front View With the side cover open Components Descriptions Standby switch Use this switch to turn on and off the instrument for daily use. The switch lamp illuminates green while the power is on. Front cover This protects the nozzle drive unit and prevents users from accidentally touching the nozzle. Operator panel There are operation keys for starting measurement and entering numeric values. See “1.7 Basic Operations” on page 1-40. Display You can view results and check status information here. Built-in printer This thermal printer prints results and parameter settings. Feeder protective cover This cover protects two feeders. Feeder cover 1 This cover has a locking lever to open and close feeder 1. Feeder cover 2 This cover has a locking lever to open and close feeder 2. Side cover The pumps for aspirating samples, for staining samples on test strips, and for flushing the washing solution are located inside. The trap bottle is also attached here.

  • Page 28: Rear View

    AUTION MAX AX-4030 OPERATING MANUAL 1.3.2 Rear View Components Descriptions Drain joint (D) Connect the tube from the drain bottle here. Washing solution joint (W) Connect the tube from the washing solution bottle here. Washing solution sensor terminal Connect the liquid sensor cord of the washing solution bottle here. Hand-held barcode reader terminal Connect the optional hand-held barcode reader here. Data output terminal (P)* Connect the communication cable from an RS-232C port of an external device here. Data output terminal (E) Connect the communication cable from an RS-232C port of the AX-4030-exclusive device here. START terminal (1) Use these terminals to attach the extended sampler or joining unit A. STOCK terminal (2) Cooling fan The fan exhausts heated air to keep the inside of the instrument cool. Cooling fan The fan draws in air from outside to cool the inside of the instrument. Main power switch Press this switch to turn on or off the main power supply. Keep this switch on for daily use, and turn it off when cleaning specific components or during long-term disuse. Power input terminal Connect the power cord which came with the instrument here.

  • Page 29: Installation

    AUTION MAX AX-4030 OPERATING MANUAL Installation 1.4.1 Precautions in Instrument Installation Before installation of the instrument, read the following notes and always take proper safety precautions. Install the instrument under the supervision of a serviceperson. It is dangerous to handle the instrument with the covers open. High voltage parts are located inside.
  • Page 30 AUTION MAX AX-4030 OPERATING MANUAL ■ Install the instrument in a place not exposed to direct sunlight, condensation or wind. These factors may cause incorrect measurement results, as well as deformation of or damage to the instrument. ■ Apply the correct voltage (100 to 240 V AC) and frequency (50/60 Hz) to the instrument.

  • Page 31: Unlocking The Instrument

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.2 Unlocking the Instrument To prevent the instrument from being damaged in transport, various parts are anchored before shipping from the factory. Remove these retainers before installing the instrument. Also, before doing anything, read “1.4.1 Precautions” on page 1-18.
  • Page 32 AUTION MAX AX-4030 OPERATING MANUAL Remove the anchoring tape from the identification section. 1 Make sure both feeder covers are locked. Feeder protective cover 2 Open the maintenance cover. 3 Open the feeder protective cover. Feeder covers • The cover stops at a 120° angle.
  • Page 33 AUTION MAX AX-4030 OPERATING MANUAL Close the covers. 1 Close the covers in the order of the side cover (a), Feeder protective cover feeder protective cover (b), and maintenance cover (c). Side cover Maintenance cover 1-22 AX-4030...

  • Page 34: Attaching The Sampler

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.3 Attaching the Sampler Prepare: Sampler, and Phillips screwdriver Open the splash guard. 1 Insert the tip of a Phillips screwdriver in the screw holes on the splash guard to loosen the two screws inside.
  • Page 35 AUTION MAX AX-4030 OPERATING MANUAL 6 Feed the sampler cables through the left side of the instrument. 7 Loosen the temporarily-tightened screw using a Phillips screwdriver, and slide the splash guard down. NOTE: Make sure the cables do not get caught in Splash guard Cables Screw holes the splash guard. 8 Tighten the two screws using a Phillips screwdriver to secure the splash guard.
  • Page 36 AUTION MAX AX-4030 OPERATING MANUAL Adjust the auxiliary legs of the sampler. NOTE: Lower the auxiliary legs of the sampler until they contact the countertop. Unless the sampler is stable, it can deform under its own weight and the samples and the nozzle can be damaged. NOTE: The sampler has one auxiliary leg on each the right and left side of the bottom panel and another one below the STAT port. Lower all three legs to the countertop. The sampler is unstable on just one or two auxiliary legs. 1 Remove the two rubber caps from the sampler. • You can see the screw heads of the auxiliary legs. 2 Turn the auxiliary leg screws clockwise with a Phillips screwdriver until the auxiliary legs contact the countertop.

  • Page 37: Installing The Washing Solution Bottle

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.4 Installing the Washing Solution Bottle Prepare: Concentrated washing solution 3 (for AUTION MAX), purified water, washing solution bottle, sealing film, and Tygon tube REFERENCE: Purchase the concentrated washing solution 3, which is not supplied with the instrument. Prepare the washing solution. 1 Dilute concentrated washing solution 3 with...
  • Page 38 AUTION MAX AX-4030 OPERATING MANUAL Connect the sensor cord and tube. 1 Connect the liquid sensor cord from the bottle cap to the washing solution sensor terminal “S” on the rear panel. 2 Cut the Tygon tube to an appropriate length (max. 1 m).

  • Page 39: Installing The Drain Bottle

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.5 Installing the Drain Bottle Set the drain bottle at the same or a lower height than the surface that the instrument sits on. If higher than the instrument base, liquid waste may not drain properly and consequently leak. Contacting liquid waste with unprotected hands may expose you to pathogenic microbes.

  • Page 40: Installing The Waste Box

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.6 Installing the Waste Box Install the waste box for collecting used test strips. Pull out the waste box tray. 1 Pull out the waste box tray from the left panel of the instrument. Waste box tray Install the waste box.

  • Page 41: Connecting The Power Cord And External Devices

    AUTION MAX AX-4030 OPERATING MANUAL 1.4.7 Connecting the Power Cord and External Devices Connect the instrument to a receptacle using the supplied power cord, and also to an external device as needed. Prepare: Power cord and, if necessary, communication cable for the external device Use the specified RS-232C cross cable or Ethernet cable to connect an external device to the instrument.

  • Page 42: Starting Up

    AUTION MAX AX-4030 OPERATING MANUAL Starting Up This section describes what you should do next after completing installation; it includes turning on the power and setting up the printer and system clock. How to turn off the power is also explained at the end of this section.
  • Page 43 AUTION MAX AX-4030 OPERATING MANUAL • The instrument will read the parameter settings, and Startup then initialize the hardware. Initializing... Please wait... • Warm-up will complete in 2 minutes and the Ready for measurement standby screen shown at right will appear. You...

  • Page 44: Setting Up The Printer And System Clock

    AUTION MAX AX-4030 OPERATING MANUAL 1.5.2 Setting up the Printer and System Clock Before using the instrument, load the thermal printer paper into the built-in printer and set the system clock. Prepare: Thermal printer paper Load the thermal printer paper.

  • Page 45: Turning Off The Power

    AUTION MAX AX-4030 OPERATING MANUAL 1.5.3 Turning Off the Power Use the following procedure to turn off the instrument. 1 Make sure the standby screen is displayed. Ready for measurement • If a different screen is displayed, press 2006-01-09 10:00 Go back return to the standby screen.

  • Page 46: Relocation

    AUTION MAX AX-4030 OPERATING MANUAL Relocation 1.6.1 Precautions in Instrument Relocation Before relocating the instrument, read the following instructions and always take proper safety precautions. ■ Remove the drain bottle, washing solution bottle and sampler from the instrument. ■ Drain washing solution from the flow line. Moving the instrument with washing solution in the flow line may damage the instrument.

  • Page 47: Discharging The Washing Solution

    AUTION MAX AX-4030 OPERATING MANUAL 3 Return any test strips found in the feeders to the bottle. Check for used test strips. 1 Pull out the waste box tray to check if there are any used test strips in the box.

  • Page 48: Disconnecting The Tubes, Sensor Code, And Cables

    AUTION MAX AX-4030 OPERATING MANUAL 1.6.5 Disconnecting the Tubes, Sensor Code, and Cables Prepare: Protective gloves Wear protective gloves to prevent exposure to pathogenic microbes. Discard used protective gloves and liquid waste in accordance with local regulations for biohazardous waste.

  • Page 49: Detaching The Sampler

    AUTION MAX AX-4030 OPERATING MANUAL Disconnect the liquid sensor cord and tube of the washing solution bottle. 1 Disconnect the liquid sensor cord from the washing solution sensor terminal “S” on the rear panel. 2 Disconnect the tube of the washing bottle from the washing solution joint “W” on the rear panel.

  • Page 50: Relocating The Instrument

    AUTION MAX AX-4030 OPERATING MANUAL Disconnect the sampler cables from the instrument. 1 Loosen the earth anchoring screw with a Phillips screwdriver and disconnect the earth line from the instrument. Earth line Earth anchoring screw 2 Insert the tip of a Phillips screwdriver in the screw holes on the splash guard to loosen the two screws inside.

  • Page 51: Basic Operations

    AUTION MAX AX-4030 OPERATING MANUAL Basic Operations The operator panel has 16 operation keys and a 34-column by 14-line color liquid crystal display. This section describes basic instructions you should learn in order to run urine tests and make parameter settings.

  • Page 52: Screen Configuration

    AUTION MAX AX-4030 OPERATING MANUAL 1.7.2 Screen Configuration This section describes the configuration of the screens you will see while operating the instrument. ■ Standby screen The standby screen is initially displayed Ready for measurement after warm-up completes, telling you the...

  • Page 53: Menu Operations And Examples

    AUTION MAX AX-4030 OPERATING MANUAL 1.7.3 Menu Operations and Examples Basic Operations ■ Function labels and function keys The lowest line of the screen contains up to four function labels for activating different functions Menu Meas No. Strip S.G. Cal depending on the status of the instrument.

  • Page 54: Chapter 2 Measurement

    AUTION MAX AX-4030 OPERATING MANUAL ■ Moving between setup items The setup screen may contain two or View more setup items. For example, the (2300) 2006-01-09 11:07 screen shown at right has four [View] Date setup items, [Date] [Measurement] <06-01-06> - <06-01-08> (YY-MM-DD)
  • Page 55 AUTION MAX AX-4030 OPERATING MANUAL Entering Alphanumerics Use the keys on the operator panel to enter numeric values and alphabetic characters in the entry fields. ■ Numeric values Entry fields that accept numeric values (e.g. a measurement number) have the cursor at the right- most digit.
  • Page 56 AUTION MAX AX-4030 OPERATING MANUAL ■ ID This instrument can assign an ID to each sample or control. An ID can contain up to 18 digits, and include numbers, alphabetic characters (case sensitive), and hyphens (-). For example, to enter “IM-060109-134”: 1 Press 4 four times to enter “I”.
  • Page 57 AUTION MAX AX-4030 OPERATING MANUAL 1-46 AX-4030...
  • Page 58 AUTION MAX AX-4030 OPERATING MANUAL Chapter Measurement 2.1 Before Making Measurements.........2-2 2.. Flowchart of Operational Procedure ...2-2 2..2 Measurement and Calibration .....2-3 2..3 Measurement Terminology ......2-4 2..4 Sample Containers and Sample Racks ..2-7 2.2 Measurement Precautions ........2-9 2.2. Handling the Instrument ......2-9 2.2.2 Handling Samples ........2-0 2.2.3 Handling Test Strips .........2- 2.3 Preparation for Measurement........2-12 2.3. Checking Wastes and Consumables ..2-2 2.3.2 Turning on the Power .......2-4...

  • Page 59: Before Making Measurements

    AUTION MAX AX-4030 OPERATING MANUAL Before Making Measurements 2.1.1 Flowchart of Operational Procedure Check the instrument 1. Check for used test strips and liquid waste. 2. Check the washing solution and printer paper. Press standby switch to power on. Standby screen...

  • Page 60: Measurement And Calibration

    AUTION MAX AX-4030 OPERATING MANUAL 2.1.2 Measurement and Calibration This instrument is capable of 4 types of measurements: normal measurement and STAT measurement for measuring patient samples, control measurement made to maintain measurement precision, and check measurement for checking to see that the instrument is working correctly.

  • Page 61: Measurement Terminology

    AUTION MAX AX-4030 OPERATING MANUAL 2.1.3 Measurement Terminology ■ Batch A batch is a group of samples that the instrument measures successively. For practicality’s sake, a batch includes any number of samples measured after the start key has been pressed and until the instrument puts itself on standby again.
  • Page 62 AUTION MAX AX-4030 OPERATING MANUAL ■ ID With the barcode reader, the instrument can manage individual samples by IDs read from barcoded sample tubes. An ID can contain up to 18 digits and can include numbers, alphabet and special characters (see page 1-45). For port STAT measurement, you can manually input IDs by key operation.
  • Page 63 AUTION MAX AX-4030 OPERATING MANUAL Loop transportation A total of 10 sample racks can be loaded in the sampler at a time: 5 racks on the loading side and another 5 racks on the unloading side. This means a maximum of 100 samples can be measured continuously.

  • Page 64: Sample Containers And Sample Racks

    AUTION MAX AX-4030 OPERATING MANUAL 2.1.4 Sample Containers and Sample Racks Sample Containers Use the sample tubes that comply with the standards shown below. To have the built-in barcode reader read barcodes, place the labels in the correct position on the tubes.
  • Page 65 AUTION MAX AX-4030 OPERATING MANUAL ■ STAT and control rack The STAT and control rack is dedicated to STAT measurement and control measurement. STAT measurement requires samples to be loaded into ports 1 to 7, and control measurement requires controls to be loaded into ports 8 to 10.

  • Page 66: Measurement Precautions

    AUTION MAX AX-4030 OPERATING MANUAL Measurement Precautions The following sections describe precautions you should take when handing instrument, samples, and test strips. When you use the instrument for the first time, read through these sections before start measurement. 2.2.1 Handling the Instrument This instrument is to be operated by qualified persons only.

  • Page 67: Handling Samples

    AUTION MAX AX-4030 OPERATING MANUAL 2.2.2 Handling Samples TAKE THE UTMOST CARE WHEN HANDLING URINE. This instrument uses urine as sample and as an ingredient of control solution. Urine may be contaminated by pathogenic microbes that can cause infectious diseases.

  • Page 68: Handling Test Strips

    AUTION MAX AX-4030 OPERATING MANUAL 2.2.3 Handling Test Strips REFERENCE: Purchase the test strips specified for the instrument because the strips are not supplied with the instrument. ■ Use only test strips specified for the instrument. “AUTION Sticks 9EB” are available for use with the instrument. Carefully read the package insert and observe the expiration date.

  • Page 69: Preparation For Measurement

    AUTION MAX AX-4030 OPERATING MANUAL Preparation for Measurement This section describes the tasks you should carry out on a daily basis before testing samples, which include checking wastes and consumables, turning on the power, assigning the feeders to the item racks, and preparing test strips and samples.
  • Page 70 AUTION MAX AX-4030 OPERATING MANUAL Check the washing solution. 1 Check the washing solution bottle to see if it contains a sufficient volume of solution. • If the solution is getting low, discard the remaining solution, and transfer newly prepared solution to the bottle.

  • Page 71: Turning On The Power

    AUTION MAX AX-4030 OPERATING MANUAL 2.3.2 Turning On the Power 1 Press the standby switch on the left side of the front panel. • The standby switch will light green. Standby switch • The message “Please wait...” will appear for a maximum of 20 seconds, followed by the product Please wait...
  • Page 72 AUTION MAX AX-4030 OPERATING MANUAL REFERENCE: Measurement-related parameters The instrument provides the parameters related to measurement operation listed below. Default settings have been made when shipped from the factory, and you can change the settings as you need. A list of current settings can be printed out from the printer (see “3.5.3 Printing the Current Parameter Settings” on page 3-25). Parameters Descriptions Default Page(s) Use of printer Enables or disables the built-in printer. 3-8 Use of external output Enables or disables the external output. Not use 3-20 Result format Selects the result format for normal, STAT, and Semiquantitative control measurements between “semiquantitative” and “reflectivity” respectively. Measurement start Determines whether sequential measurement Continue from number assignment numbers are assigned through batches, or the previous batch measurement number is reset at the beginning of each batch. Measurement number Determines whether measurement numbers...

  • Page 73: Loading Test Strips Into The Feeders

    AUTION MAX AX-4030 OPERATING MANUAL 2.3.3 Loading Test Strips into the Feeders On the standby screen, select the main feeder and the types of test strips to be used. Then, load the correct test strips into the feeders. IMPORTANT: Do not use the test strips beyond the expiration date or test strips having a discolored pad area even if they are within the expiration date.
  • Page 74 AUTION MAX AX-4030 OPERATING MANUAL 3 Below [Test strips in feeder ] [Test strips in Test strip setup , select the type of test strips to be loaded feeder 2] into each feeder. Test strips in feeder 1 • Press the hyphen key to change the options.
  • Page 75 AUTION MAX AX-4030 OPERATING MANUAL 2 Tilt the side panel of the storage section in the direction of the arrow. Desiccant bag 3 Take out a desiccant bag from the test strip bottle (When loading 200 strips) and attach it to the feeder cover.

  • Page 76: Assigning The Type Of Test Strips To The Item Racks

    AUTION MAX AX-4030 OPERATING MANUAL 2.3.4 Assigning the Type of Test Strips to the Item Racks Assign a feeder (1, 2, or main) to each item rack (rack ID #01 to #10) used for normal measurement. This allows the instrument to automatically eject appropriate test strips from the assigned feeder for measuring samples in the item rack.
  • Page 77 AUTION MAX AX-4030 OPERATING MANUAL Assign the types of test strips to rack IDs. 1 Choose a rack ID, from #01 to #10. Rack assignment for test strip • To move the cursor down, press (1100) 2006-01-09 10:12 • To move the cursor up, press #01 [ ×...

  • Page 78: Preparing Samples

    AUTION MAX AX-4030 OPERATING MANUAL 2.3.5 Preparing Samples Transfer samples into sample tubes, load the tubes into the sample racks, and place the sample racks in the sampler of the instrument. See “2.2.2 Handling Samples” on page 2-10 to learn precautions on samples.
  • Page 79 AUTION MAX AX-4030 OPERATING MANUAL Load the sample tubes into the sample racks. 1 Place the sample tubes into the ports of the item rack. • Use an item rack (rack ID #01 to #10) assigned to Gray adapters the feeder that contains the test strips to be used for measurement.

  • Page 80: Measurement Operations

    AUTION MAX AX-4030 OPERATING MANUAL Measurement Operations This section gives instructions for measuring samples continuously (normal measurement), and measuring higher priority samples (port/rack STAT measurement). 2.4.1 Normal Measurement: Measuring Samples Continuously Prepare: Item racks or optional normal racks, sample tubes, and protective gloves Wear protective gloves to prevent exposure to pathogenic microbes.

  • Page 81: Normal Measurement

    AUTION MAX AX-4030 OPERATING MANUAL Set the measurement start number. For information on the measurement start number, see “Measurement number” in “2.1.3 Measurement Terminology” on page 2-4. 1 On the standby screen, check the measurement start Ready for measurement number.
  • Page 82 AUTION MAX AX-4030 OPERATING MANUAL Prepare samples. 1 Pour samples into sample tubes and load them into the sampler. • See “2.3.5 Preparing Samples” on page 2-21. Start the normal measurement. 1 Press to start. Measuring... • The first sample rack will be transported to the 2006-01-09 11:15 aspiration position while “...
  • Page 83 AUTION MAX AX-4030 OPERATING MANUAL REFERENCE: To view results View Press to view the latest result. Pressing Results or can view the previous or next Date 2006-01-09 11:16 Kind NORMAL <<<<<<<< >>>>>>>> No. 0150 Po. 001-05 Strip 1: 9EB result. To return to the [Measuring...] screen, ID 000000000000000000 press Go back *PRO NORMAL !BLD *KET TURB S.G. 1.000 COLOR LIGHT YELLOW <<<<<<<<...

  • Page 84: Port Stat Measurement

    AUTION MAX AX-4030 OPERATING MANUAL 2.4.2 Port STAT Measurement: Measuring a Higher Priority Sample Port STAT measurement is for measuring a single sample loaded into the STAT port located at the center of the sampler. You may use the STAT port when you have only one sample to measure, or when you are asked to measure a new sample urgently while normal measurement is in progress.
  • Page 85 AUTION MAX AX-4030 OPERATING MANUAL Switch to the port STAT measurement mode. 1 During normal measurement or on standby, press to go to the screen. [STAT reservation] 2 Below , choose [Sample feeding] [Use port] STAT reservation • Press the hyphen key to switch between...
  • Page 86 AUTION MAX AX-4030 OPERATING MANUAL Start the port STAT measurement. How the STAT measurement takes place depends on On standby the status of the instrument when is pressed in STAT reservation step Use port If the instrument is on standby:...
  • Page 87 AUTION MAX AX-4030 OPERATING MANUAL When port STAT measurement is completed… • The result of the STAT measurement will be printed. • The instrument will then operate in a different way depending on the status before performing STAT measurement. If the instrument was on standby: The display will show “...

  • Page 88: Rack Stat Measurement

    AUTION MAX AX-4030 OPERATING MANUAL 2.4.3 Rack STAT Measurement: Measuring Higher Priority Samples Rack STAT measurement allows you to have up to 7 samples measured prior to the samples waiting for normal measurement in the sampler. This is accomplished by loading the higher priority samples into the STAT and control rack and placing the rack between the sample racks currently loaded in the sampler.
  • Page 89 AUTION MAX AX-4030 OPERATING MANUAL Set the measurement parameters. If you use the test strips in the main feeder, skip this step and go to step . The main feeder is indicated by a light blue background on the standby screen.
  • Page 90 AUTION MAX AX-4030 OPERATING MANUAL Start the rack STAT measurement. How the STAT measurement takes place depends on the status of the instrument. If the instrument is on standby: Measuring... 1 Press to measure the samples in the STAT and 2006-01-09 11:45 control rack.

  • Page 91: S.g. Calibration

    AUTION MAX AX-4030 OPERATING MANUAL S.G. Calibration Perform S.G. calibration of the instrument once a month using low and high S.G. standard solutions and a urinometer. Please ensure the urinometer conforms to the Brix – S.G. conversion formula described in “1.1.4 Measurement Principle” on page 1-7.
  • Page 92 AUTION MAX AX-4030 OPERATING MANUAL Load the S.G. solutions into the sample rack. 1 Transfer at least 2 mL of high solution into a sample tube. Ensure the liquid level is at least 40 mm above the bottom of the tube.

  • Page 93: Starting S.g. Calibration

    AUTION MAX AX-4030 OPERATING MANUAL 2.5.2 Starting S.G. Calibration Access the S.G. calibration parameters. 1 On the standby screen, press to go to the S.G. Cal Ready for measurement screen. [S.G. calibration] 2006-01-09 10:30 Measurement start No. 0001 Test strips in feeder 1...
  • Page 94 AUTION MAX AX-4030 OPERATING MANUAL Start the S.G. calibration. 1 Make sure the sample rack with the S.G. standard S.G. calibration solutions are correctly loaded into the sampler. Prepare S.G. standard solutions. 2 Press to start calibration. Start Start Go back •...

  • Page 95: Control Measurement

    AUTION MAX AX-4030 OPERATING MANUAL Control Measurement Perform control measurement at regular intervals so as to maintain the status of the instrument and measurement quality. Up to 3 types or concentrations of controls can be measured by loading them into the STAT and control rack (control measurement can be performed using at least one control, and does not always require three different controls).
  • Page 96 AUTION MAX AX-4030 OPERATING MANUAL Prepare controls. IMPORTANT: Read through the package inserts before using the controls. 1 Transfer at least 2 mL of control into a sample tube. Ensure the liquid level is at least 40 mm above the bottom of the tube.
  • Page 97 AUTION MAX AX-4030 OPERATING MANUAL Load the STAT and control rack into the sampler. 1 Hold the sample rack with the marker facing you and place it on the loading side of the sampler. • First, place the rack at the frontward of the loading...
  • Page 98 AUTION MAX AX-4030 OPERATING MANUAL Measure the controls. 1 Press to start. Ready for measurement • The STAT and control rack will be transported to 2006-01-09 13:15 the aspirating position while “ ” is Waiting for rack… Port No. displayed. 0001 Measurement No.
  • Page 99 AUTION MAX AX-4030 OPERATING MANUAL When control measurement is completed… • The STAT and control rack will be discharged to the unloading side of the sampler. REFERENCE: In the case that control measurement was carried out at the beginning or in course of normal measurement, normal measurement will start or resume at this point. 1 Remove the STAT and control rack from the sampler. 2-42 AX-4030...

  • Page 100: Check Measurement

    AUTION MAX AX-4030 OPERATING MANUAL Check Measurement If you suspect obtained results are inadequate, use the supplied check strips to examine the status of the instrument. The check strip container holds two gray strips and two white strips. Use a pair of white and gray strips for check measurement at a time.
  • Page 101 AUTION MAX AX-4030 OPERATING MANUAL Select the type of measurement. 1 Press the standby switch to turn on the power. Ready for measurement • Allow the instrument to warm up for about 2 2006-01-09 14:00 minutes until it puts itself on standby.
  • Page 102 AUTION MAX AX-4030 OPERATING MANUAL Prepare a white check strip. 1 Take a white check strip out of the container. White check strip • Keep the container handy for reference to the reflectivity after measurement. Reflectivity label Measure the first check strip (white).
  • Page 103 AUTION MAX AX-4030 OPERATING MANUAL • When check measurement is completed, the Check measurement obtained result will be reported on the screen. (5300) 2006-01-09 14:11 Measurement completed. 5 Press to print the result. Print ***** 2006-01-09 14:10 **** 6 Press to return to the screen.
  • Page 104 AUTION MAX AX-4030 OPERATING MANUAL 5 Press to start check measurement. Start • When check measurement is completed, the Start Go back obtained result will be reported on the screen. 6 Press to print the result. Print Check measurement (5300) 2006-01-09 14:16 Measurement completed.
  • Page 105 AUTION MAX AX-4030 OPERATING MANUAL Evaluate the results again. 1 Check the second result reports to see if the results fall within the range listed on the container label. If the results are: Within range: The instrument is working correctly. However, the check strips used for the first check measurement are abnormal.

  • Page 106: Displayed And Printed Reports

    AUTION MAX AX-4030 OPERATING MANUAL Displayed and Printed Reports This section describes what information the displayed and printed reports provide. REFERENCE: Any information including results and error lists is not printed out if the built-in printer is disabled (see “3.4.2 Enabling/Disabling the Built-in Printer” on page 3-8). 2.8.1 Displayed Results Report When at least one result is obtained by normal measurement,...

  • Page 107: Printed Results Report

    AUTION MAX AX-4030 OPERATING MANUAL 2.8.2 Printed Results Report During measurement of urine samples and controls, the instrument prints a results report each time it obtains a result by analyzing an individual sample or control. See the following figure for information on what the printed results report includes.
  • Page 108 AUTION MAX AX-4030 OPERATING MANUAL ■ Type of measurement There are 6 types of measurements as listed below. Measure Normal measurement Stat Port or rack STAT measurement Control-L Low-density control measurement Control-M Middle-density control measurement Control-H High-density control measurement Check Check measurement ■ Measurement number An assigned measurement number, from 0000 to 9999, appears.
  • Page 109 AUTION MAX AX-4030 OPERATING MANUAL 5. Results Obtained with the Test Strip Example *GLU OVER mg/dl !PRO 300 mg/dl ■ Abnormal mark Abnormal results obtained with the test strips are flagged with an asterisk (*) or exclamation mark (!). The exclamation mark flag has a higher priority than the asterisk flag.
  • Page 110 AUTION MAX AX-4030 OPERATING MANUAL 7. Specific Gravity (S.G.) ■ Abnormal S.G. mark Abnormal S.G. results are flagged with an asterisk (*). (Blank) Normal The GLU and PRO correction is beyond capability (their results are shown as “OVER”). The S.G. value falls out of the upper or lower thresholds set for the instrument. ■ Errors If an incorrect S.G. result is obtained, any of the following messages will be added. For more information, see “5.4.2 S.G.

  • Page 111: Abnormal Results List

    Error code (“E” and 3-digit number) or trouble code (“T” and 3-digit number), and ------------------------ its detailed information (3-digit number) 2005-01-11 12:40 T120 123 - 456 - 789 * The detailed information is to be used by ARKRAY servicemen. 2-54 AX-4030...

  • Page 112: Trouble List (Manual Report)

    001 - 002 - 395 2005-01-11 10:58 T214 143 - 234 - 512 2005-01-11 11:14 T220 015 - 024 - 035 2005-01-11 11:21 E122 011 - 302 - 400 * The detailed information is to be used by ARKRAY servicemen. AX-4030 2-55...

  • Page 113: Check Measurement Result Report

    AUTION MAX AX-4030 OPERATING MANUAL 2.8.6 Check Measurement Result Report Once check measurement has been completed, you can press to obtain a printed results Print report. Example Type of measurement CHECK Serial No.12345678 Measurement date and time 2006-01-10 14:10 ======================== 430[nm] 89.3%...

  • Page 114: List Of Current Parameter Settings

    AUTION MAX AX-4030 OPERATING MANUAL 2.8.7 List of Current Parameter Settings A list of the current parameter settings can be manually printed out. For instructions, see “3.5.3 Printing the Current Parameter Settings” on page 3-25. Example Product name and software version AX-4030 V01.00...
  • Page 115 AUTION MAX AX-4030 OPERATING MANUAL 2-58 AX-4030...
  • Page 116 AUTION MAX AX-4030 OPERATING MANUAL Auxiliary Chapter Operations 3.1 Menu Configuration ..........3-2 3.2 [Parameter settings] Menu ........3-4 3.2. Assigning the Type of Test Strips to the Item Racks......3-4 3.2.2 Using a Different Results Format ....3-4 3.2.3 Configuring the Measurement Numbering Method ...3-6 3.3 [Results] Menu ............3-8 3.3. Printing/Transmitting Results ......3-8 3.3.2 Reviewing Results/Editing IDs ....3-2 3.3.3 Deleting Results and Trouble Logs from Memory ...3-5...

  • Page 117: Menu Configuration

    AUTION MAX AX-4030 OPERATING MANUAL Menu Configuration This section describes the hierarchy of the menu system starting with the screen, and [Main menu] lists the lower-layer menu screens and the options accessible from these screens. ■ [Main menu] screen (No. 0000)
  • Page 118 AUTION MAX AX-4030 OPERATING MANUAL Options Description (default bolded) See page(s) 2300 View Allows you to view the results stored in memory. 3-2 Date: Specify a range of days. (today) Measurement: Normal & STAT measurements, Normal measurement, STAT measurement, Control measurement, Check measurement Results: A ll, Normal results only, Include abnormal results, Barcode misread Range of results: All, Measurement No., Port No., ID 2400 Delete Deletes results and trouble data from memory. 3-5 Measurement: All, Normal & STAT measurements, Control measurement, Check measurement, Trouble list ■ [Initial settings] screen (No. 3000)

  • Page 119: Parameter Settings] Menu

    AUTION MAX AX-4030 OPERATING MANUAL [Parameter settings] Menu 3.2.1 Assigning the Type of Test Strips to the Item Racks For successful use of the item racks, assign feeder 1 Rack assignment for test strip or 2 to each item rack (rack IDs #01 to #10) before...
  • Page 120 AUTION MAX AX-4030 OPERATING MANUAL 3 Press 2 to go to the screen. [Results display format] Parameter settings (1000) 2006-01-09 11:00 Rack assignment for test strip Results display format Measurement No. setup Select the results format for samples and controls. 1 Select the options by pressing the hyphen key.

  • Page 121: Configuring The Measurement Numbering Method

    AUTION MAX AX-4030 OPERATING MANUAL 3.2.3 Configuring the Measurement Numbering Method You can configure how measurement numbering is performed. [Measurement start No.] [Continue from previous batch] Assigns serial measurement numbers through batches. [Initialize for every batch] Resets the measurement numbering at the beginning of each batch. [Measurement No.] [Assign to samples] Assigns measurement numbers to samples. [Assign to ports] Assigns measurement numbers to all of the ports regardless of whether the ports have samples or not. IMPORTANT: When [Measurement No.] is set to [Assign to ports], the instrument skips one or more samples from the beginning of a batch depending on the set measurement start number.
  • Page 122 AUTION MAX AX-4030 OPERATING MANUAL 3 Press 3 to go to the [Measurement No. setup] Parameter settings screen. (1000) 2006-01-09 11:00 Rack assignment for test strip Results display format Measurement No. setup Set the measurement numbering method. 1 Select the options by pressing the hyphen key.

  • Page 123: Results] Menu

    AUTION MAX AX-4030 OPERATING MANUAL [Results] Menu The results obtained by measurement are stored in memory, and can be retrieved anytime as printed or displayed reports or external output data. If the memory becomes full, the oldest data is replaced with the latest one.
  • Page 124 AUTION MAX AX-4030 OPERATING MANUAL Select the results you want. 1 Select the results you want. This can be replaced with "Transmit (2200)". • See the table below for information on available Print options. (2100) 2006-01-09 11:01 • To select an option, press the hyphen key.
  • Page 125 AUTION MAX AX-4030 OPERATING MANUAL Specify a range of results. 1 Specify a range of results you want. [Measurement No.] setup For [Measurement No.]/[Port No.] • Enter the start number. Print • Press to go to the end number entry field.
  • Page 126 AUTION MAX AX-4030 OPERATING MANUAL Print (2100) 2006-01-09 11:02 <060108-001-00248> 2 Press Cancel • The results will be sent to the printer or external Print device. (2100) 2006-01-09 11:02 Printing... REFERENCE: If “Not found.” is displayed, there is no matching data in memory. Press to Please wait... return to the previous screen. AX-4030 3-...

  • Page 127: Reviewing Results/Editing Ids

    AUTION MAX AX-4030 OPERATING MANUAL 3.3.2 Reviewing Results/Editing IDs The results stored in memory can be reviewed on the screen. You can view all the results in turn or retrieve only results specified by type of measurement, type of results, and measurement number.
  • Page 128 AUTION MAX AX-4030 OPERATING MANUAL Specify a range of results. 1 Specify the range of results you want. [Measurement No.] setup For [Measurement No.]/[Port No.] • Enter the start number. View • Press to go to the end number entry field.
  • Page 129 AUTION MAX AX-4030 OPERATING MANUAL Display the results report. 1 Display the results on the screen. View • To modify the ID, go to step Date 2006-01-09 10:35 Kind NORMAL No. 0001 Po. 001-05 Strip 1: 9EB REFERENCE: A results report is displayed for a ID 000000000000000000 *PRO single sample at a time. To view the previous...

  • Page 130: Deleting Results And Trouble Logs From Memory

    AUTION MAX AX-4030 OPERATING MANUAL 3.3.3 Deleting Results and Trouble Logs from Memory Unwanted results and trouble logs can be deleted from the memory. You can delete all of the results and trouble information at once, or specific types of data only (normal and STAT measurement results, control measurement results, check measurement results, or trouble list).
  • Page 131 AUTION MAX AX-4030 OPERATING MANUAL Delete the data. 1 Press to delete the data from memory. Delete • The screen will appear again. [Results] (2400) 2006-01-09 11:00 Measurement 2 Press twice on the screen to return [Results] Go back [[Normal & STAT measurements to the standby screen.

  • Page 132: Initial Settings] Menu

    AUTION MAX AX-4030 OPERATING MANUAL [Initial settings] Menu 3.4.1 Setting the System Clock The internal system clock may not keep the right time after initially installing the instrument or a long period of disuse. Set the system clock to the exact time. The date and time that appear on the display and printed reports follow the system clock.

  • Page 133: Enabling/Disabling The Built-In Printer

    AUTION MAX AX-4030 OPERATING MANUAL System clock setup (3100) 2006-01-09 11:07 Date <05-10-11>(YY-MM-DD) Time <19:25> 3 Press to save your changes. • The screen will appear again. [Initial settings] Cancel NOTE: Keep the power on while saving the settings. 4 Press twice on the screen to return to the standby screen.
  • Page 134 AUTION MAX AX-4030 OPERATING MANUAL Enable or disable the printer. 1 Below , select using [Use/No use] [Use] [No use] Printer setup the hyphen key. (3200) 2006-01-09 11:00 Use/No use 2 Press [Use • A message window will open to ask if you want to save the new setting.

  • Page 135: Enabling/Disabling The External Output

    AUTION MAX AX-4030 OPERATING MANUAL 3.4.3 Enabling/Disabling the External Output The instrument has two data output terminals on the rear panel, which are disabled by default. When you connect external devices to these terminals, change the parameter setting to enable the external output.

  • Page 136: Controlling The Beeper Volume

    AUTION MAX AX-4030 OPERATING MANUAL Save your setting. 1 Press to save your setting. External output setup • The screen will appear again. [Initial settings] (3300) 2006-01-09 11:00 Use/No use [No use Save setting changes? NOTE: Keep the power on while saving the setting. 2 Press twice on the [Initial settings] screen Go back to return to the standby screen.
  • Page 137 AUTION MAX AX-4030 OPERATING MANUAL Select the level of the beeper volume. 1 Below , select the level of the [Beeper volume] Beeper volume setting beeper volume from 00 to 09. (3400) 2006-01-09 11:00 • Press to increase the volume level, and...

  • Page 138: Print] Menu

    AUTION MAX AX-4030 OPERATING MANUAL [Print] Menu You can obtain printed lists of trouble logs, abnormal results, and current parameter settings. NOTE: The printer does not work if it is disabled by key operations. For more information, see “3.4.2 Enabling/Disabling the Built-in Printer” on page 3-8. 3.5.1 Printing a Trouble List The trouble list is a history of errors and troubles. Up to 100 errors and troubles can be recorded.

  • Page 139: Printing The Abnormal Results List

    AUTION MAX AX-4030 OPERATING MANUAL System clock setup (3100) 2006-01-09 11:07 Date <05-10-11>(YY-MM-DD) Time <19:25> Print the trouble list. 1 Press to start printing. Cancel • The trouble list will be printed, starting with the Trouble list latest log. (4100) 2006-01-09 11:00 Printing...

  • Page 140: Printing The Current Parameter Settings

    AUTION MAX AX-4030 OPERATING MANUAL Print the abnormal results list. 1 Press 2 to print the abnormal results list. Print (4000) 2006-01-09 11:00 Trouble list Abnormal results list Parameter settings REFERENCE: The message “Not found.” will Abnormal results list appear if there is no matching data in memory. (4200) 2006-01-09 11:00 Press to return to the [Print] screen.
  • Page 141 AUTION MAX AX-4030 OPERATING MANUAL 3 Press 3 to go to the screen. [Parameter settings] Print (4000) 2006-01-09 11:00 Trouble list Abnormal results list Parameter settings Print a list of the parameter settings. 1 Press 1 to go to the screen.

  • Page 142: Maintenance] Menu

    AUTION MAX AX-4030 OPERATING MANUAL [Maintenance] Menu menu screen has 4 hardware maintenance options. This section describes the [Maintenance] procedure for the option only. For instructions for other options, see [4. Maintenance information] the respective pages in chapters 2 and 4. Options...
  • Page 143 AUTION MAX AX-4030 OPERATING MANUAL • The screen will appear, [Maintenance information] Maintenance information listing the last date that maintenance tasks were (5400) 2006-01-09 11:00 performed. S.G. calibration 2006-01-08 12:00 S.G. cell washout 2006-01-05 10:25 Clean washing bath and tray 2006-01-05 13:55...

  • Page 144: Maintenance

    AUTION MAX AX-4030 OPERATING MANUAL Chapter Maintenance 4.1 Frequency of Maintenance ........4-2 4.2 Daily Maintenance ............4-3 4.2. Cleaning the Waste Box ......4-3 4.2.2 Discarding Liquid Waste from the Drain Bottle......4-5 4.2.3 Cleaning the Feeders .........4-6 4.2.4 Cleaning the Test Strip Stopper ....4-8 4.2.5 Washing the Introduction Tray ....4-2 4.3 Replacement of Consumables ......4-15 4.3. Replacing the Washing Solution ....4-5 4.3.2 Replacing the Thermal Printer Paper ..4-7...

  • Page 145: Frequency Of Maintenance

    AUTION MAX AX-4030 OPERATING MANUAL Frequency of Maintenance The following table lists the maintenance tasks required at directed intervals. Wear protective gloves to prevent exposure to pathogenic microbes when performing maintenance tasks marked with a checkmark ( ). Discard liquid waste, used parts, and cleaning tools in accordance with local regulations for biohazardous waste.

  • Page 146: Daily Maintenance

    AUTION MAX AX-4030 OPERATING MANUAL Daily Maintenance 4.2.1 Cleaning the Waste Box Before starting the first batch of tests for the day, discard used test strips from the waste box and sterilize the box. The waste box can contain about 400 test strips. So, discard the test strips before the measurement count reaches 400.
  • Page 147 AUTION MAX AX-4030 OPERATING MANUAL Sterilize the waste box. 1 Sterilize the waste box with alcohol. 2 Rinse the box with water to remove dirt. 3 Wipe water off the surface. Install the waste box. 1 Hold the waste box tab facing forward, and place Two guides the box on the waste box tray.

  • Page 148: Discarding Liquid Waste From The Drain Bottle

    AUTION MAX AX-4030 OPERATING MANUAL 4.2.2 Discarding Liquid Waste from the Drain Bottle Liquid waste discharged from the instrument flows out to the external drain bottle. Discard the liquid waste to empty the bottle before starting the first batch of tests every day. The drain bottle can contain as much liquid as an amount discharged by about 600 measurements.

  • Page 149: Cleaning The Feeders

    AUTION MAX AX-4030 OPERATING MANUAL 4.2.3 Cleaning the Feeders Particles from the test strips can accumulate inside the feeders. This may cause the roller slot to clog or soil the reagent pad area of the test strips, whereby producing incorrect measurement results.
  • Page 150 AUTION MAX AX-4030 OPERATING MANUAL 2 Wearing protective gloves, grasp the test strips in the feeder, and take them out. 3 Wrap the test strips with tissue paper to protect the strips from dust. Clean inside of the feeder. 1 Blow dust off the roller using the blower brush.

  • Page 151: Cleaning The Test Strip Stopper

    AUTION MAX AX-4030 OPERATING MANUAL 4.2.4 Cleaning the Test Strip Stopper Particles from the test strips can accumulate on the test strip stopper located at the bottom of the feeders. This may cause running test strips to clog the stopper, consequently leading the measurement operation to stop with a trouble alert.
  • Page 152 AUTION MAX AX-4030 OPERATING MANUAL Open the covers. 1 Make sure both feeder covers are locked. Feeder protective cover 2 Open the maintenance cover. 3 Open the feeder protective cover. Feeder • The cover stops at a 120° angle. covers •...
  • Page 153 AUTION MAX AX-4030 OPERATING MANUAL 3 Slide the stopper in the direction of the arrow to Test strip stopper remove it from the feeder unit. NOTE: Be careful not to touch the nozzle while accessing the test strip stopper and roller. 4 Blow dust off the stopper using the blower brush. 5 Blow dust off the roller using the blower brush.
  • Page 154 AUTION MAX AX-4030 OPERATING MANUAL 8 Tighten the knurled screw to lock the test strip Knurled screw stopper. Test strip stopper Close the cover. 1 Stand the feeder unit straight up. Feeder unit • Once the feeder is standing up straight, press the feeder downward until the latch clicks and the unit locks in place.

  • Page 155: Washing The Introduction Tray

    AUTION MAX AX-4030 OPERATING MANUAL 4.2.5 Washing the Introduction Tray Particles from the test strips can accumulate on the introduction tray inside the instrument. Wash and sterilize the tray thoroughly every three days. This maintenance task can also be done in the course of transport tray cleaning that should be performed once in a week.
  • Page 156 AUTION MAX AX-4030 OPERATING MANUAL Tilt the feeder unit down to the right. 1 Tilt the feeder unit to the right. Feeder unit • The feeder unit is locked with the latch shown with the circles in the figure. So, first you need to pull the whole feeder unit to the right with a little force to open the latch.
  • Page 157 AUTION MAX AX-4030 OPERATING MANUAL Install the introduction tray. 1 Insert the introduction tray along the introduction Introduction arms arms in the grooves until the tray is sitting flat. 2 Slide the tray backward until the arrow marks are completely visible.

  • Page 158: Replacement Of Consumables

    AUTION MAX AX-4030 OPERATING MANUAL Replacement of Consumables 4.3.1 Replacing the Washing Solution When the instrument is getting low on washing solution, discard the remaining solution and refill the bottle with newly prepared solution. A maximum of about 600 measurements can be made with 2 L of washing solution.
  • Page 159 AUTION MAX AX-4030 OPERATING MANUAL Install the washing solution bottle. 1 Remove the sealing film from the washing solution bottle. 2 Cap the bottle and place it where it was. 4-6 AX-4030...

  • Page 160: Replacing The Thermal Printer Paper

    AUTION MAX AX-4030 OPERATING MANUAL 4.3.2 Replacing the Thermal Printer Paper Red lines appear along both edges of the thermal printer paper when the paper is near the end of the roll. Replace the paper roll as soon as possible. If warning “W009” occurs because of a paper shortage, immediately load a new paper roll.

  • Page 161: Regular Maintenance

    AUTION MAX AX-4030 OPERATING MANUAL Regular Maintenance 4.4.1 Washing the Air Filter The cooling fan of the instrument has an air filter that protects the internal mechanism from dust. Accumulation of dust in the filter results in decreased cooling efficiency.

  • Page 162: Washing The Transport Tray

    AUTION MAX AX-4030 OPERATING MANUAL 4.4.2 Washing the Transport Tray Particles from the test strips can accumulate and sample residue can crystallize on the transport tray as more urine tests are run. This may hinder smooth transportation of the test strips. Wash and sterilize the tray once a week to keep it clean.
  • Page 163 AUTION MAX AX-4030 OPERATING MANUAL • The nozzle will move to the designated position. Clean washing bath and tray (5200) 2006-01-09 11:02 Preparing for cleaning... Please wait... Turn off the power. 1 Turn off the power when prompted. Clean washing bath and tray...
  • Page 164 AUTION MAX AX-4030 OPERATING MANUAL Open the front cover. 1 Open the front cover to make the transportation section accessible. Front cover Take the transport tray out of the instrument. 1 Slightly slide the transport tray to the right to unlock Tray guides the tray guide.
  • Page 165 AUTION MAX AX-4030 OPERATING MANUAL Install the transport tray. 1 Place the transport tray horizontally inside the Tray guides instrument. 2 Insert the two tray guides into the slots at the left part of the tray, and slide the tray to the left.
  • Page 166 AUTION MAX AX-4030 OPERATING MANUAL Close the cover. 1 Stand the feeder unit straight up. Feeder unit • Once the feeder is standing up straight, press the feeder downward until the latch clicks and the unit locks in place. 2 Close the front cover (a), the side cover (b), feeder...

  • Page 167: Cleaning The S.g. Cell

    AUTION MAX AX-4030 OPERATING MANUAL 4.4.3 Cleaning the S.G. Cell The S.G. cell and flow lines become contaminated with protein or other matter as more urine tests are run. Remove the dirt once a week. It takes about 5 minutes to complete the cleaning.
  • Page 168 AUTION MAX AX-4030 OPERATING MANUAL 3 Press 1 to go to the screen. [S.G. cell washout] Maintenance (5000) 2006-01-09 11:00 S.G. cell washout Clean washing bath and tray Check measurement Maintenance information 4 Press to start washing. Start S.G. cell washout (5100) 2006-01-09 11:02 Set washing solution in STAT port.

  • Page 169: Cleaning The Washing Bath

    AUTION MAX AX-4030 OPERATING MANUAL 1 Press the “PUSH” mark on the STAT port backward to unlock the stopper, and then slide the port toward you. 2 Take the sample tube out of the STAT port. 4.4.4 Cleaning the Washing Bath The washing bath becomes contaminated as more urine tests are run.
  • Page 170 AUTION MAX AX-4030 OPERATING MANUAL 3 Press 2 to go to the [Clean washing bath and tray] Maintenance screen. (5000) 2006-01-09 11:00 S.G. cell washout Clean washing bath and tray Check measurement Maintenance information • The nozzle will move to the designated position. Clean washing bath and tray...
  • Page 171 AUTION MAX AX-4030 OPERATING MANUAL Clean the washing bath. 1 Wipe dirt off inside the washing bath and port using Washing port cotton swabs moistened with purified water. Washing bath Level detection sensors • Pay additional attention when cleaning the two level (Clean with great care.)

  • Page 172: Replacing The Washing Solution Filter

    AUTION MAX AX-4030 OPERATING MANUAL 4.4.5 Replacing the Washing Solution Filter The nozzle of the washing solution bottle has a stainless steel filter. A clogged filter may cause trouble with the flow line system. Replace the filter with a new one once a month.

  • Page 173: Replacing The Drain Pinch Valve Tubes

    AUTION MAX AX-4030 OPERATING MANUAL 4.4.6 Replacing the Drain Pinch Valve Tubes The tubes of the drain pinch valves wear out during long periods of use. If you find the tubes leaking, replace them with new ones. If trouble “T280” occurs due to leaks, replace the tubes immediately.
  • Page 174 AUTION MAX AX-4030 OPERATING MANUAL Replace the tubes. 1 Unhook the tubes. Replaceable tubes 2 Disconnect both ends of the tube from the joints. • One end should be removed from a T-joint. 3 Connect both ends of a new tube to the joints.

  • Page 175: Replacing The White Plate

    AUTION MAX AX-4030 OPERATING MANUAL 4.4.7 Replacing the White Plate If the white plate in the optical system is contaminated, incorrect measurement results may be obtained. If warning “W007” occurs, replace the white plate with a new one. Prepare: White plate and tweezers Turn off the power.
  • Page 176 AUTION MAX AX-4030 OPERATING MANUAL Remove the old white plate. 1 Slowly pull out the old white plate with a pair of tweezers. White plate Insert a new white plate. 1 Take a new white plate out of the bag with the tweezers and, without resting it anywhere, slowly insert the plate into the slot.

  • Page 177: Before/After Long Periods Of Disuse

    AUTION MAX AX-4030 OPERATING MANUAL Before/After Long Periods of Disuse 4.5.1 Preparing the Instrument Before Long Periods of Disuse When you intend not to use the instrument for a week or more, use the procedure below to clean each section. Failure to do that can cause fluid remaining in the flow lines to crystallize and consequently damage the instrument.
  • Page 178 AUTION MAX AX-4030 OPERATING MANUAL 2 Uncap the washing solution bottle and discard the remaining solution. 3 Rinse the bottle with purified water. 4 Fill the bottle with purified water and cap it. 5 Press the standby switch to turn on the power.
  • Page 179 AUTION MAX AX-4030 OPERATING MANUAL Turn off the power. 1 Make sure the standby screen is displayed, then Main power switch (rear) press the standby switch to turn off the power. 2 Press the OFF side of the main power switch to turn off the main power.

  • Page 180: After Long Periods Of Disuse

    AUTION MAX AX-4030 OPERATING MANUAL 4.5.2 Starting the Instrument Up After Long Periods of Disuse Use the following procedure to start up the instrument after 1 week or more of disuse. Prepare: Concentrated washing solution 3 (for AUTION MAX), and purified water Fill the washing solution bottle with the washing solution.
  • Page 181 AUTION MAX AX-4030 OPERATING MANUAL 4-38 AX-4030...

  • Page 182: When An Error Occurs

    AUTION MAX AX-4030 OPERATING MANUAL Chapter Troubleshooting 5.1 When a Warning Occurs ..........5-2 5.. From Warning Generation to Remedy ..5-2 5..2 Causes and Remedies .........5-3 W00 – W003 .... 5-3 W004 – W009 .....5-4 W00 – W0 .... 5-5 5.2 When an Error Occurs ..........5-6 5.2. From Error Generation to Remedy ....5-6 5.2.2 Causes and Remedies .........5-7 E0 – E04 ....5-7 E0 – E20 .

  • Page 183: When A Warning Occurs

    AUTION MAX AX-4030 OPERATING MANUAL When a Warning Occurs A warning occurs when the instrument is asking you to take action to enable measurement of more samples. For example, you may be requested to add test strips or to dispose of used test strips.

  • Page 184: Causes And Remedies

    AUTION MAX AX-4030 OPERATING MANUAL 5.1.2 Causes and Remedies Wear protective gloves to prevent exposure to pathogenic microbes before any operation that may expose you to samples. Discard used samples, test strips and protective gloves in accordance with local regulations for biohazardous waste.
  • Page 185 AUTION MAX AX-4030 OPERATING MANUAL W004 The waste box is full; empty the box. Or, strips cannot drop in the box; fit the box in the tray correctly and close the tray. Cause . The waste box is full of used test strips. 2. The waste box is not installed correctly or the waste box tray is open. Remedy . Pull out the waste box tray and discard the used test strips (see page 4-3). ↓ Press to clear the warning.
  • Page 186 AUTION MAX AX-4030 OPERATING MANUAL W010 Measurement cannot start. Perform S.G. calibration to enable measurement. Cause The existing S.G. calibration result was invalidated after the specified period of time elapsed since the last calibration. Remedy Press to clear the warning. ↓ Perform S.G. calibration to update the result (see page 2-34), and retry the tests. W011 The test strips are not sent out of the feeder correctly. To continue measurement, mix the test strips in the feeder.

  • Page 187: When An Error Occurs

    AUTION MAX AX-4030 OPERATING MANUAL When an Error Occurs An error occurs when there is something wrong with the power unit, memory, connections, or parameter settings. You will be notified of errors by beeps, and can determine the causes by displayed error codes.

  • Page 188: Causes And Remedies

    AUTION MAX AX-4030 OPERATING MANUAL 5.2.2 Causes and Remedies Wear protective gloves to prevent exposure to pathogenic microbes before any operation that may expose you to samples. Discard used samples, test strips and protective gloves in accordance with local regulations for biohazardous waste.
  • Page 189 AUTION MAX AX-4030 OPERATING MANUAL E110 Test strip pads error Cause . The setting of test strip type is wrong. 2. The feeder contains two or more types of test strips. 3. The test strips were not transported correctly. 4. The transport tray is dirty. Remedy . Press to clear the error. ↓ Make the correct setting for the type of test strips loaded into the feeder (see page 2-6). 2. Press to clear the error. ↓ O pen the feeder cover and remove the wrong types of test strips from the feeder, if there are any. 3. Press to clear the error. ↓ Load the test strips into the feeder correctly (see page 2-7). 4. Press to clear the error. ↓ Clean the transport tray (see page 4-9). E120 S.G. calibration failure Cause . No sample rack was placed in the sampler.
  • Page 190 AUTION MAX AX-4030 OPERATING MANUAL E130 Two-way communication error Cause The communication cable is not connected correctly to the external device. Remedy Press to clear the error. ↓ Securely connect the communication cable to both the instrument and host. E140 Test strip marker error Cause The test strip type detected from the strip marker and the test strip type setting do not match. Remedy Press to clear the error. ↓ Make the correct setting for the type of test strips loaded into the feeder (see page 2-6). ↓ Check the feeder contains the correct type of test strips, and remove the wrong types of test strips, if there are any. AX-4030...

  • Page 191: When Trouble Occurs

    AUTION MAX AX-4030 OPERATING MANUAL When Trouble Occurs Trouble occurs when the instrument encounters a serious problem with the ROM, optical unit, driving section or other hardware components. You will be notified of troubles by beeps and can determine the causes by the displayed trouble codes.

  • Page 192: T999

    AUTION MAX AX-4030 OPERATING MANUAL 5 Run the tests on the samples that could not be measured due to the trouble. 6 If the trouble persists, turn off the power and contact your distributor. REFERENCE: For information on the printed list of trouble codes reported when trouble occurs, see “2.8.4 Error and Trouble List” on page 2-54. For information on the printed list of errors and troubles that have occurred so far, see “2.8.5 Trouble List” on page 2-55 and “3.5.1 Printing a...
  • Page 193 AUTION MAX AX-4030 OPERATING MANUAL T210 Test strip introduction section drive trouble Cause . The transport tray or introduction tray is not installed correctly. 2. The test strips cannot be transported because the transport section is dirty or obstructed. Remedy . Press to clear the trouble. ↓ Install the tray correctly (see pages 4-2 or 4-9). 2. Press to clear the trouble. ↓ Clean the dirty transport tray, or remove the obstacles, if there are any. T211 Test strip transport section drive trouble Cause . The waste box is overflowing with used test strips. 2. The transport section did not work correctly. Remedy . Press to clear the trouble. ↓ Pull out the waste box and discard the used test strips (see page 4-3). ↓...
  • Page 194 AUTION MAX AX-4030 OPERATING MANUAL T221 A/D overflow Cause . The transport tray is not installed correctly. 2. T he waste box is overflowing with used test strips that are blocking the measurement light and the optical unit movement. 3. The test strip was not placed correctly in the optical unit. 4. The white plate is dirty. Remedy . Press to clear the trouble. ↓ Install the transport tray correctly (see page 4-9). 2. Press to clear the trouble. ↓ Pull out the waste box and discard the used test strips (see page 4-3). ↓ R emove the test strips or other obstacles that are blocking the measurement light and the optical unit movement. 3. Press to clear the trouble. ↓ Install the transport tray correctly. ↓ R emove the obstacles that are blocking the measurement light and the optical unit movement. ↓ Remove the test strips scattered on the analysis section. 4. Press to clear the trouble.
  • Page 195 AUTION MAX AX-4030 OPERATING MANUAL T223 Optical unit undetected marker Cause . The transport tray is not installed correctly. 2. T he test strips could not be transported to the optical unit. Or the test strips could not be placed on the optical unit correctly. 3. T he waste box is overflowing with used test strips that are blocking the measurement light and the optical unit movement. Remedy . Press to clear the trouble. ↓ Install the transport tray correctly (see page 4-9). ↓ Remove the test strips scattered on the analysis section. 2. Press to clear the trouble. ↓ Remove the test strips scattered on the analysis section. 3. Press to clear the trouble. ↓ Pull out the waste box and discard the used test strips (see page 4-3). T230 Feeder drive trouble Cause . D amaged or wrong type of test strips are loaded in the feeder. Or, test strip waste has...
  • Page 196 AUTION MAX AX-4030 OPERATING MANUAL T241 Sampling trouble Cause . C onsecutive sample containers had an insufficient volume of sample: less than 2 mL or a level lower than 40 mm. 2. T he sample container in the STAT port has an insufficient volume of washing solution for cleaning the S.G. cell. Remedy . Press to clear the trouble. ↓ M ake sure the sample tubes each contain at least 2 mL of sample and the sample level is at least 40 mm above the bottom of the tube, and retry measurement. 2. Press to clear the trouble. ↓ M ake sure the sample tube contains at least 2 mL of washing solution and the liquid level is at least 40 mm above the bottom of the tube, and retry cleaning operation. T250 S.G. hydrometer trouble Cause The S.G. hydrometer is not connected correctly. Remedy Press to clear the trouble. ↓...
  • Page 197 AUTION MAX AX-4030 OPERATING MANUAL T270 Measurement lever drive trouble Cause . A sample rack was forced into the sampler. 2. The measurement- or return-side lever of the sampler did not work correctly. Remedy . Press to clear the trouble. ↓ Take the sample racks out of the sampler. 2. Press to clear the trouble. ↓ Check the sampler. If the sampler is damaged, turn off the power and contact your distributor. T271 Return lever drive trouble Cause . A sample rack was forced into the sampler. 2. The measurement- or return-side lever of the sampler did not work correctly. Remedy . Press to clear the trouble. ↓ Take the sample racks out of the sampler. 2. Press to clear the trouble. ↓ Check the sampler. If the sampler is damaged, turn off the power and contact your distributor. T272...

  • Page 198: Measurement-Related Messages

    AUTION MAX AX-4030 OPERATING MANUAL Measurement-Related Messages This section lists the messages that can possibly appear on the printed results reports and abnormal results lists when incorrect results are obtained. 5.4.1 Results-Related Errors (Printed Results Reports: on the lowest line) The instrument cannot produce any results when measuring abnormal samples such as drug- administered or dense turbid urine.
  • Page 199 AUTION MAX AX-4030 OPERATING MANUAL Excess reflectivity Description The reflectivity for a measurement item exceeded 20%. * The result will be obtained regardless of this error. Cause . The instrument measured a test strip other than that set by key operation. 2. The instrument measured an abnormal sample (e. g. drug-administered urine). Remedy . M ake the correct settings for the type of test strips to be loaded into the feeder (see page 2-6). ↓ Load the correct test strips into the feeder (see page 2-8). ↓ Measure the sample again. 2. Check to see if the sample is of acceptable quality for the instrument. ↓ If the sample is acceptable, retry measurement. Test strip out-of-position Description The test strip is placed out of the correct position. Cause The test strip was not properly positioned in the optical unit. Remedy Pull out the waste box tray and discard the used test strips (see page 4-3). ↓ Make sure the instrument is not in operation, then press the standby switch to turn off the power. ↓ Pull out the transport tray. ↓...

  • Page 200: Measurement-Related Errors (Printed Results Report: S

    AUTION MAX AX-4030 OPERATING MANUAL 5.4.2 S.G. Measurement-Related Errors (Printed Results Report: S.G.) This section lists the error messages that may be added below the “S.G.” line of the printed results report (see page 2-50) if incorrect S.G. results are obtained. When you encounter a message of this kind, see the table below to solve the problem.

  • Page 201: Turbidity Measurement-Related Errors (Printed Results Report: Turb)

    AUTION MAX AX-4030 OPERATING MANUAL 5.4.3 Turbidity Measurement-Related Errors (Printed Results Report: TURB) This section lists the error messages that may be added to the “TURB” line on the printed results reports when incorrect turbidity results are obtained. See the tables below to solve the problem. If the error persists, contact your distributor.

  • Page 202: Measurement Error

    AUTION MAX AX-4030 OPERATING MANUAL Measurement error Description A measurement error occurred. Cause . Measurement was not made on this sample. * T his error occurs when the instrument is configured to skip measurement when a barcode is misread. 2. Light intensity varied during measurement. 3. The reflectivity of a measurement items exceeded 20%. 4. The test strip is out of the correct position. 5. Sampling failed. Remedy . See “Skipped” on page 5-7. 2. See “Reflection light intensity drift” on page 5-7. 3. See “Excess reflectivity” on page 5-8. 4. See “Test strip out-of-position” on page 5-8. 5. See “Abnormal sampling” on page 5-8. Abnormal data Description Abnormal colors were developed on one or more reagent pads on the test strip. Cause Abnormal colored urine was measured, or the obtained result includes abnormal data. Remedy Check the sample.

  • Page 203: Under

    AUTION MAX AX-4030 OPERATING MANUAL If This Happens 5.5.1 If the Instrument Does Not Start Up (Replacing Fuses) If the instrument does not start up after turning on both the main power switch (rear panel) and standby switch (front panel), it is possible that a fuse has blown. The instrument has a pair of fuses that can be accessed and replaced from the rear panel.
  • Page 204 AUTION MAX AX-4030 OPERATING MANUAL Remove the old fuse. 1 Put the tip of your finger under the tab at the bottom of the fuse holder, and pull the holder frontward. 2 Push the top of the fuse holder to rotate it frontward.

Table of Contents

Save PDF
