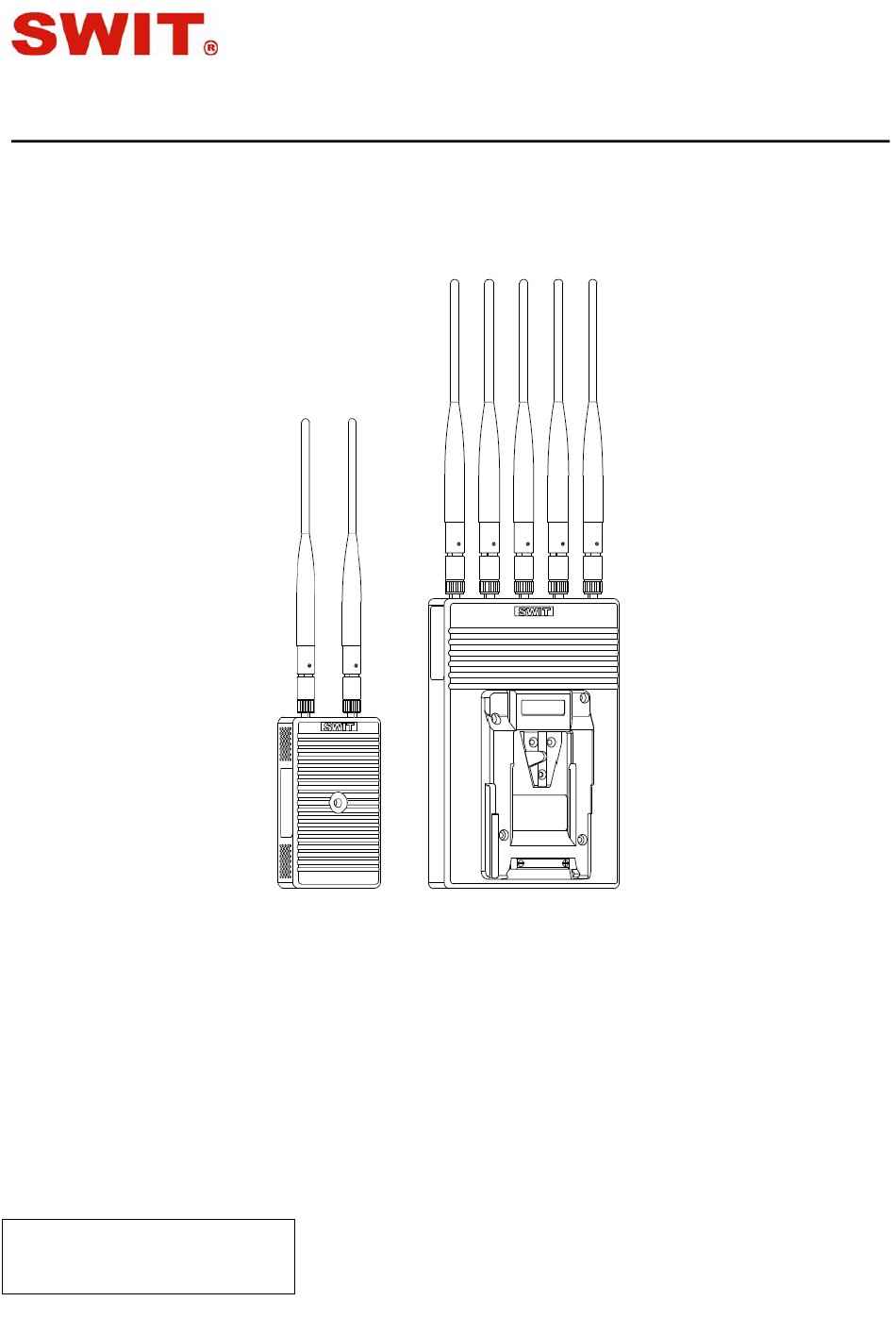

- Page 1 Model: S-4914T/R Wireless HD Transmission System User Manual Please read this User Manual throughout before using.
- Page 2 1． All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2． All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners.
-
Page 3: For Your Safety
For Your Safety Before start, please follow the safety precautions below Do not try the followings: 1. Unauthorized repairs or parts replacement or other operations. 2. Inappropriate placement including but not limited to lighting, fire, exposure to rain, water or gas. 3. -
Page 4: Product Introduction
◆ Encryption Support AES 128-bit encryption to protect the transmission. ◆ Battery plate optional User can choose various DV battery plates for S-4914T transmitter and Gold mount or V-lock mount for S-4914R receiver. ◆ All-Metal Shell Both the transmitter and receiver adopt metal shell which is durable and solid. -
Page 5: Product Instruction
3. Product Instruction Transmitter S-4914T Front view Rear view ⑴ Antenna ⑵、⑶ Installation thread： 1/4”-20 thread. Use the package supplied articulating arm trestle to install the device to the camera. ⑷、⑸ LED status indicators: Including Power, Video Signal and Wireless connection condition indicators ⑹... - Page 6 Receiver S-4914R Front view Rear view ⑴ Antenna ⑵ Power installer：V-mount or Gold mount lock for optional. To power through the same battery mounted on the monitor. ⑶ 1/4”-20 threaded hole. ⑷ RSSI：Wireless received signal strength indicator ⑸、⑹ LED status indicators: Including Power, Video Signal and Wireless connection condition indicators ⑺...
-
Page 7: Build Connection
⑹ When S-4914R detect the recognizable video signal, ”Video”indicator will light and OSD will dispappear. Remark: S-4914T support SDI input and HDMI input, and it will automatically detect the connected signal input. If both SDI and HDMI are connected, S-4914T will give priority to transmit SDI signal. - Page 8 6. How to get the best effect of wireless transmission ⑴ Set the antennas of S-4914T and S-4914R as below Fig2 and Fig 3 to extend the transmission distance and achieve stable transmission quality. Fig2 Fig3 ⑵ Set the receiver S-4914R as high as possible like Fig 4.
-
Page 9: Optional Battery Plate
S-4914R provides V-mount or Gold mount two-sided plates for installing between monitor and battery,so that the battery can power the monitor and S-4914R simultaneously. Gold mount V-mount Note: The battery plates are fixed on S-4914T and S-4914R at factory, please specify the suitable plate type before purchase. -
Page 10: Troubleshooting
The transmission distance is out of Try the wireless transmission at a closer effective range or being interfered by distance or clean out the obstacles obstacles. 9. Specifications Model Transmitter S-4914T Receiver S-4914R 3G/HD/SD-SDI×1, HDMI×1 Input Output 3G/HD/SD-SDI×1, HDMI×1 SMPTE-425M 1080p (60 / 59.94 / 50) -
Page 11: Packing List
10. Packing List Transmitter S-4914T×1 Receiver S-4914R×1 Antenna×10 Articulating arm trestle×1 Crab clamps×1 D-tap to 5.5/2.1mm pole cable×1 5.5/2.1mm pole power adaptor×1 Power cable×1 Flat Screwdriver×2 Warranty card×1 Note:S-4914 is equipped with 7 antennas,and the other 3 are used for standby. - Page 12 Product Registration Link...
