Quincy Compressor QT Series Instruction Manual page 21

Connect incoming power line at this screw terminal.
Splice incoming power line connection
to this white wire (wrapped in red tape).
SQUARE D PRESSURE SWITCH
FURNAS / HUBBELL PRESSURE SWITCH
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
the unit.

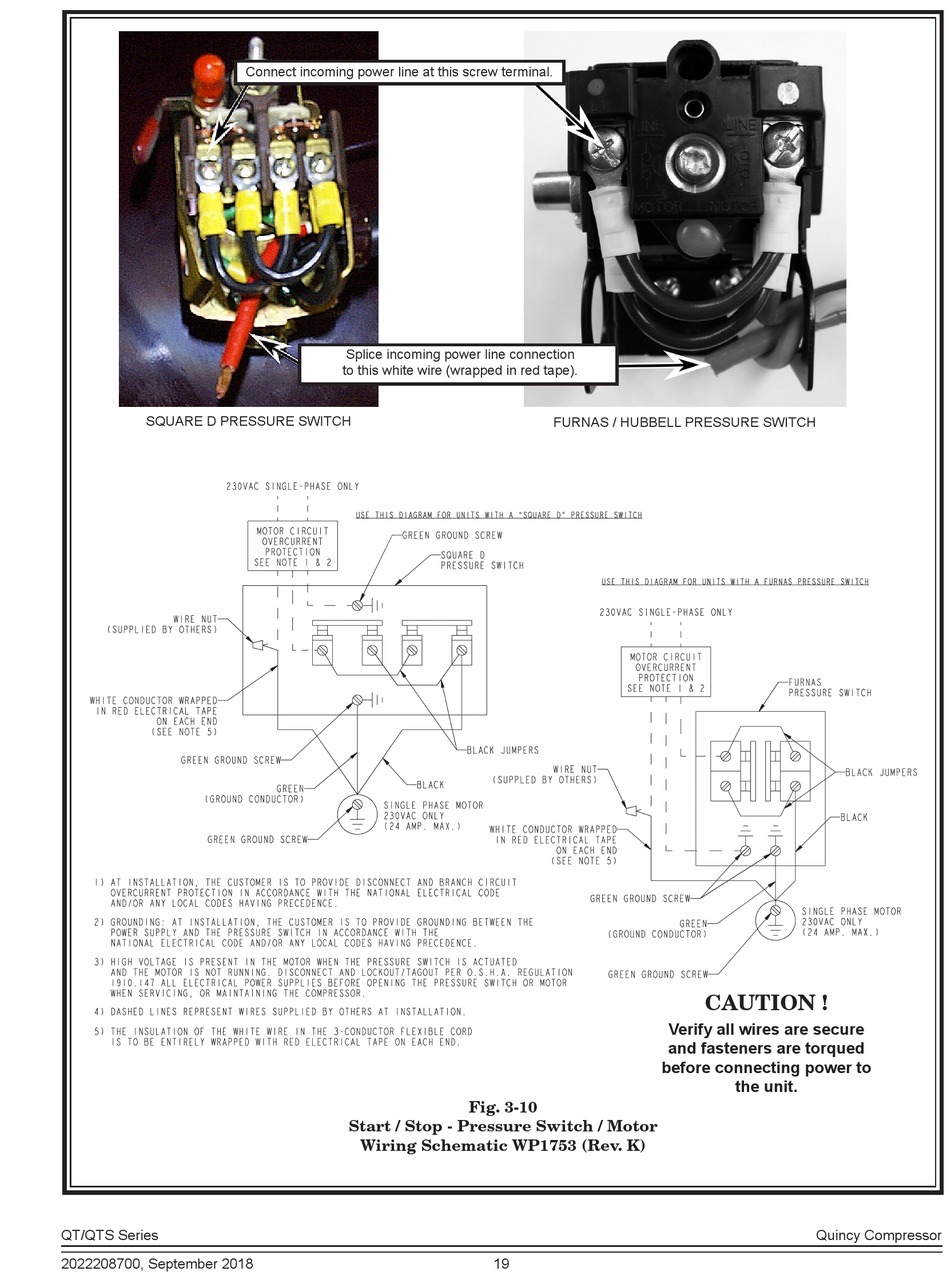

Start / Stop Control - Pressure Switch / Motor
Fig. 3-10
Wiring Schematic WP1753 (Rev. K)
Start / Stop - Pressure Switch / Motor
Wiring Schematic WP1753 (Rev. K)
