1. Turn the switch handle to "OFF" position.
2. Remove small screws on side of the cover.
3. Pull the cover away from the pressure switch.
1. Make sure the switch handle is in the "OFF"
2. Carefully slide the cover over the pressure
3. Re-install the small cover screws and tighten.
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
At Installation, the customer is to provide:
Disconnect and branch circuit overcurrent protection and
grounding between the power supply and the electrical
control enclosure in accordance with the National Electrical
Code (NEC), the Canadian Electrical Code (CEC) and / or
any local codes having precedence.

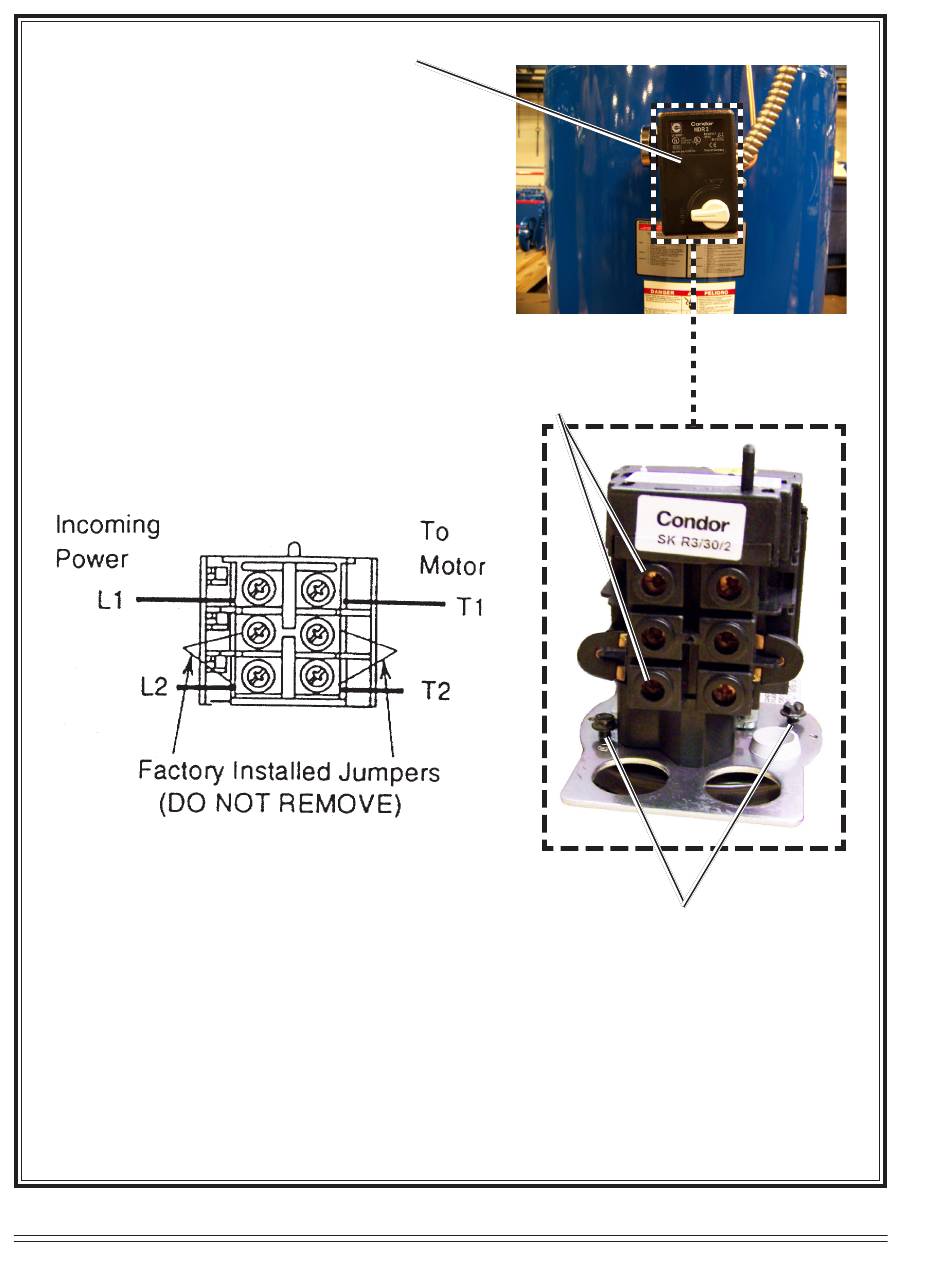

Single Phase Condor Combination Pressure Switch / Overload Relay
QT/QTS Series
2022208700, September 2018
Pressure Switch
To Remove the Cover:
To Re-install the Cover:
position (as shown).
switch.
DO NOT FORCE!
the unit.
Wired to an 1800 RPM Motor
Connection Diagram
Connect incoming power lines
at screw terminals L1 & L2.
Connect ground wires.
Fig. 3-9
